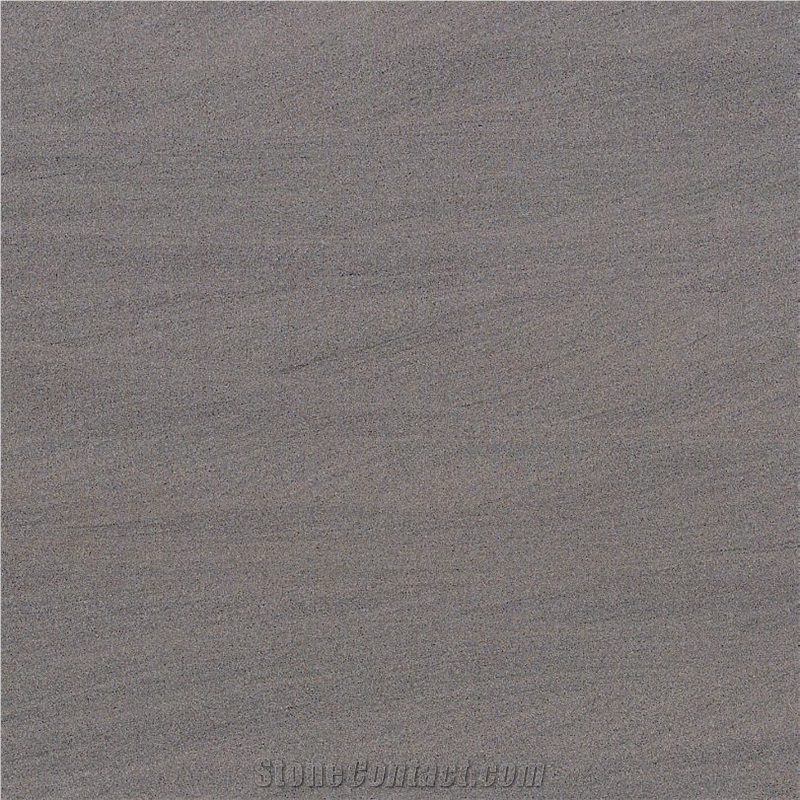

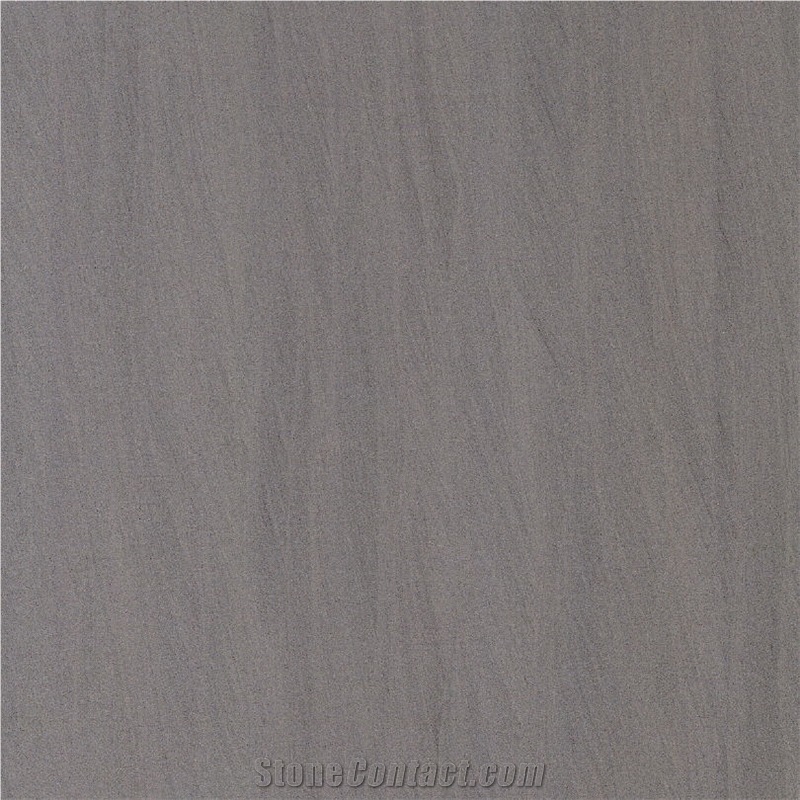

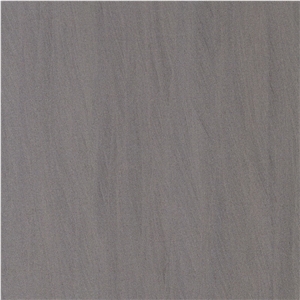

Arenisca Gris Pinar

PETROGRAPHIC DESCRIPTION (UNE-EN 12407:2007) Grey tone. Medium grain and high compactness. Sandstone (sedarenite).
TECHNICAL ESSAYS RESULTS
(UNE-EN 1936:2007) 2500 kg/m3 Apparent density
(UNE-EN 1936:2007) 5,8 % Open porosity
(UNE-EN 12372:2007) 8,0 MPa Flexural strenght
(UNE-EN 1926:2007) 124 MPa Compressive strenght
(UNE-EN 13755:2008) 2,6 % Water absorption at atmospheric pressure
(UNE-EN 1341:2002) 17,5 mm Abrasion resistance
(UNE-EN 12371:2011) 8,1 MPa Frost resistance: Flexural strenght after 12 cycles
(UNE-EN 12371:2011) 9,0 MPa Frost resistence: Flexural strenght after 48 cycles
(UNE-EN 14066:2003) -0,04 % Thermal sock resistence. Mass variation
(UNE-EN 13364:2002) 1050 N Breaking load at a dowel hole. Thecnological test. Thickness
(UNE-EN 13364:2002) 750 N Breaking load at a dowel hole. Identification test
(UNE-EN 14231:2004) 84 / 78 USRV Slip resistance Dry test / Wet test
(UNE-EN 1925:1999) 13,1 g/m2·s0,5 Water absorption
* The values shown in this sheet are average values of the test reports
The request includes: 1. surface finished, size 2. quantity required
