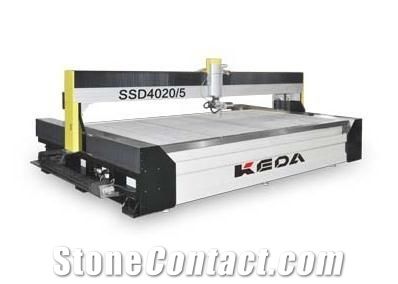

Five axis NC Water Jet Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone
Supplier
Eatablished :Dec 31,1991
Main Product:
Ceramic Machinery, Clean Energy, Stone Machinery, Bricks Machinery, Hydraulic Pump, EPC|
Machinery Function Features
A.Adopts SIEMENS energy-saving motor to have lower energy consumption.
B.Adopts supercharger assembly and accumulator imported from America, which warranty for 30000 hours.
C.Adopts Germany REXROTH variable displacement piston pump and valve to save the energy and ensure the safety & reliability.
D.Adopts imported high pressure line to ensure the safety and reliability.
E.Adopts YASKAWA servo system to ensure the cutting precision.
F.Equipped with automatic lubrication system.
G.Equipped with the malfunction protection and automatic stop function.
H.The water tank and grating is made from stainless steel.
I.Adopt the self-suction sand supplying system.
J.Adopts 19 inch industrial computers with hand shank, easy to operate.
K.Adopts famous CNC system to have convenient composing and high intelligence.
Technical Data
Parameters |
Unit |
SSD4020/5 |
Machine height (H) |
mm |
1900 |
Y-axes travel |
mm |
2000 |
X-axis travel |
mm |
4000 |
Machine length (L) |
mm |
5300 |
X - Y axis displacement speed |
m/min |
9 |
Machine width (W) |
mm |
3000 |
Z-axes travel |
mm |
125 |
Rotation angle A-axis |
° |
±10° |
Waterjet pump capacity |
l/min |
4 |
Waterjet max pressure |
bar |
0-4000 |
Total installed power |
kW |
42 |
Rotation angle B-axis |
° |
±10° |
