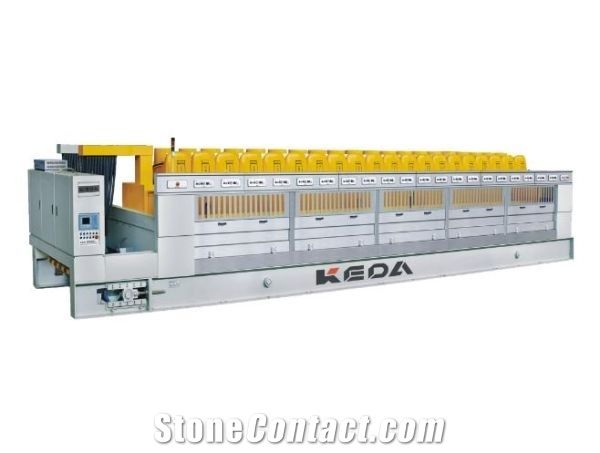

Polishing machine for granite

Name: Polishing machine for granite
Brand: KEDA CLEAN ENERGY CO., LTD.
SKU: 1014
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite

Supplier

KEDA CLEAN ENERGY CO., LTD.

KEDA

China

Eatablished :Dec 31,1991

Main Product:

Ceramic Machinery, Clean Energy, Stone Machinery, Bricks Machinery, Hydraulic Pump, EPC|

Contact supplier

Start Order

You may also like

Automatic Polishing Line Machine For Natural And Artificial Stone Slab

ZDMJ-12C/16C/20C Automatic Polishing Machine For Mable

Granite Auto Polishing Line Machine For 1.3M Width

ZDM-1200 Automatic Polishing Line Machine For Granite Slabs

Line Polishing Machine For Kerbstone

Product Detail
Company Profile

Overview

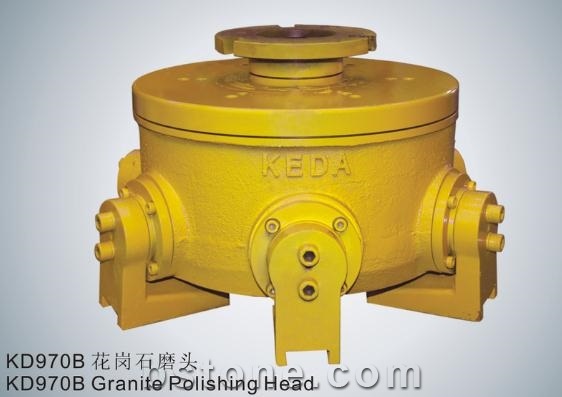

Components

Machinery Function Features

1、This product polishes the surface of granite slabs. 2、It has a new design with fully automatic and continuous grinding and polishing heads.It uses the most advanced,multiple patented polishing technology. 3、The machine is characterized by high-quality material,rational structure,perfect processing technique,sconveyor capability,high efficiency and energy savings. 4、It uses imported brand name electric parts.PLC controls and a liquid crystal display screen menu offer intelligent control. 5、The photoelectricity inspecting unit is installed at the loading end for auto checking of slab profile. 6、With alarm system for abrasive check.

Technical Data

Parameters	Unit	SMH80D/16	SMH120C/16	SMH120D/12	SMH160D/16	SMH160C/20	SMH210C/16	SMH210C/20	SMH210D/6
Machine overall height	mm	2371	2371	2210	2350	2350	2350	2350	2190
Beam crosswise movement speed	mm/min	9000~20000	12000~31000	9000~29000	20000~45000	20000~45000	20000~60000	20000~60000	20000~60000
Slabs max. processable thickness	mm	30	50	50	50	50	50	50	50
Machine overall length	mm	12540	11540	9140	11110	13110	11110	13110	6440
Total installed electrical power	kW	193.24	254.24	143.74	190.24	321.24	261.24	328.24	75.87
Conveyor system forward speed	mm/min	500~2000	500~2000	500~2000	500~2000	500~2000	500~2000	500~2000	500~2000
Slabs max. processable width	mm	300~850	800~1250	800~1250	800~1650	800~1650	800~2100	800~2100	800~2100
Machine overall width	mm	2661	3061	3080	3379	3379	3879	3879	3890
Slabs min. processable thickness	mm	8	10	10	10	10	10	10	10
