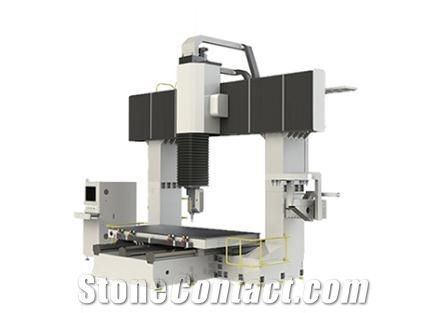

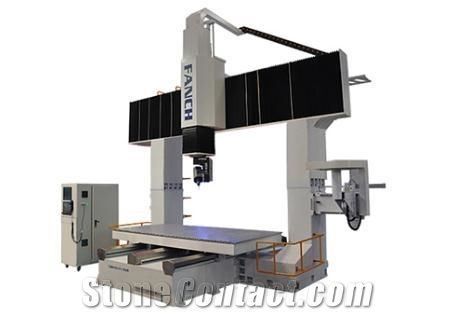

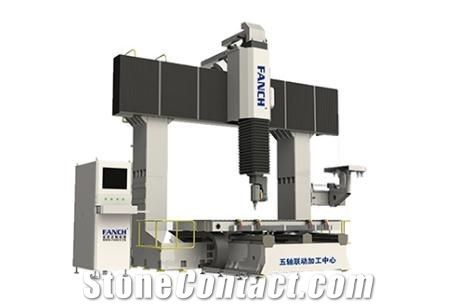

Five Axis CNC Machining Center
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Artificial Stone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Oct 31,2007
Main Product:
Cnc Router, Cnc Stone Engraving Machine, Cnc Laser Cutting Machine, Cnc Machining Center, Special Edge Shaping Machine, 3d Statues Engraving Machine|
Machinery Function Features
Machine Bed: High-quality seamless welding steel structure
Assembly Contact Surface: Scraping process
Machine Structure: High-temperature aging treatment, and upright, support plate, using aluminum cast process to ensure high stability
Spindle: Italy HSD HS655 12.0KW air-cooling ATC
Tool Holder: Italy HSK F63
Tool Magazine: Carousel 8 Positions
Inverter: Taiwan Delta
Drive & Motor: Japan YASKAWA bus absolute servo
Control System: Taiwan SYNTEC 5 axis linkage (RTCP function), can compatible with lots of CAD/CAM design software
Linear Guide Rail: Taiwan PMI automatic lubrication high precision 30mm square linear (X/Y axis), Taiwan 25mm linear rail (Z axis)
Ball Screw: Taiwan TBI C3 (X/Y/Z axis), high precision, screw rod is very precise when processing
Working Table: Heavy duty table moving, T-slot with clamps
Transmission: Taiwan TBI C3 precise ball screw
Electrical Components: French Schneider, Taiwan AirTAC
Technical Data
Parameters |
Unit |
FC-5AIX 2613 |
Working voltage |
AC 380V/3Phase/50Hz |
|
C axis inclination (degrees) |
° |
210° |
Tool-holder spindle rotation speed |
rpm |
24000 |
A axis rotating (degrees) |
° |
120° |
Z axis stroke |
mm |
950 |
Tool-holder spindle motor power |
kW |
12 |
Y axis stroke |
mm |
3040 |
Machine overall length |
mm |
5400 |
Max. working speed |
m/min |
20 |
X axis stroke |
mm |
1720 |
Position accuracy |
mm |
±0.05/300 |
Running speed |
m/min |
40 / 60 / 15 |
Machine overall width |
mm |
2200 |
Approx. Weight |
Kg |
9200 |
Machine overall height |
mm |
5000 |
Max. working length |
mm |
1300 |
Dimensions of the work table (length x width) |
mm |
1230*2440 |
Max. working width |
mm |
2600 |
