Wire saw machine for Granite/marble quarry 37kw/45kw/55kw

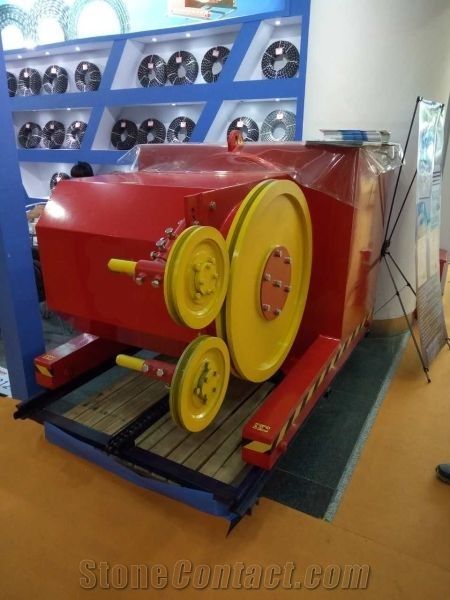

Diamond wire saw machine for quarry      This machine combine domestic and overseas advantages to developed. The main motor use transducer control step less speed regulation. Walking also control by transducer speed regulation wide range.and with brake overload protect and have different start moment. Machine low failure rate, stable performance, high efficiency and so on , it is the mine over best quarry equipment . NO. KSJ7.5-700 (marble) KSJ11-700 (marble) KSJ22-800 (marble) KSJ30-800 (marble) KSJ37-800 (marble) KSJ45-800 (marble) KSJ37-800 (granite) KSJ45-800 (granite) Diamond wire diameter ф8-ф10mm ф8-ф12mm ф8-ф12mm ф8-ф12mm ф8-ф12mm ф8-ф12mm ф8-ф12mm ф8-ф12mm Length of wire 15-30M 15-50M 15-100M 15-120M 15-150M 15-150M 15-150M 15-150M Main motor power 7.5KW 11KW 22KW 30KW 37KW 45KW 37KW 45KW The change way for wire wheel Manual 360 。 Electric 360 。 The length of guide rail 3 X 2M 3 X 2M 3 X 2M 3 X 2M 3 X 2M 3 X 2M 3 X 2M 3 X 2M Water consumption 3m3 /h 4m3 /h 6m3 /h 8m3 /h 10m3 /h 10m3 /h 10m3 /h 10m3 /h Gross weight 900kg 1300kg 2200kg 2500kg 2800kg 3200kg 3500kg 3800kg
