Mining stone block cutting machine

FOB Price:

Type: Stone Quarry MachinesDouble Blade Mining Machine
Usage: Granite, Marble
After-Sale
Warranty:6 Months

Supplier

Eatablished :Mar 24,2003

Main Product:

Multiple Blades Brige Stone Cutting Machine, 3D CNC Stone Cutting Machiine, Infra Red Stone Cutting Machine, Stone Coping Machine, Multiple Autoo Slab Polishing Machine|

Contact supplier

Start Order

  • Overview
Machinery Function Features

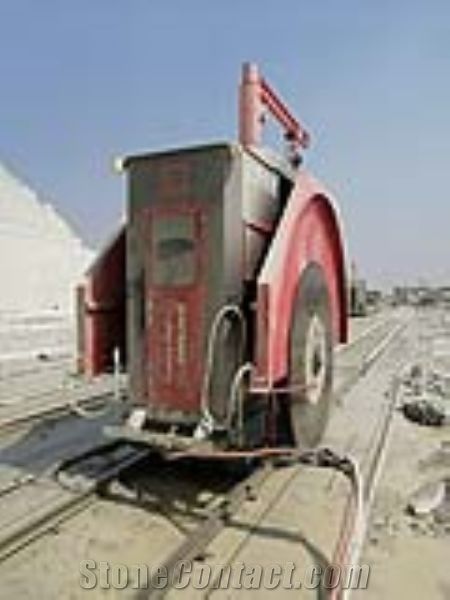

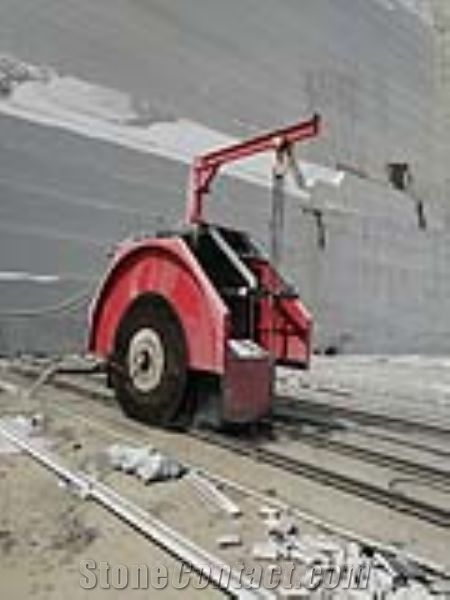

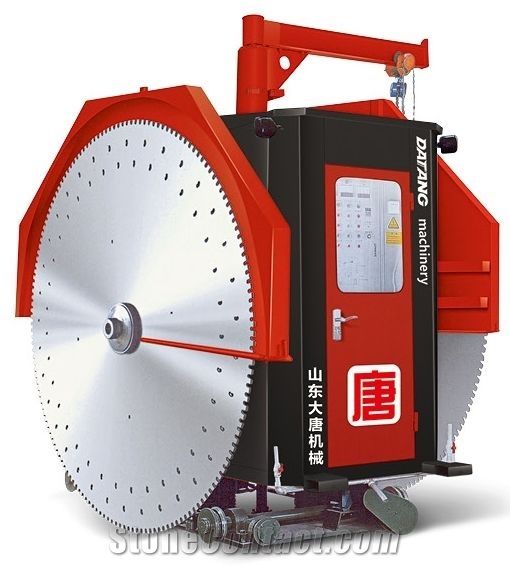

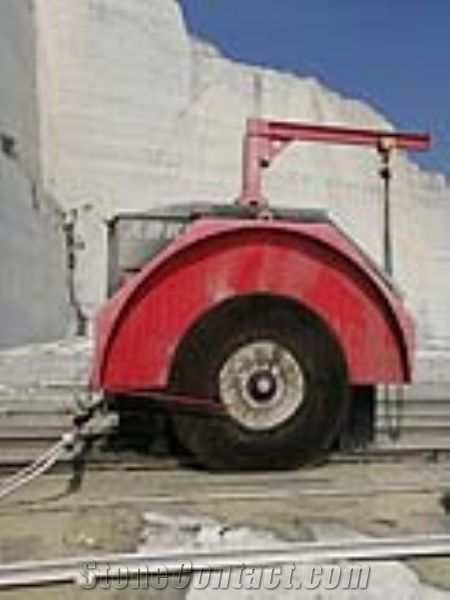

The DTAKSJ-3000 3600 quarry mining stone block cutting machine is the successful development of the domestic stone blocks mining machinery in Laizhou Datang machinery. It uses the electric motor as the power to drive the saw blade to rotate in orbit, cut into the rock. With auxiliary equipment ,It will achieve to cut the stone block without blasting and thermal cutting way to exploit block. By its application, overcome high quarry mining costs , unsafe, waste of resources, environment pollution problems than traditional mining exploiting way High working efficiency and high economic profit: It will exploit 200 cubic meters stone block in 24 hours, the cost is 14 usd per cubic meter. It’s only 40% of the cost than traditional blasting exploiting way.. High safety performance: Using the new block exploiting way of stone block cutting machine without detonator explosives, both to ensure the safety of the work site, but also to avoid the detonator explosives into the community, effectively eliminating the security risks.
Technical Data
Parameters
Unit
DTAKSJ-3000/3600
Power of Main Motor
kw
55
Center Distance of blades
mm
1360-1900
Dimension LxWxH
mm
3550×1450×3100
Diameter of Blade
mm
2200-3600
Max. Cutting Depth
mm
850-1550
Blades moving speed
mm/min
0-40
Gross Weight
Kg
8000-10000
Water Consumption
m3/h
5
Total Power
kw
118.5
