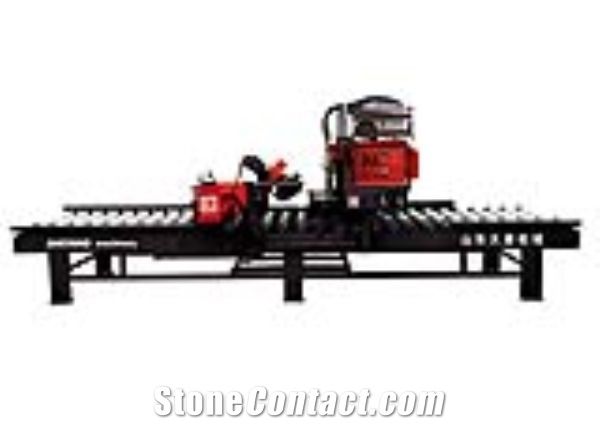

Automatic Flat Slab Flaming Jet Processing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Stone Flaming Machine
Usage:
Granite, Marble
After-Sale
Warranty:6 Months
Machinery Function Features
1.220 V power supply, the working place is not restricted.
2.Cleaning drying system, Keep slab surface cleaning and reduce the gas consumption.
3.The automatic identification of slab thickness of the gas jet nozzle.
4.Acceleration passing function if no slab go through, to avoid the gas waste burn if no slab to process.
5.Move backward function without artificial force.
6.Delivery speed, the swing speed can be adjusted according to processing slab material at any time .
7.Roast torque with flame return prevention device, safety and energy saving.
8.Roast torque fit external adjustable switch, flaming adjust with easy.
9.Gear transfer, slab running stability, processing of slab surface is more uniform appearance.
10.Three flaming return prevention device, ensure use safety.
Technical Data
Parameters |
Unit |
DTAHS-600 |
DTAHS-800 |
DTAHS-1000 |
Production efficiency |
m/h |
240 |
240 |
240 |
Machine overall length |
mm |
5000 |
5000 |
5000 |
Approx. Weight |
Kg |
1000 |
1200 |
1800 |
Max. working thickness |
mm |
15-100 |
15-100 |
15-100 |
Power |
V |
220 |
220 |
220 |
Main motor power |
kW |
2 |
2.5 |
3 |
No. of fire head |
nr |
11 |
15 |
26 |
Machine overall height |
mm |
1800 |
1800 |
1800 |
Slab moving speed |
m/h |
1-80 |
1-80 |
1-80 |
Machine overall width |
mm |
1200 |
1400 |
1900 |
Nozzle swing speed |
m/h |
0-70 |
0-70 |
0-70 |
Max. working width |
mm |
660 |
900 |
1560 |
