Bridge Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Bridge Polishing Machine for Slabs
Usage:
Granite, Marble
Supplier
Eatablished :Oct 14,2008
Main Product:
Artificial Quartz Stone Production Line, Solid Surface Production Line, Artificial Stone Machinery, Solid Surface Machinery, Artificial Stone Make Machine, Stone Polishing Machine|
Machinery Function Features

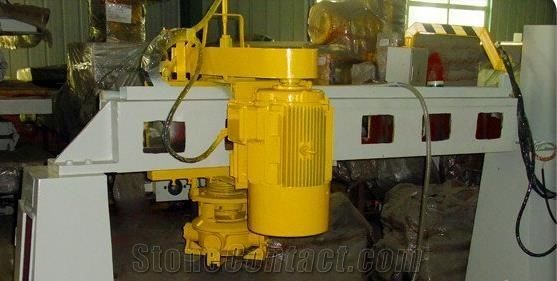

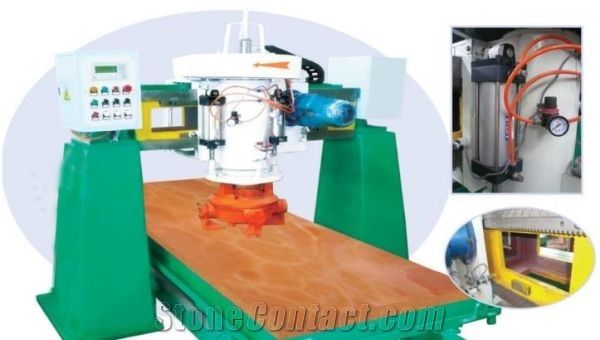

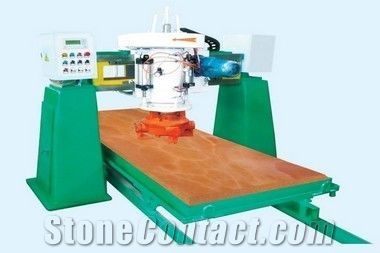

Bridge Polishing Machine working along the slideway up-down by air pressure system.the stone slab moves along bridge like frame and is controlled by PLC controlling systerm and can work automatic.
Utand bridge Polishing Machine with more stable performance,better production quality& capacity than any other kind of polisher.our bridge polishing mandrel of polishing head is supported by the plating hard chrome sleeve for preventing bearing additional load.durable and reasonable cost!
Technical Data
Parameters |
Unit |
UT90 |
UT120 |
UT180 |
UT220 |
Slabs max. processable thickness |
mm |
120 |
120 |
120 |
120 |
Slabs max. polishing width |
mm |
900 |
1200 |
1800 |
2200 |
Total power |
kW |
17.25 |
17.25 |
17.25 |
17.25 |
Approx. Weight |
Kg |
2700 |
3000 |
4000 |
5000 |
Machine overall height |
mm |
2000 |
2000 |
2000 |
2000 |
Machine overall width |
mm |
2200 |
2500 |
2900 |
3300 |
Slabs max. processable length |
mm |
3000 |
3000 |
3000 |
3000 |
Machine overall length |
mm |
6500 |
6500 |
6500 |
6500 |
Main power |
kW |
15 |
15 |
15 |
15 |
