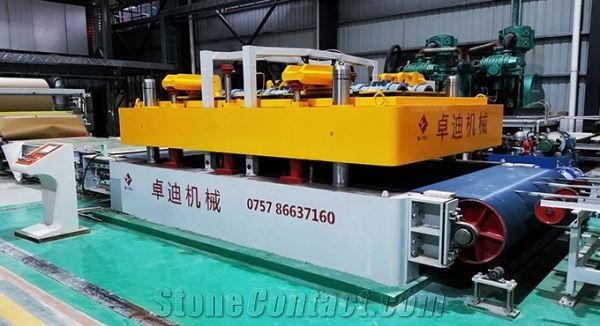

Artificial Stone Quartz Stone Slab Pressing Machine
FOB Price:
Type:
Artificial Stone MachinesPressing Machine
Usage:
Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Machinery Function Features
Pure bright is a used for machining surface of quartz stone plate device, it can be infiltrated ultra protective material (adhesion) on the surface of tiles, so that through the quartz stone plate surface after processing has a very good brightness. Pure bright characteristics:
1.by adjusting the protective material formula, quartz stone plate surface can make the processed has antibacterial, antiseptic and self-cleaning effect.
2.By using this equipment, the production speed of up to ~10m/min;
Quartz stone plate surface gloss. After nano polishing production line processing can be up to 90 degrees, close to the mirror effect, and the antiskid effect and processing and is very close to the front.
Technical Data
Parameters |
Unit |
ZYJ1700 |
Approx. Weight |
Kg |
38000 |
Compressed air |
NL/min |
260 |
Min. slab thickness |
mm |
10 |
Total power |
kw |
8x10 |
Max. slab width |
mm |
1700 |
Machine overall width |
mm |
3300 |
Machine overall height |
mm |
3000 |
Max. slab length |
mm |
3250 |
Machine overall length |
mm |
6950 |
Vibration motor power |
kw |
4 |
Pressing cycle |
minute/piece |
10 |
