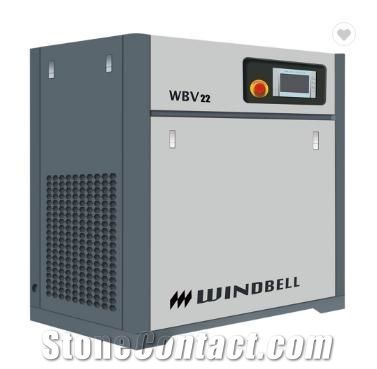

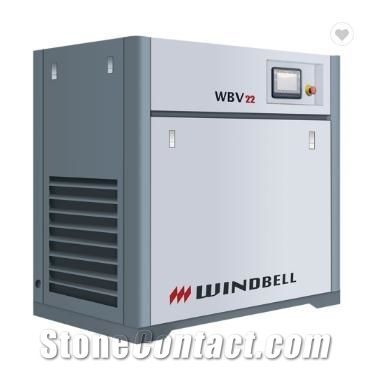

General Industrial Rotary Screw Air Compressor Machine
FOB Price:$999.00-9,999.00
Type:
Stone Quarry MachinesAir Compressors, Generators
After-Sale
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade
Supplier
Eatablished :Jan 01,2006
Main Product:
Air Compressor|
Machinery Function Features
The electric screw air compressor is equiped with one 22kw electric motor with free air delivery of 2.7-3.7m3/min at the pressure of 7-12 bar. It is applicated for industry of Machinery , Chemical , Electric Power, Cement, Furniture, Construction Material...
VSD type is also available for this model , it can save energy of 30-35% , it can save more cost for enprise owner.
Technical Data
Parameters |
Unit |
WBV22 |
Dimension LxWxH |
cm |
135*84*125 |
Lubrication capacity |
L |
15 |
Configuration(Stationary/Portable) |
Stationary |
|
Weight |
Kg |
590 |
Voltage |
380V/50HZ or Customized |
|
Separator capacity |
L |
29 |
Power Source |
AC POWER |
|
Free Air Delivery |
m3/min |
2.7-3.7 |
Working Pressure |
bar |
7-12 |
Working Power |
kw |
22 |
Type (Screw/Rotary/..) |
SCREW |
|
Lubrication Style |
Lubricated |
|
Cooling Method |
Air or water |
