Polywire 5/16 Stationary multiple diamond wire saw
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 31,1959
Main Product:
Automatic Loading Table, Slabs, Marble, Brushing Machine, Aging Machine, Continuous Flaming Machine|
Machinery Function Features

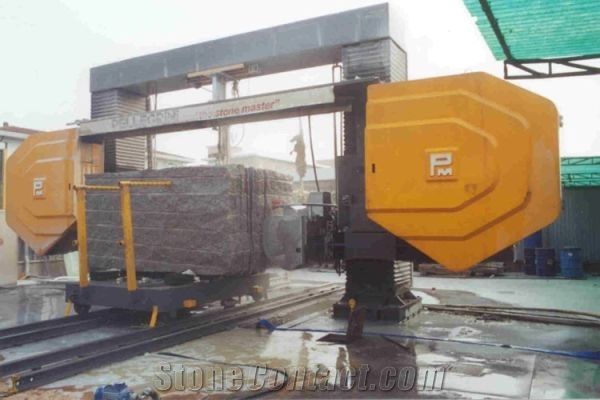

Stationary multiple diamond wire saw to cut up to 16 slabs at the same time, in marble or granite. The machine is controlled by a computerised system with a PLC.

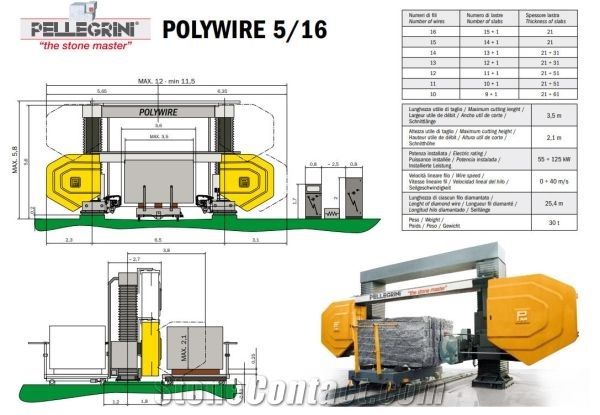

Technical Data
Parameters |
Unit |
Polywire 5/16 |
Max. Number of wires for sawing 30mm thick. |
nr |
14 |
Machine length (L) |
mm |
11500 ~12000 |
Max. Cutting length |
mm |
3500 |
Max. Number of wires for sawing 20mm thick. |
nr |
16 |
Diamond wires speed |
m/sec. |
0 ÷ 40 m/s |
Max. Cutting width |
mm |
3000 |
Machine width (W) |
mm |
6000 |
Slabs nominal thickness |
mm |
20 |
Diamond wire length |
mm |
25400 |
Installed electrical power |
kW |
55 ÷ 125 kW |
Output number of slabs 20mm per linear mt. |
nr |
15+1 |
Approximative Weight |
Kg |
30000 |
Machine height (H) |
mm |
5600~5800 |
Max. Cutting height |
mm |
2100 |
Output number of slabs 30mm per linear mt. |
nr |
13+1 |
