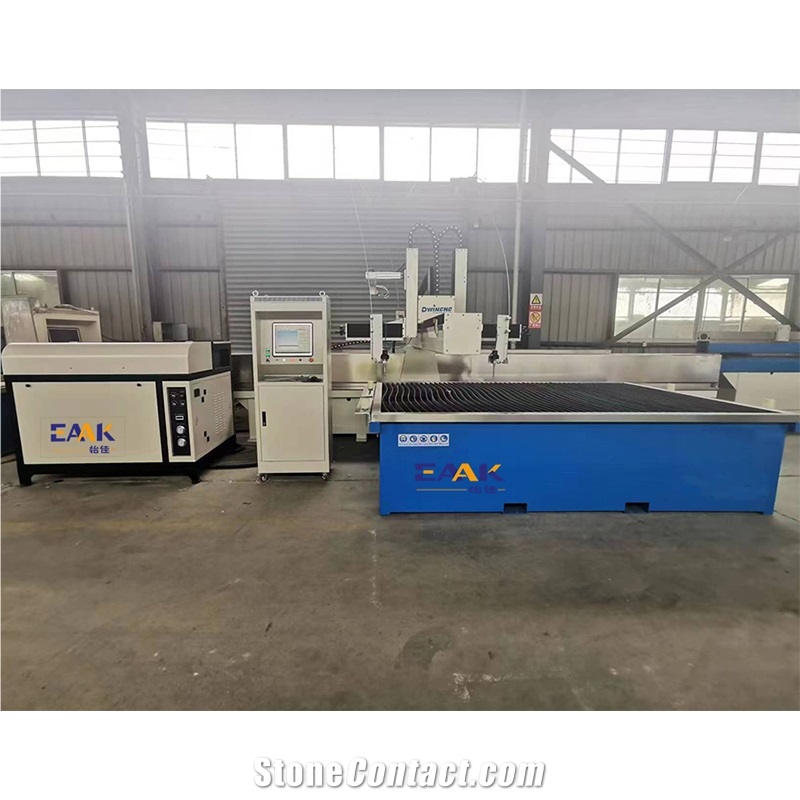

Waterjet Countertop Stone Tile Cutter High Pressure Water Jet Machine

FOB Price:$28000-35000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Nov 27,2008

Main Product:

Water Jet Cutting Machine, Cnc Router, Laser Cutting Machine, Laser Engraving Machine, Cnc Waterjet Cutter, Waterjet Metal Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features

EAAK Enhanced waterjet cutting machine EK3020N applications: The cutting materials are not limited (such as stainless steel,carbon steel,copper,brass,aluminum and other metal,glass,stone,marble,granite,foam,ceramics,plastics,composite materials.), waterjet cutting is currently the most applicable cutting method; Metal cutting: 1 Decoration of stainless steel,aluminum.iron,brass and other metal cutting process. 2 Manufacture of machinery and equipment control cabinets such as food machinery,medical machinery,CNC machinery. 3 The metal parts cutting such as stainlesssteel flange,semi-finished,steel construction, non-ferrous metal and so on. Glass cutting: 1 Gas stove surfaces, range hood,disinfecting cabinet, TV, bathroom products. 2 Construction and decoration glass,automotive glass. Ceramic and stone cutting: 1 Ceramic cutting for decoration and construction. 2 Marble mosaic,granite mosaicmstone plate cutting.

Technical Data
Parameters
Unit
EK3020N
Waterjet max pressure
bar
4200
Capacity of external tank for abrasive
Kg
100
Waterjet pump capacity
L/min
3.7
Machine width (W)
mm
4500
Z-axes travel
mm
150
Average level of equivalent sound power
dB
50
X-axis travel
mm
2000
Y-axes travel
mm
3000
Waterjet pump power
kw
37
X - Y axis displacement speed
m/min
35
Machine length (L)
mm
4000
Dimensions of the work table
mm
4500*3500
Approximate weight(including table)
Kg
6500
Cutting Accuracy
mm
0.1
Machine height (H)
mm
1500
CNC Control System
Ncstudio
Software

China Ncstudio CNC control system and Auocad software

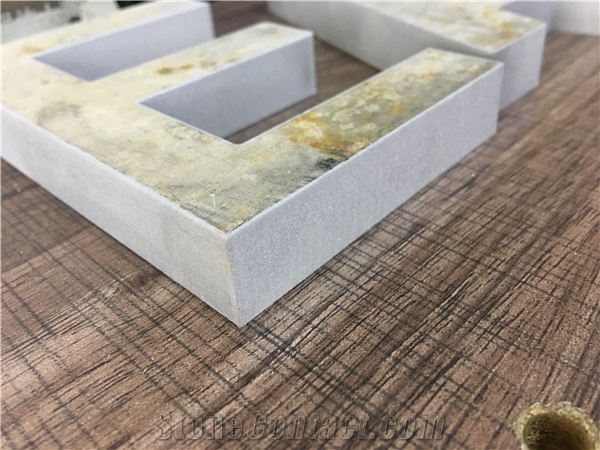

Processed Stone Photos
  • Processed Stone Photos

Components
  • EAAK UHP waterjet cutting pump 420Mpa

    EAAK UHP waterjet cutting pump 420Mpa

Consumables

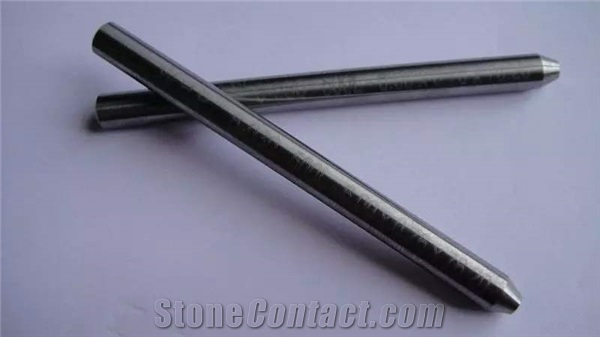

  • Sand pipe for cnc waterjet cutting machine

    Sand pipe for cnc waterjet cutting machine

Video

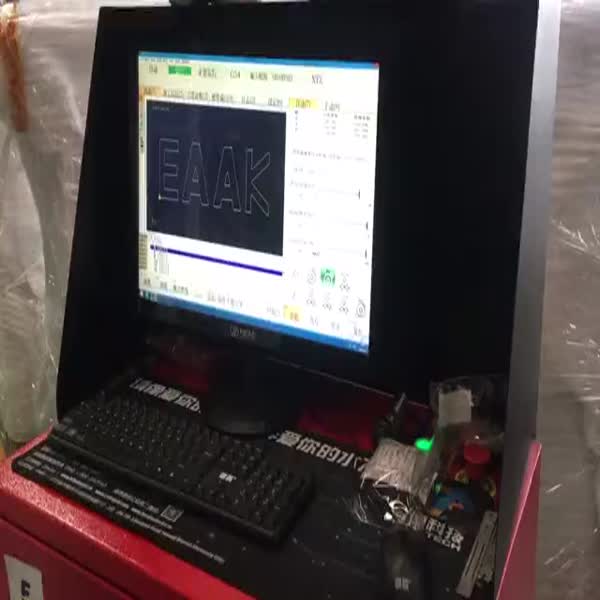

Operation Video Screen.PrimaryScreen.Bounds.Height
