Prussiani TORNADO- 3 axis CNC sink hole, cutting and polishing machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesSink Hole Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features

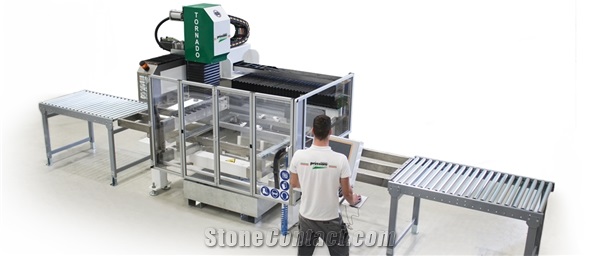

Prussiani TORNADO, 3 axis CNC sink cutting and polishing machine with auto-tool change.
A revolutionary high production full CNC controlled router designed for optimum cutting and polishing of Kitchen sinks and vanity bowls.
All the functionality and quality of full fledge CNC routers, but without the hefty price tag, and the large floor space of full size machines.
Easy to manage
Quick workpiece positioning thanks to the Quickzero™ reference system
Easy to program and operate one day training and ready to work
Automatic Locking System (ALS) of workpiece in place no suction cups needed
Machine easy to use intuitive CAD/CAM software
Perfect polish due to the always true surface reference created by “ALS”
Hard center-line arrow to quickly locate the cut out location
Easy and lowered maintenance planning controlled and guided by CNC
No risk of oil stains on the marble slabs lubrication with EP1 density grease
Technical Data
Parameters |
Unit |
TORNADO |
Max. Processing Width |
mm |
1020 |
Sound pressure level |
dB |
80 ÷ 90 |
Tool stations number |
nr |
9 |
Machine overall length |
mm |
3.810 |
Tool-holder spindle motor power |
kW |
14 |
Max total absorbed power |
kW |
16 |
Machine overall height |
mm |
2.480 |
Z axis stroke |
mm |
250 |
Spindle tool holder |
ISO 40 |
|
Z axis rapid speed |
m/min |
15 |
Min. Processing Width |
mm |
400 |
Machine overall width |
mm |
2.200 |
Max. processing thickness |
mm |
40 |
Sink cutout size |
mm |
950 x 630 |
Y axis stroke |
mm |
800 |
X axis stroke |
mm |
1.200 |
X axis rapid speed |
m/min |
35 |
Control system |
Quickzero-CAD/CAM |
|
Tool-holder spindle rotation speed |
rpm |
0-10.000 |
Tool-holder spindle motor torque |
Nm |
66 |
Min. processing thickness |
mm |
10 |
Approx. Weight |
Kg |
3.100 |
Y axis rapid speed |
m/min |
35 |

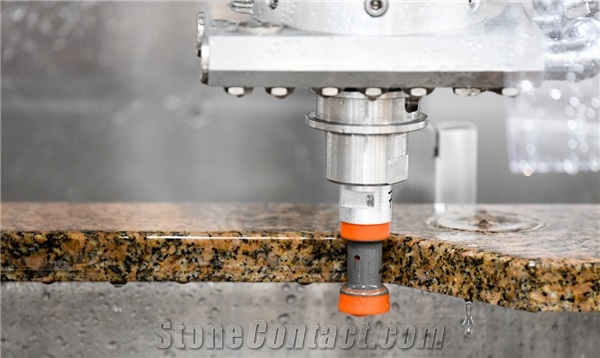

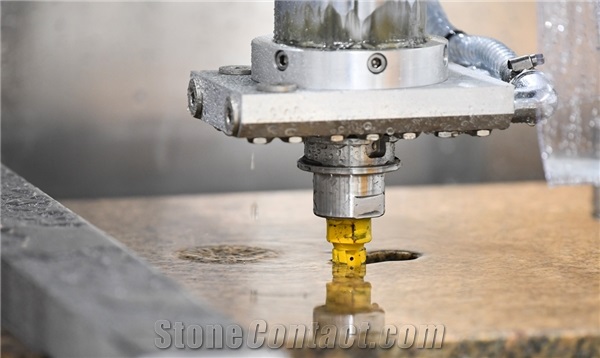

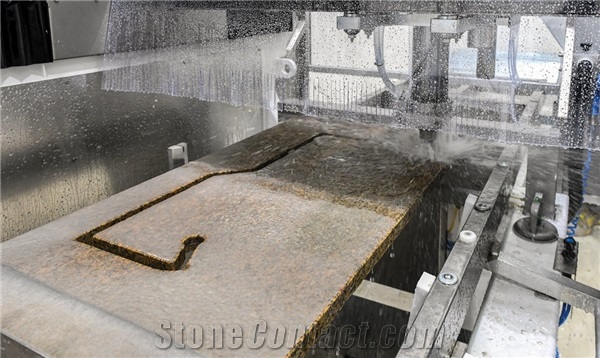

Work Example
Quick workpiece positioning thanks to the Quickzero™ reference system
Easy to program and operate one day training and ready to work
Automatic Locking System (ALS) of workpiece in place no suction cups needed
Machine easy to use intuitive CAD/CAM software
