Bench with internal air diffuser MS 200
FOB Price:
Type:
Stone Factory MachinesStone Factory Cleaning EquipmentsAir Dust Collector
Usage:
Granite, Marble
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 30,1989
Main Product:
Water Tratment, Filter Press, Filter Bags, Systems Aspiration Of Dusts, Crusher And Separartor System|
Machinery Function Features
The MS200 Suction Bench has a small and compact structure, it offers the possibility to be moved in any point of your laboratory, ensuring a powerful suction for all the processing performed on it.
This model sucks and filters the dusts, emitting a purified air inside the laboratory through an internal air diffuser located on the back side of the plant.
The plant is of high ecological impact thanks to a closed cycle of suppression (limiting the waste of water) and thanks to a low maintenance of sludge unloading from the plant (due to the unloading built inside the foot of the support).
Technical Data
Parameters |
Unit |
MS 200 |
Total Length |
mm |
3000 |
Unload Weight |
Kg |
410 |
Total air Suction/Aspiration |
m3/h |
14 |
Height |
mm |
940 |
Dust Collector Type (Dry/Wet) |
water dumping system |
|
Suction’s Area |
mm |
2400 x 1000 x 940 |
Width |
mm |
1200 |
Motor power |
kw |
4.5 (380/400V – 50/60Hz) |
Load Weight |
Kg |
850 |
Noise Level |
dB |
68 - 72 |
Tank Capacity |
m3 |
0.3 |
Abatement-Dust Effeciency |
% |
99.6% |
Work’s Area |
mm |
3000 x 1200 x 940 |
Components
-

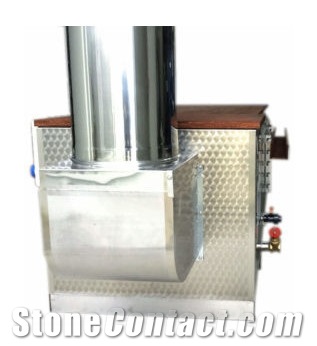

External air diffuser PLUS
