HTR-BL-Double Tower In Line

Name: HTR-BL-Double Tower In Line
Brand: INTERMEK S.A.
SKU: 1376
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesResin Line MachinesAutomatic Filling-Resining Machine

Usage: Granite, Marble, Limestone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance

Supplier

INTERMEK S.A.

Intermek

Greece

Eatablished :Dec 31,2000

Main Product:

Resin Line Plant Solutions, Quarry Machines, Cutting Machines, Polishing Machines, Water Recycling Plants|

Contact supplier

Start Order

You may also like

140-3 Auto Marble Resin Treatment Restoring Plant

RSN 600 Lineer Resin Line Machine - Automatic Filling-Resining Machine

Safir Resin Line - Slabs Restoring Plants for Marble,Granite

STATIC LINES 30/45-30/60-40/60-40/80- Customized Resin Line with Separated Static Storehouse

HTR-A –Single tower Resin Line Plant

Product Detail
Company Profile

Overview

Machinery Function Features

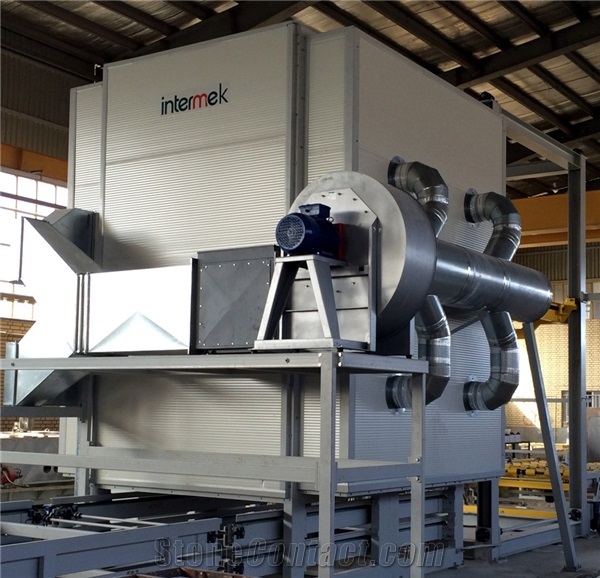

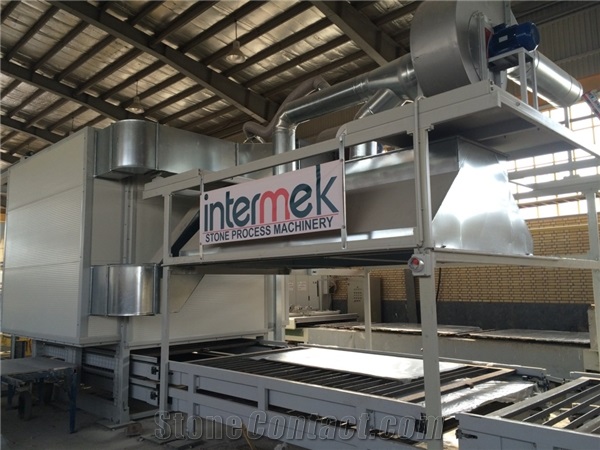

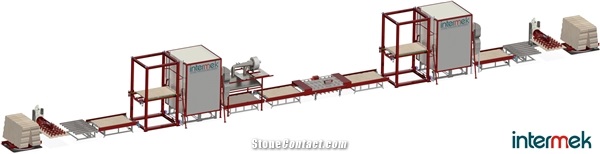

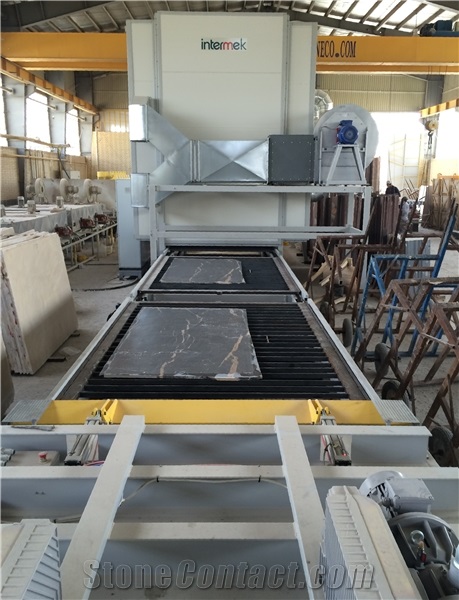

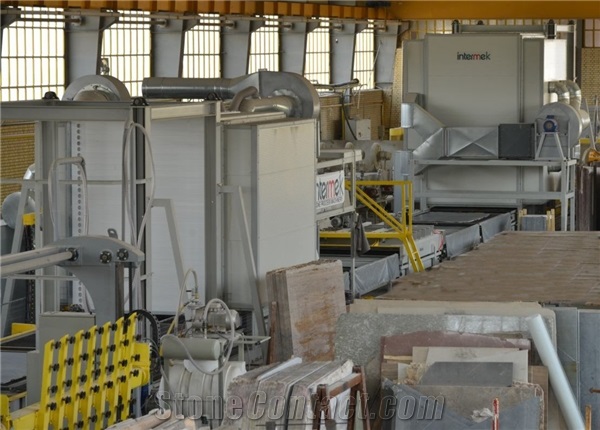

Double tower oven line type HTR-B is suitable for large production of 20-30 slabs/h with capacity 30 and 45 slabs with two separate towers & a single elevator each, to drive the trays in the tower. The one tower is for drying and the other for polymerization. At the bottom of the line conveyor chains are returning the empty trays from the end to the start of the line. The loading/unloading of the slabs in the line is done with arm crane or by robots. When using the arm crane the line is equipped with inclinable conveyor chain. The robots for this line (as optional) can make open book match loading/unloading and has rotating slab stand of 50 Ton capacity.

Technical Data

Parameters	Unit	HTR-BL
Hardening store capacity	nr/hour	45 - 60 -90
Total electric power installed	kw	140 - 200 -200
Time of permanence in hardening store	hour	2.3 - 3.0 - 4.5
Max Production (one face treatment)	nr/hour	20 - 25 - 30
Machine overall width	mm	5.5
Machine overall height	mm	6 - 4.5 - 6
Machine overall length	mm	60
Drying store capacity	nr/hour	30 - 30 - 45
Slabs Capacity	nr	75 - 90 - 135
Time of permanence in drying store	hour	1.5 - 1.5 - 2.3
