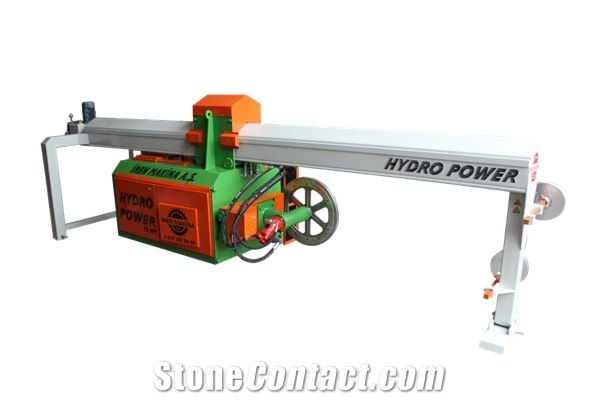

Hydraulic Bridge Mount Diamond Wire Cutting
FOB Price:
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Machinery Function Features
Let's think about the construction machinery work machinery first diesel engine by running the engine and the whole load is transferred to the hydraulic system hydraulic engine in our hydraulic machinery, leaving the whole engine to the hydraulic system
It offers more strong ropes than the machines in its own group.
Since it is hydraulic system, it offers cutting possibility at desired speed. Between 0-1200 cycles. Marble-Granite-Basalt-Travertine Due to the hydraulic system, electrical engine combustion or contactor problems are relatively low compared to other machines.
According to the machines in its group, the electricity consumption is 50% less.
Machine control remote control system
Hydraulic pump engine machine rexroth
Feet adjustable hydraulic system
Technical Data
Parameters |
Unit |
55 KW |
Main Motor Power |
kw |
55 |
Length of machine |
m |
6 |
Main Flywheel Diameter |
mm |
800 |
Wire turning capacity |
m |
80-250 |
Feed Motors Power |
kw |
1.5 |
Main Pulley Revolutions |
r/min |
0-1200 |
Cutting Efficiency |
m2/h |
12-30 |
Guide Pulley Diameter |
mm |
300 |
