Terrazzo Grinding Machine

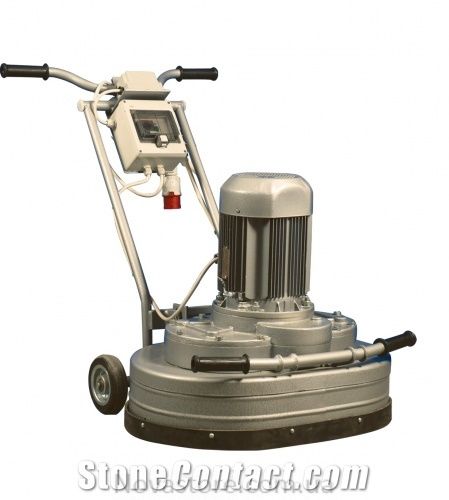

TERRAZZO grinding machine - TRZ.112.380.199.00 TERRAZZO grinding machine is intended for grinding mosaic, marble and concrete floors and it is used in industrial construction and civil engineering. The major components of the machine are: electric motor, reduction gear, two traverses, and the running gear. The electric motor is connected to electricity mains via the protective cut-off device (PCD) and it is started and stopped with the help of the rotary switch. The rotational motion is transmitted from the gear to the meshing toothed wheels. The meshing toothed wheels transmit the rotational motion to the traverses in different directions that ensures machine stability. The traversers are driven by electric motor via the reduction gear and revolve in different directions. The running gear and control unit are attached to the reduction gear body with the help of axle and bracket. The bracket slots enable the machine getting down with respect to the running gear as far as the abrasives wear out. The rubber shock absorbers ensure the stone segments or diamond cutters equal consumption and smooth operation of the machine. The floor grinding process is provided by the six triangular abrasive stones installed in holders on the traverses and fixed with the help of spring rings. The machine may be supplied with the diamond-point cutters, which ensure higher grinding and polishing performance. The diamond-point cutters are installed on the traverses with the help of adaptors. Specifications:TRZ.112.380.199.01 Efficiency, sq. m./h. 43 Grinding width, mm. 600 Grinding heads rotating speed, r/min 440 Traversers quantity 2 Abrasives height, mm. 50 Electric motor power, kW. 5,5 Operating voltage, V. 380 AC mains of frequency, Hz. 50 Overall dimensions, mm (L x W x H) 1100 x 710 x 1010 Gross mass, kg. 130
