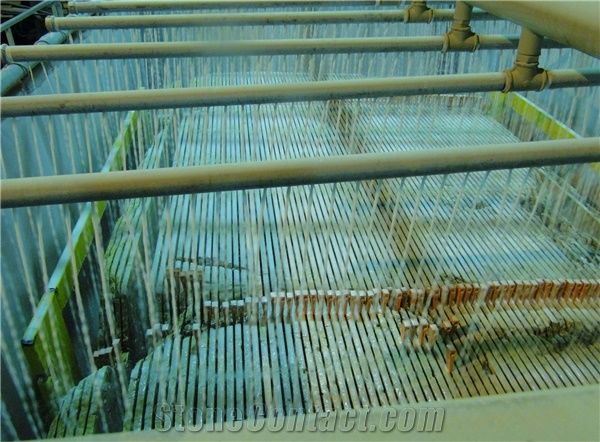

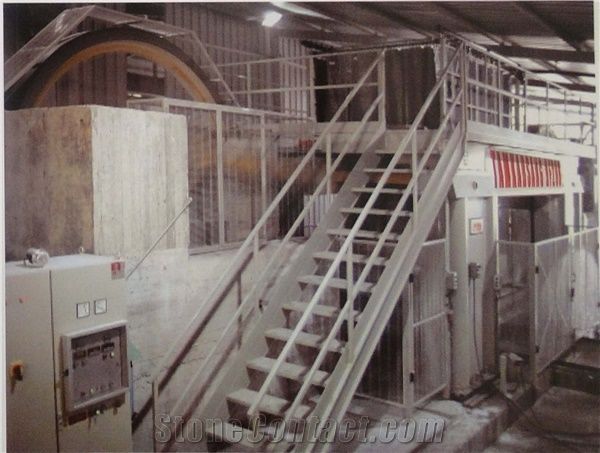

Breton Gang Saw for Marble Hf200
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesClosed Frame Gang Saw
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Jan 21,2015
Main Product:
Diamond Bladed Saw For Marble Tamkarsang HF200 With Block Raising|
Machinery Function Features
Maximum block dimensions (LxHxW): 3200x2000x2000 mm
Maximum no. of blades: 80~100 pcs
Maximum width of the blade pack: 2000 mm
Strokes per minute: 90 n/min
Length of stroke: 700 mm
Main motor power: 110Kw
Max. speed of slow down-feed: 620 mm/h
Rapid down-feed speed: 360 mm/min
Overall dimensions (WxLxH): 450x1330x550 cm
Water requirements: 800 L/min
Machine mass (approx): 50 Ton
Average level of equivalent sound pressure: 88 dbA
Technical Data
Parameters |
Unit |
Hf200 |
Rapid down-feed speed |
mm/h |
360 |
Overall Width |
mm |
4500 |
Machine/Frame Height |
mm |
5500 |
Useful Cutting Height |
mm |
2000 |
Strokes of the Blade |
mm |
700 |
Cycles per minute/Flywheel speed |
r/min |
90 |
Approx. Weight |
T |
50 |
Overall Length |
mm |
13300 |
Useful Cutting Length |
mm |
3200 |
Final Assembly Power |
kw |
110 |
Water Consumption |
L/min |
800 |
Max. speed of slow down-feed |
mm/h |
620 |
Useful Cutting Width |
mm |
2000 |
Max. Number of Blades |
nr |
80~100 |
