Skema Denver Monoblock Bridge Saw Cutting Machine 3-4 Axes

Name: Skema Denver Monoblock Bridge Saw Cutting Machine 3-4 Axes
Brand: Denver S.p.A.
SKU: 1821
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Denver S.p.A.

Denver

San Marino

Eatablished :Dec 31,1983

Main Product:

Stone Machines, Saw Blade, Cnc, Polishing, Waterjet|

Contact supplier

Start Order

You may also like

Prussiani Star Plus - Cnc Bridge Saw

Bridge Type Cutting Machine With Rotation Tilt Head

4 Axis CNC Bridge Saw Cutting Machine

4+1 Monoblock Bridge Saw Machine For Marble Granite

QS1600-QS1800-QS2000 Bridge Type Two-Way Stone Cutter - CNC Bridge Cutting Machine

Product Detail
Company Profile

Overview

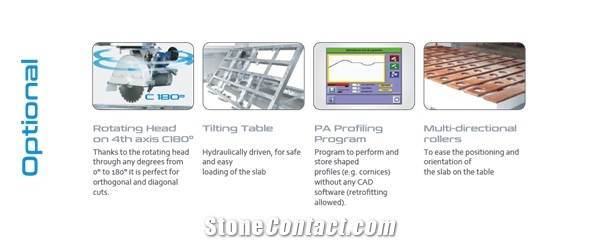

Components

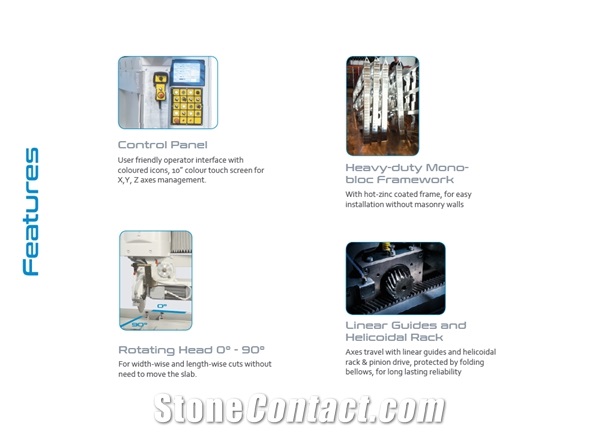

Machinery Function Features

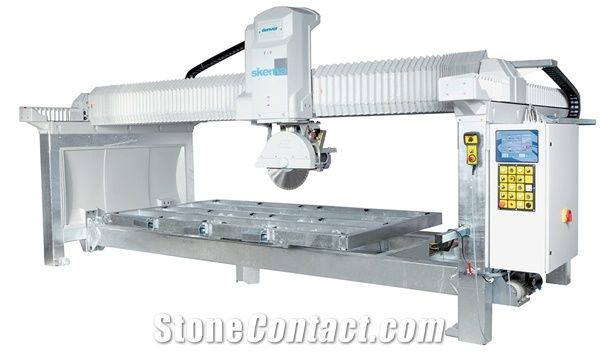

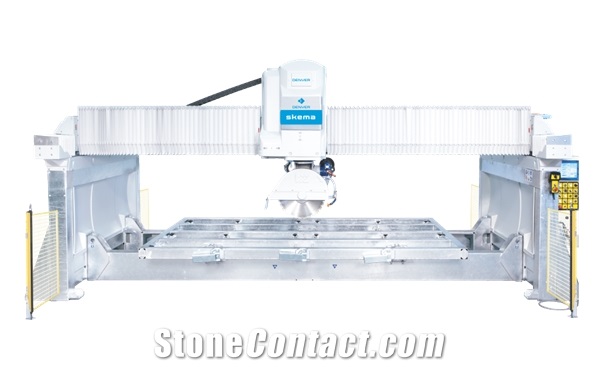

SKEMA Denver 3-4 axis monoblock bridge saw. 3-4-axis monoblock saw with rotating head through 90° (180° opt): easier and faster execution of straight and diagonal cuts. SKEMA is a modern monobloc bridge saw with tilting head and hot zinc coated frame for an exceptionally long lasting sturdiness and accuracy. It features 3 powered axes travelling on steel guideways with revolving balls protected by bellows and lubricated by a centralized system. The 0°-90° head rotation allows width and depth wise cuts with no need to handle the slab.

Technical Data

Parameters	Unit	SKEMA
Tools holder head inclination(A axis blade rotation)	°	0-5-/90
C axis blade rotation	°	0-90/180
Horizontal stroke(X axis travel)	mm	3500
Bridge transversal stroke(Y axis travel)	mm	1900
Max number of interpolated axes	nr	4
Head raising/lowering stroke(Z axis travel)	mm	370
