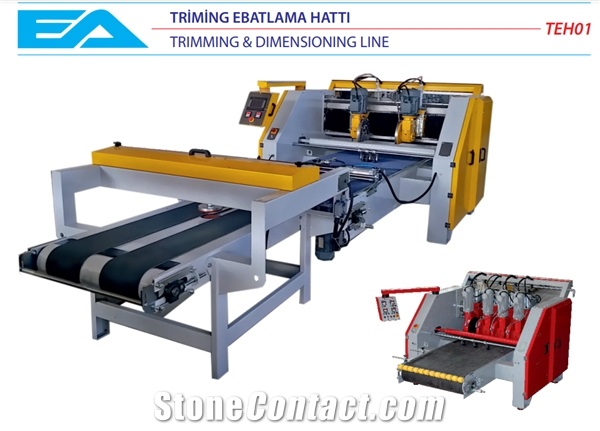

TEH01 Tile Trimming & Dimensioning Line Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Lead Time:
WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 01,2014
Main Product:
Marble Cutting Machine, Splitface Machine, Multidisc Cutting Machine, Slab Dimensioning Machine, Trimming Machine, Mermer Makinasi|
Machinery Function Features
Dimensioning Alignment System-Standart
Disc Motion of Up & Down-Pneumatic
Technical Data
Parameters |
Unit |
TEH01 |
Max. working strip thickness |
mm |
30 to 50 |
Main conveyor belt speed |
m/min |
0-6 |
Machine width (W) |
mm |
2050 |
Disc-holder head motor power |
kw |
5.5-7.5 |
Discs diameter |
mm |
350-400 |
Machine length (L) |
mm |
4450 |
Machine height (H) |
mm |
1750 |
Number of disc-holder heads |
nr |
2 |
Max.Strip Machinable width |
mm |
650 to 1200 |
Turning Belt Motor Power |
kW |
0.37 |
