Stone Splitter For Building Masonry Stones 100T -120T - 150T -180T

Unrivalled performance

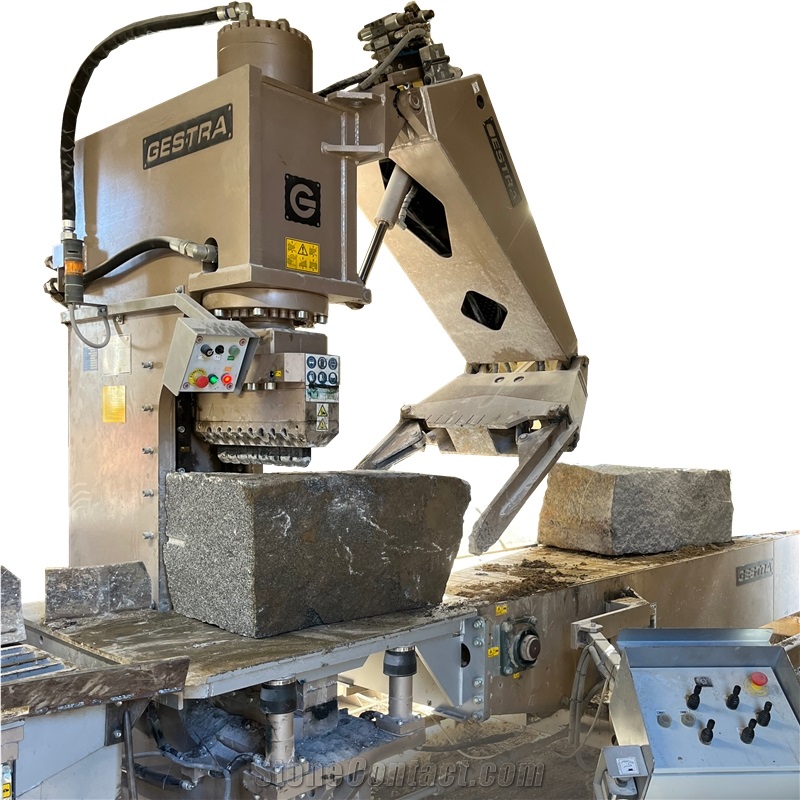

Combining a unique manipulator, an optimally long conveyor and a splitter equipped with a special hydraulic system, you can achieve unrivalled production performance and a significant reduction in operating costs. The splitters are designed to process regular or irregular stone as efficiently as possible. They can process up to 50 - 60 tons per shift. A special hydraulic system with cooling unit, used exclusively by Gestra, gives the splitters high performance and the ability to split even the hardest stones.

Easy handling of processed stones

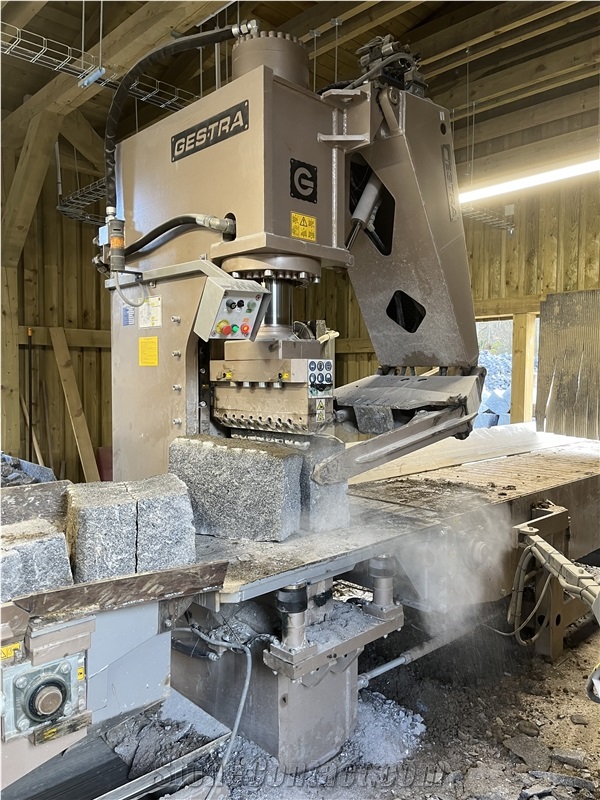

The unrivalled features of the MK manipulator ensure easier handling of the stone blocks. It can be used to move long stones and place them precisely under the splitting head, and once a piece of stone has been split off, it can be turned and tilted in all directions.

Precise splitting of even long blocks

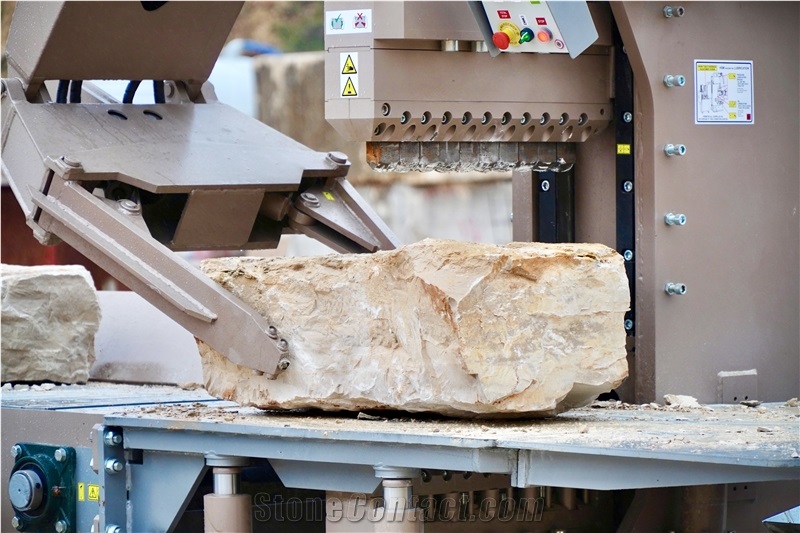

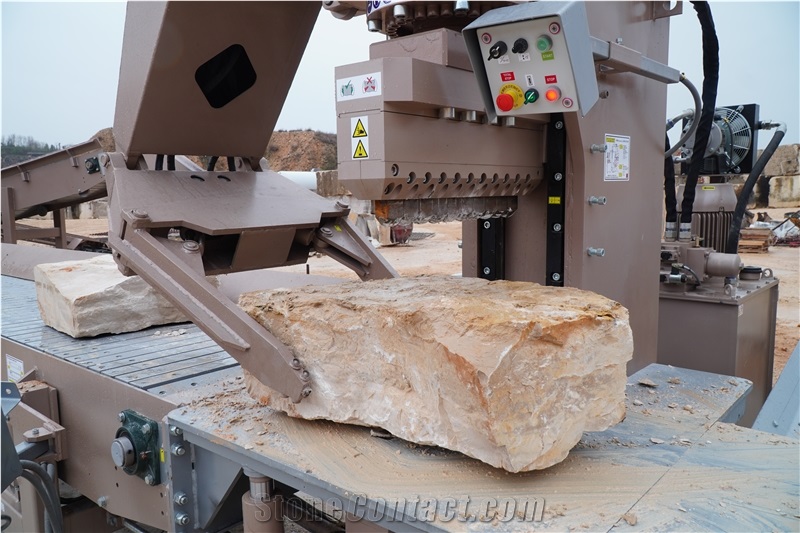

A conveyor with special chains is attached to the splitting table of the splitter, which descends with the table when splitting. This design allows the splitting of long stones without the risk of damaging the table or the conveyor, the splitting takes place only between the teeth and thus increases the quality of the split surface. The stone does not "wobble" on the table during splitting. The robust construction of the conveyor guarantees a long service life. The floating knives that adapt to the shape of the stone also help to increase the quality of the split surface.

Splitting tool

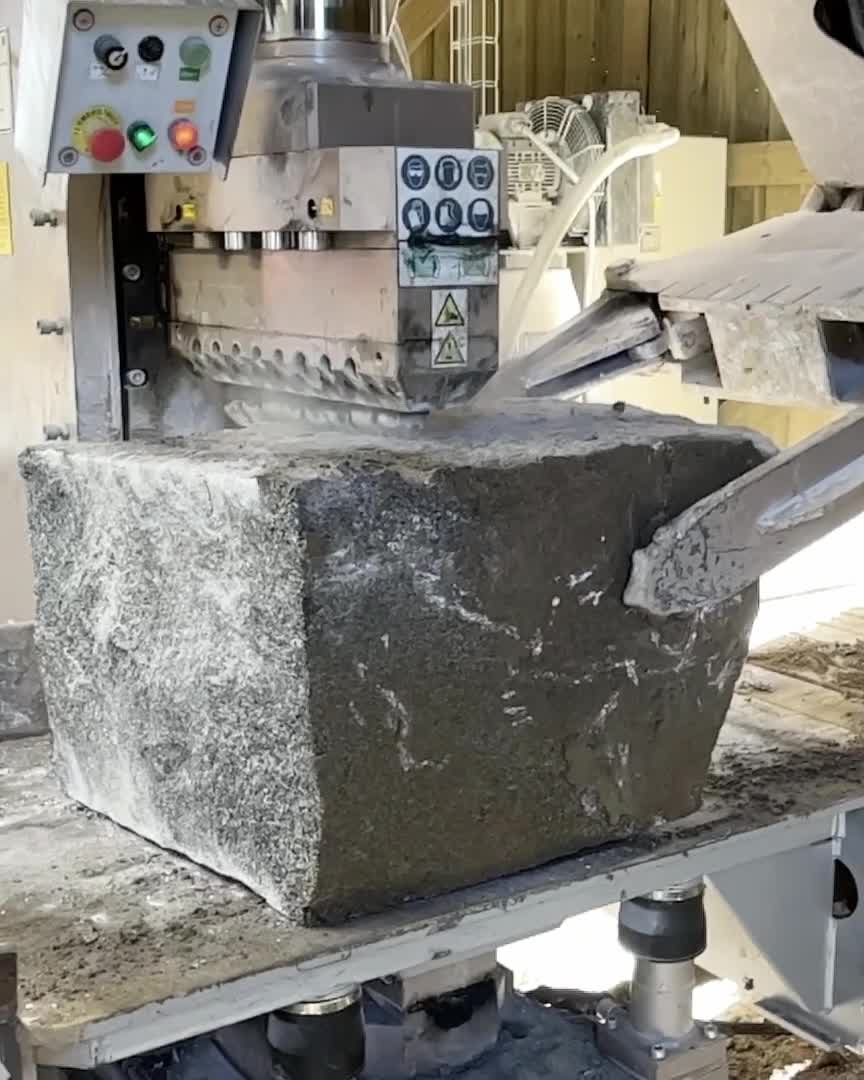

Both the upper and lower tool is leveling, which results in better quality of split products. We use strong teeth in the tools, which have a long service life.

Simple and safe operation

The machine has a control panel with joysticks that control the manipulator and conveyors. The manipulator not only increases the productivity of the machine, but eliminates the physically very demanding work of precisely placing the stone under the splitting head and greatly increases the safety when working on the machine.

Tool reverse control

The reverse time of the upper tool can be adjusted so that it does not travel unnecessarily to the end position when splitting smaller products and thus slow down production unnecessarily.

Reliability and long service life

The splitter and conveyors are extra robust to minimize repair time and unproductive machine maintenance. The conveyors have heavy chains and thick links with reinforcement. The splitter head has a solid construction of all components to withstand long term splitting loads of up to 180 t.

Quality components are also used in the hydraulic power pack where it is not visible at first glance, but it has a major impact on the performance, reliability and life of the machine. The heart of the machine is the radial cast iron pump, which ensures a gradual increase in pressure and a smooth build-up of pressure in the stone, which increases the quality of the splitting.

Cooling unit and heating coil

The hydraulic unit can be fitted with a cooling unit that keeps the hydraulic oil at the ideal temperature to maintain maximum machine performance and extend the life of the hydraulic components.

The heating coil tempers the oil at night temperatures below 10°C so that you can start working quickly at the start of your shift.
