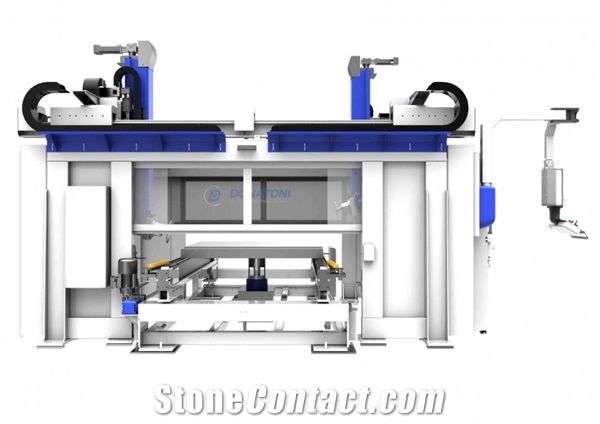

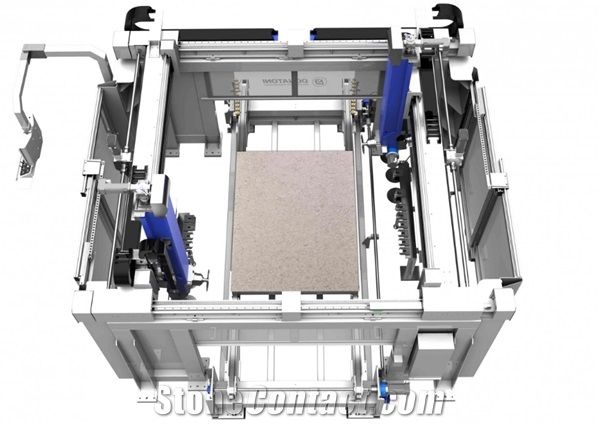

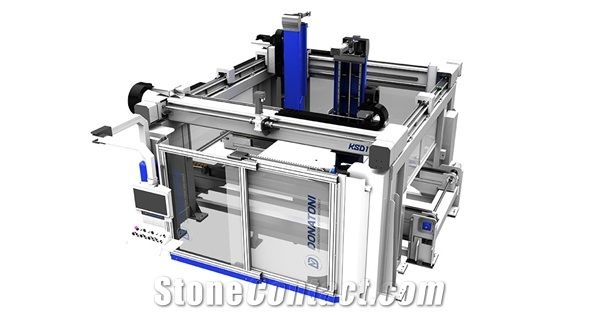

Donatoni KSD 1 CNC Working Centre

KSD 1 is a multifunction machine ideal to automate the process for the performance of pre-set systems for fixing of slabs, claddings and panels in marble, stone and ceramic for interior and exterior applications. The 2 independent bridges system, each one equipped with 1 ISO 40 electro-spindle, allows to carry-out processing operation in parallel way so reducing production times. CNC technology and software grant sequential programming of different types of processing, so avoiding handling or manual works or processing by the use of machines. The great flexibility is guaranteed by the conveyor belts: it widen and shrink automatically according on the width of the piece to be processed. Maximum slab thickness 100 mm, minimum slab dimensions 210x210 mm and maximum slab dimensions 1500x2000 mm (width x length). Slab processing can be carried-out in different ways: Laterally to the slab: to perform holes, milling and built-in processes; Above to the slab: to perform holes, reliefs, millings, rims.
