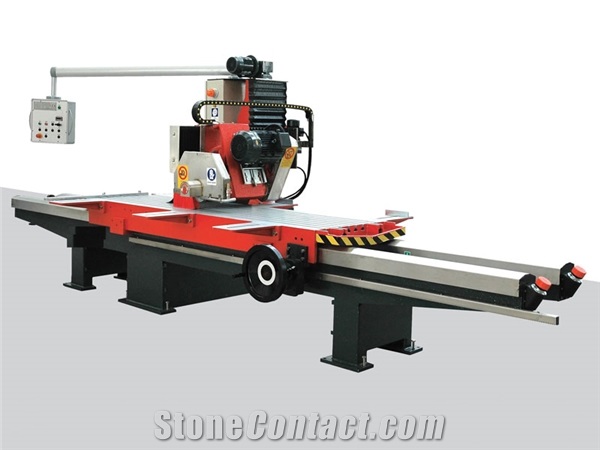

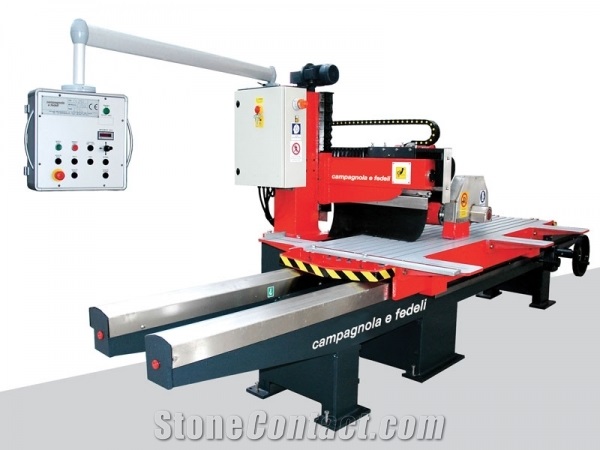

Universal Arm Milling Machine-Sawing Machine Model- Cf 250

Universal arm milling machine – sawing machine Mod. CF 250B: machine suitable for making lengthways cuts on marble and granite. The heavy structure consists of: galvanized base with runners for sliding bench for length of 5200 mm in oil bath and covered by painted sheet metal casing; cast iron bench (length 250 mm, width 750 mm, with shelves 1550 mm); manual bench sliding back-forth by way of rack and pinion coupling operated by handwheel; large cast iron disc holder spindle; up-down movement of motorized disc by way of reducer-electric motor coupling and worm screw; disc holder spindle manually tiltable from 0° to 60° to make angled cuts; reading of rotation angle on measure; manual lubrication, through oiling points, on screws, scrolls and sliding guides; machine complete with electrical system with suspended keyboard. TECHNICAL DATA maximum bench stroke 2500 mm horizontal spindle movement 740 mm vertical spindle movement 450 mm spindle rotation 0-60° spindle motor power 15 Hp, speed 1450 rpm power of translation motor 0.25 kW power of motor for upward and downward movement 0.75 kW max. thickness of cut (marble-granite) 140 mm max. dimensions of machinable slab 3000 x 1250 mm max. disc diameter 500 mm dimensions of bench with shelf 2500x1540 mm length under bench 5240 mm max. distance of disc to column 1050 mm dimensions 5440x2165x(h)2180 mm max. overall dimensions 6450 mm net weight of machine 3300 Kg OPTIONALS stainless steel rail caps, disc cap and belt protection stainless steel electrical panel multiple greasing table motor drive including inverter with option of manual use numerical control to carry out automatic machining cycles with programmed cutting measurements and touchscreen profile design inverter - 11KW/15Hp inverter - 15KW/20Hp motor - 15KW/20Hp tiltable square device installation, commissioning and training in Italy
