Same Waterjet Cantilever Type Cutting Table

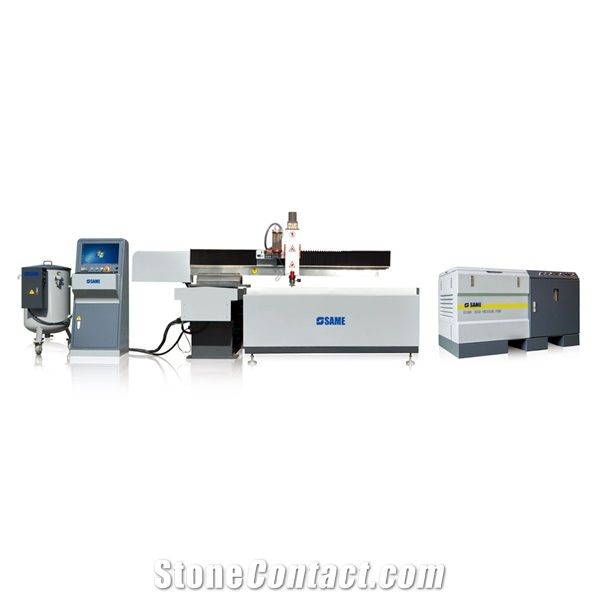

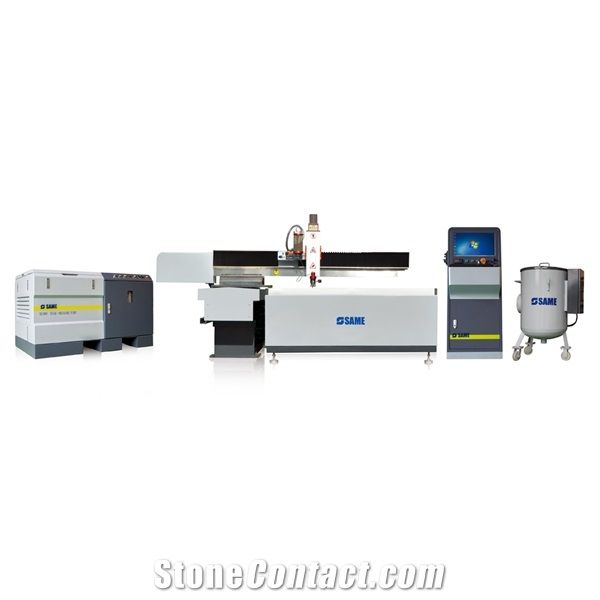

The cantilever-type cutting table consists of the transmission part with the X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, a short-running distance of X and Y axis, suitable for processing a variety of complex small parts. Features: The cutting table consists of a transmission part with X axis Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, a short running distance of X and Y axis, simple structure, suitable for processing a variety of complex small parts. Product information: SAME® cantilever type waterjet cutting machine is available in many sizes (1600mm x 1600mm, 2500mm x 1600mm, 3000mm x 2000mm, 4000mm x 2000mm, etc. Customized service is available.) ● Travel of Z axis: 150mm ● Servo system: YASKAWA, JAPAN ● Cutting accuracy: ±0.1mm ● Control accuracy: ±0.01mm ● Re-positioning accuracy: ±0.025mm/m ● Max. moving speed: 6000mm/min Waterjet cutting machine is popular in metal cutting industry, glass cutting industry, stone cutting industry, fiber cutting industry.
