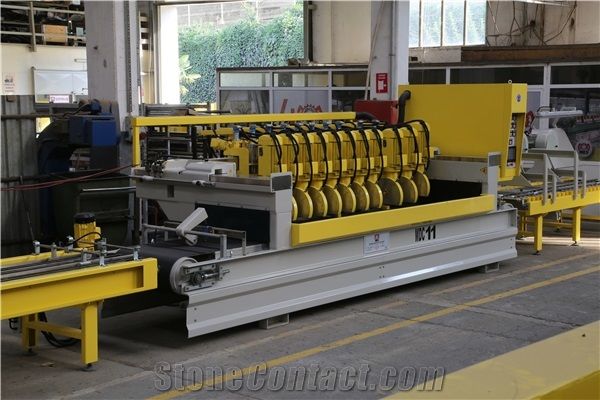

Multi Disc Cross Cutting Machine

Name: Multi Disc Cross Cutting Machine
Brand: MKS Marble Cutting and Polishing Machines Co.Ltd.
SKU: 2312
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesMulti Blade Automatic Slab Cutting Line

Usage: Granite, Marble, Limestone, Sandstone, Travertine

After-Sale

Warranty:12 Months

Supplier

MKS Marble Cutting and Polishing Machines Co.Ltd.

MKS

Turkey

Eatablished :Dec 30,1977

Main Product:

MKS80 Gangsaw Machine, Automatic Slab Polishing Machines, Terrazo Lines, CNC Bridge Cutting Machines, ST Series Block Cutting Machine, Epoxy Resin Lines|

Contact supplier

Start Order

You may also like

HAND-PUSH SINGLE BLADE MULTIFUNCTIONAL CUTTING MACHINE (MODEL 800)

Bridge Granite Multi Blade Stone Block Cutting Machine

Multi Blade Stone Cutting Machine For Marble Granite

Automatic Cross-Longitudinal Cutting Line

Slicing Machine For Kerbstone With Two Worktables

Product Detail
Company Profile

Overview

Technical Data

Parameters	Unit	MDC 3	MDC 4	MDC 5	MDC 6	MDC 7
Machine weight	Kg	7200-7300	7200-7300	7200-7300	7200-7300	7200-7300
Disc motor power	kw	5.5	5.5	5.5	5.5	5.5
Max./Min. blade diameter	mm	350	350	350	350	350
Overall machine length	mm	5600	5600	5600	5600	5600
Max. working slab thickness(marble/granite)	mm	8-40	8-40	8-40	8-40	8-40
Total electric power	kw	20 / 8-25	20 / 8-25	20 / 8-25	20 / 8-25	20 / 8-25
Overall machine width	mm	2250	2250	2250	2250	2250
Belt advancement power	kw	2.2	2.2	2.2	2.2	2.2
Overall machine height	mm	2100	2100	2100	2100	2100
Number of disc	pcs	3	4	5	6	7
Bridge forward-backward movement motor power	kw	1.5	1.5	1.5	1.5	1.5
Useful working width	mm	215-2400	215-2400	215-2400	215-2400	215-2400
