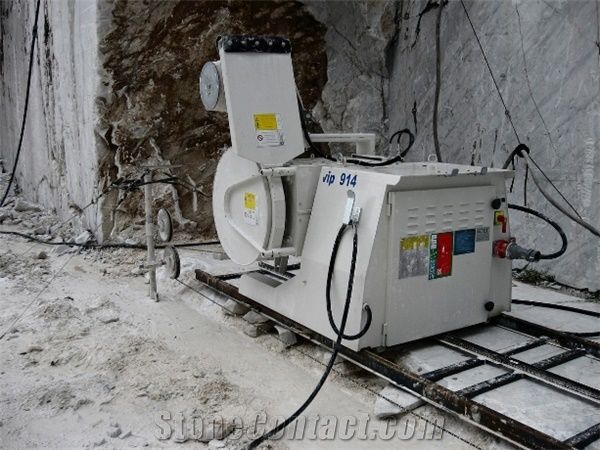

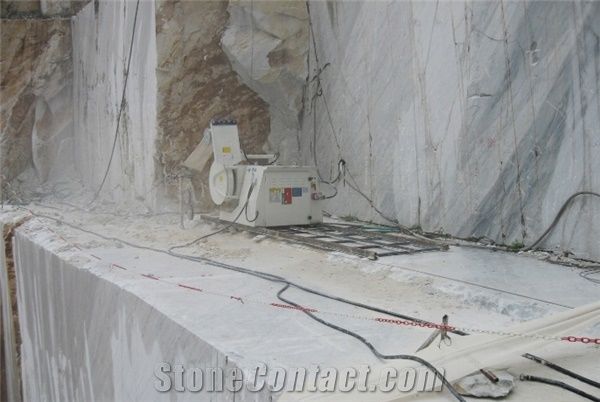

VIP 914 Diamond Wire Quarry Machines
The diamond wire saw mod. vip/914 is a compact design, which can cut in any direction, vertical, horizontal, or inclined, straight against the wall/floor of the benches, in quarries of marble or granite.
This machine allows to make two adjacent cuts at 160 cm distance from each other in a single positioning on rails.
The rotation and the lateral adjustment of the drive unit are motorized.
VIP 914 Inverter the model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output, even on very difficult material.
Technical Data
Parameters |
Unit |
VIP 914 |
Lateral movement of cutting head |
m |
1,60 |
Wire Saw Speed |
m/s |
40 |
Motor Flywheel Unit Rotation |
° |
360 |
Main Motor Power |
kw |
30 - 37 - 45 - 55 |
Main Flywheel Diameter |
mm |
800 |
Length of rails |
m |
2 - 3 |
