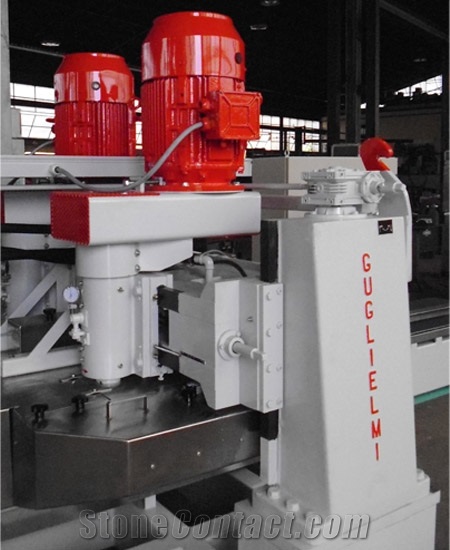

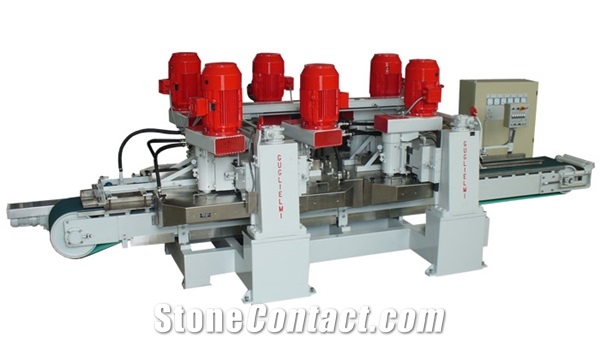

Automatic Horizontal Splitting -Strip Cutting Machine Mod. 6ML H. 300/630

Special machine to divide strips of marble with a width of mm. 300 to 630 and thickness from 20 to 100 mm. Consisting of 6 spindles in parallel position, mounted on two beams connected to each other so as to allow the six spindles to be adjusted in a vertical position, at the same time as the cutting thickness changes. In addition, each spindle is individually adjustable in vertical and transverse position, displayed by a centesimal comparator. Motor power HP. 25 + 25 + 25 + 25 + 30 + 30 + 1. Disks applicable for cutting width 630 mm. : n ° 2 Ø 625/725/850 mm .. Complete with electrical equipment and accessories for use. Machine with disc protections, picker and guides in stainless steel.
