Gpw-510 Wet Air Stone Profiling Machines
FOB Price:
Type:
Stone Hand Held MachinesStone Air Polisher, Grinder
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone
After-Sale
Warranty:12 Months
Machinery Function Features
Muffler Tube, swivel 360 to avoid tubes tangle together.
Rear Handle, support the machine when lift it up.
Regulator for adjusting height of Diamond Disc Wheel (0~35m/m)

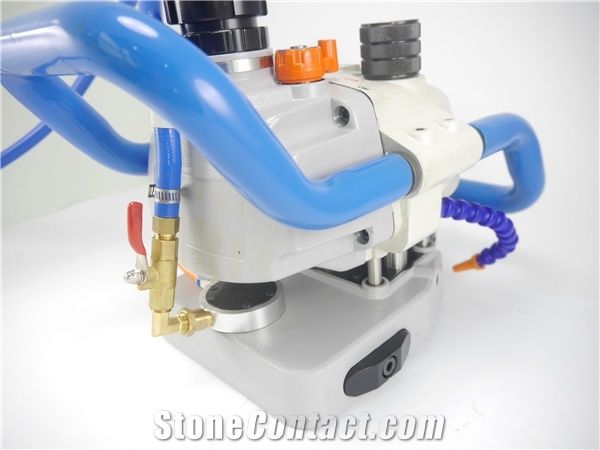

Booster increases water flow pressure and strengthens floating power.

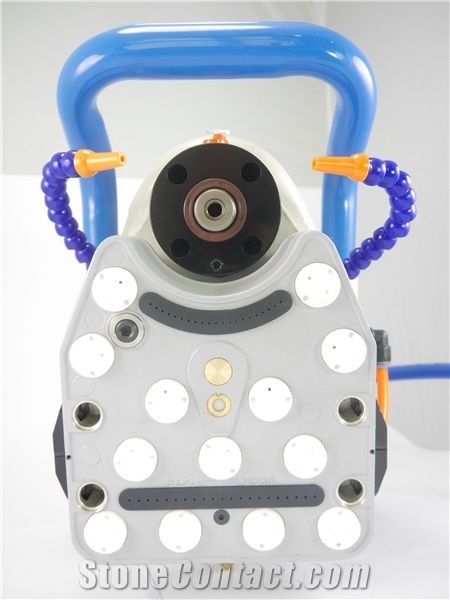

PTFE plates with strong air injection, which features cratch resistance, excellent floating performance, and enables smoothly movement.
Water feeds on slab for scouring residue of profile .
Fixing bolt instead of stop spanner, replace and adjust height of diamond disc easily.

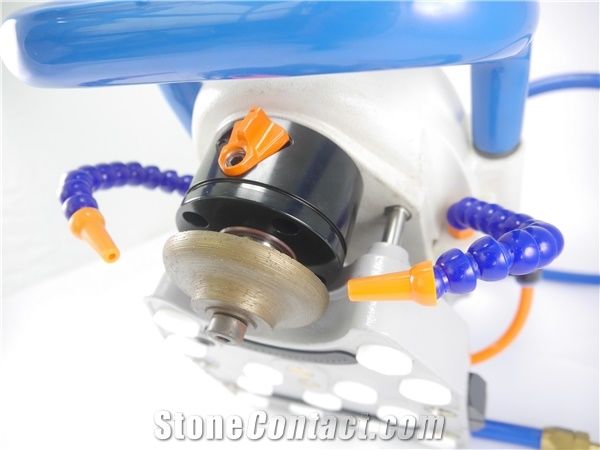

Flexuous water hose can scour the residue on diamond disc wheel.

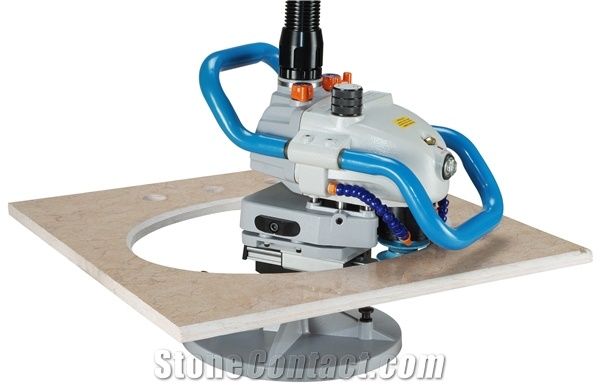

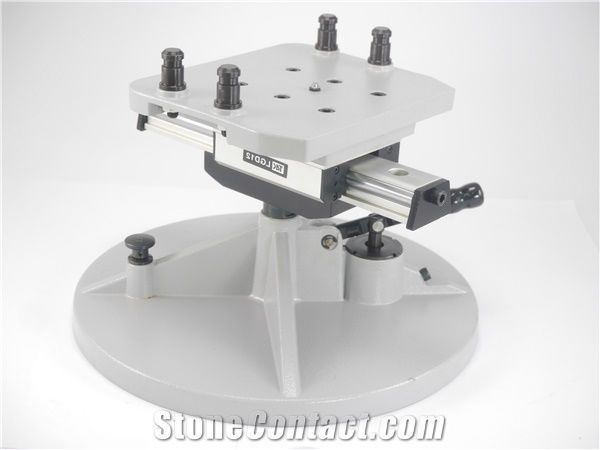

Curved Edge Profiling: enables users glide machine smoothly on rail for milling and polishing straight and curved edges.
Technical Data
Parameters |
Unit |
GPW-510 |
Max. sound |
dB |
82.5 |
Overall width |
mm |
210 |
Spindle size |
mm |
Dia. 22.2 x 10 x M10 |
Overall length |
mm |
420 |
Max. profiling thickness |
mm |
20 ~ 30 |
Maximum no-load speed |
r/min |
9000 |
Average air consumption |
m3/min |
1.19 |
Hose size |
mm |
10 |
Apr. weight |
Kg |
14.5 |
Air pressure |
bar |
6.2 |
Air compressor power requirements |
hp |
2.5 |
Overall height |
mm |
260 |
Processing type(Dry or Wet) |
Wet |
