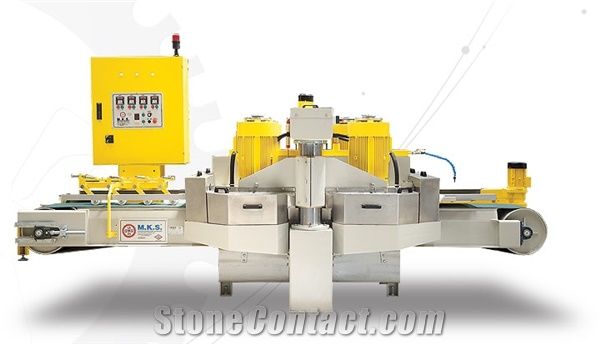

YTYM Horizontal Tile Splitting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMulti-Blade Cross-Cutter,Trimming
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1977
Main Product:
Gangsaw 80 Blades Machine , Marble Block Cutter Machine , Cross Cutter Machine, Horizontal Splitting Machine , Tile Polishing Machine , Slab Polishing Machine|
Machinery Function Features
Horizontal Splitting Machine

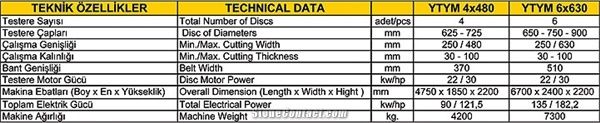

Technical Data
Parameters |
Unit |
YTYM 4x480 |
YTYM 6x630 |
Number of disc-holder heads |
nr |
4 |
6 |
Max. working strip thickness |
mm |
100 |
100 |
Belt width |
mm |
370 |
510 |
Approximate weight |
Kg |
4200 |
7300 |
Min. working strip thickness |
mm |
30 |
30 |
Machine length (L) |
mm |
470 |
6700 |
Discs diameter |
mm |
625-725 |
650-750-900 |
Machine width (W) |
mm |
1850 |
2400 |
Installed electrical power |
kw |
90 |
135 |
Min.Strip Machinable width |
mm |
250 |
250 |
Machine height (H) |
mm |
2200 |
2200 |
Disc-holder head motor power |
kw |
22 |
22 |
Max.Strip Machinable width |
mm |
480 |
630 |
