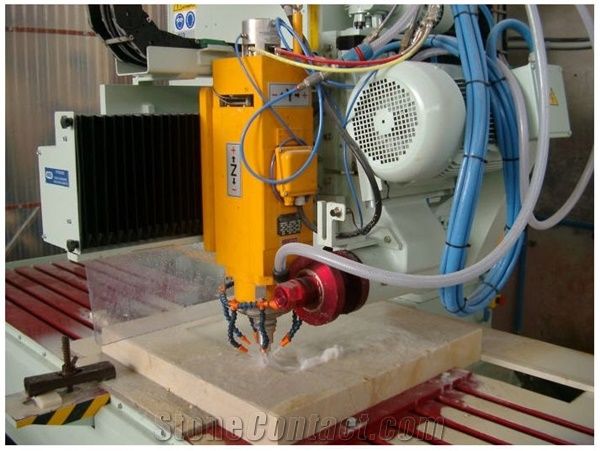

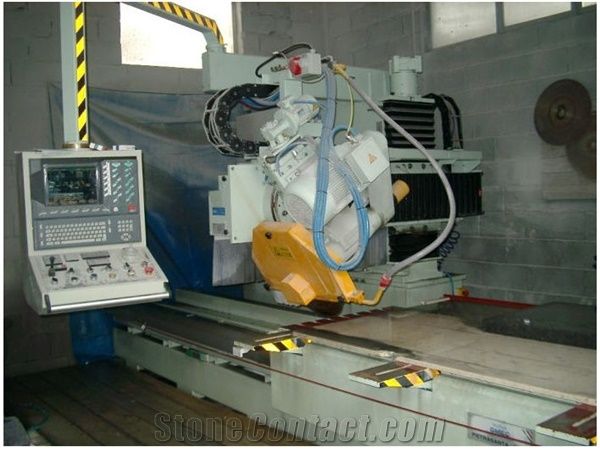

Shaping Contouring Machine CNC 625 D.P. MOD.300
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Sandstone
After-Sale
Warranty:12 Months
Supplier
Main Product:
Special Machines For Marble, Granite, Stone|
Technical Data
Parameters |
Unit |
CNC 625 D.P. MOD.300 |
Y axis stroke |
m |
1.27 |
Rotation speed of the tool-holder spindle |
rpm |
1000 - 10000 |
Worktable lenght (x axis) |
m |
3 |
Z axis top speed |
mm/min |
7.5 |
Compressed air pressure |
bar |
6 |
Slide's lenght (x axis) |
m |
5.50 |
Tool-holder spindle motor power |
ph |
7.5 |
Y axis top speed |
mm/min |
7.5 |
X axis stroke |
m |
3.20 |
Z axis stroke |
m |
0.56 |
Sleigh run for granites |
m |
220 |
Spindle motor power |
hp |
15 |
Approx. Weight |
Kg |
5460 |
Rotation speed of the tool-holder spindle disc |
rpm |
800 - 2400 |
X axis top speed |
mm/min |
18 |
Disc max. diameter |
mm |
625 |
Woktable with extension brackets (x axis) |
m |
1.43 |
Installation total power |
Kw |
20 |
Water consumption |
L/min |
30 |
Disc shaft diameter |
mm |
50 |
Max. total absorbed power |
Kw |
15 |
