Manual Polishing Profiling Machine

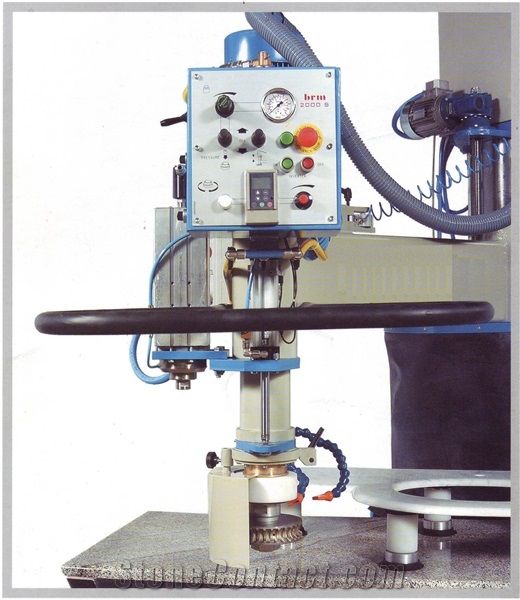

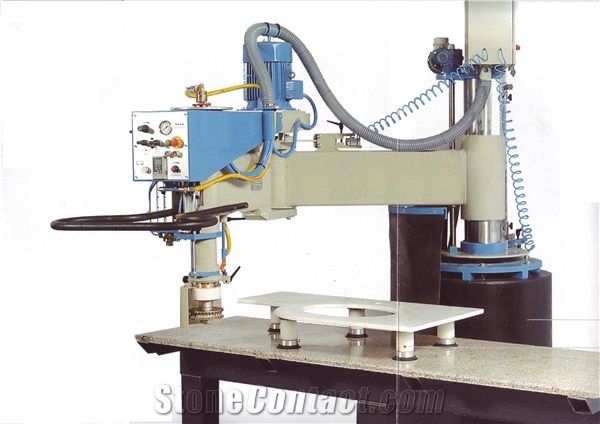

This machine has been studied for special processing, such as : polishing plane and convex or concave surfaces with pneumatic pressure; edges shaping and polishing with thickness up to 100 mm; execution and polishing of drain-boards; processing and polishing of table, kitchen and vanity top profiles; drilling; horizontal cut with diamond disc, etc. It is made of a stout steel structure rotating over 350° and allowing thus to work on different work stations; its radius is 2000 mm. A 7,5 HP motor, controlled by inverter, allows the adjustment of spindle rotation from 300 to 3,000 rpm; the value is readable on a proper display on the control panel. The vertical movement on the column is motorized. The contact with the template is carried out by means of an idle roller which has the same diameter as the diamond wheel. The two semi-arms can be locked by means of pneumatic disc brakes. The tools are cooled directly from the internal of the spindle as well as from outside. The electric plant, with components of the best International brands, complies with European Standards (CE) in force.
