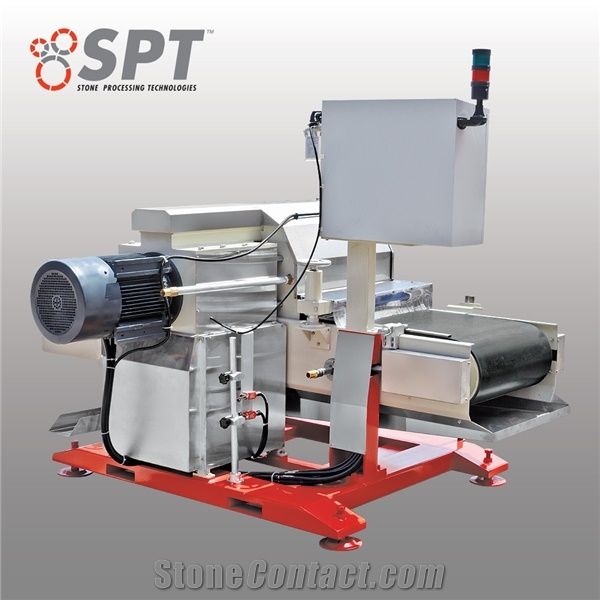

Mosaic Cutting Machine

Name: Mosaic Cutting Machine
Brand: SPT Stone Processing Technologies
SKU: 3100
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Cutting Machine

Usage: Marble, Limestone, Onyx, Travertine

After-Sale

Warranty:24 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

SPT Stone Processing Technologies

SPT Stone Processing Technologies

Turkey

Eatablished :Sep 01,2009

Main Product:

RESTORING PLANT, RESIN LINE, DRYING OWENS, MOSAIC CUTTING MACHINES, IR DRYER, VERTICAL DOUBLE TOWER CATALYZING OVEN|

Contact supplier

Start Order

You may also like

Mosaic Shaping Machine

DOUBLE-GROUP MULTI-BLADE AUTOMATIC Mosaic Cutting Machine (HY2-1200)

Stone Slices Breaking Machine - Mosaic Chips Cutting Machine

20Tons CNC Hydraulic Stone Splitter For Making Wall Claddings

Frango Spico Mosaic Chipping Unit

Product Detail
Company Profile

Overview

Machinery Function Features

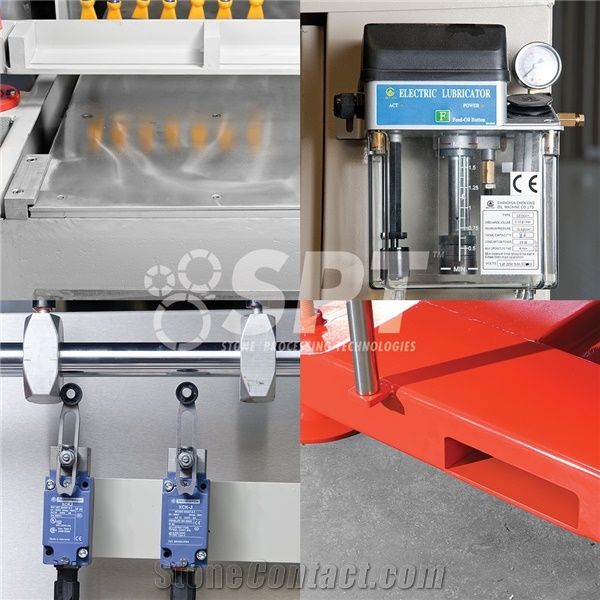

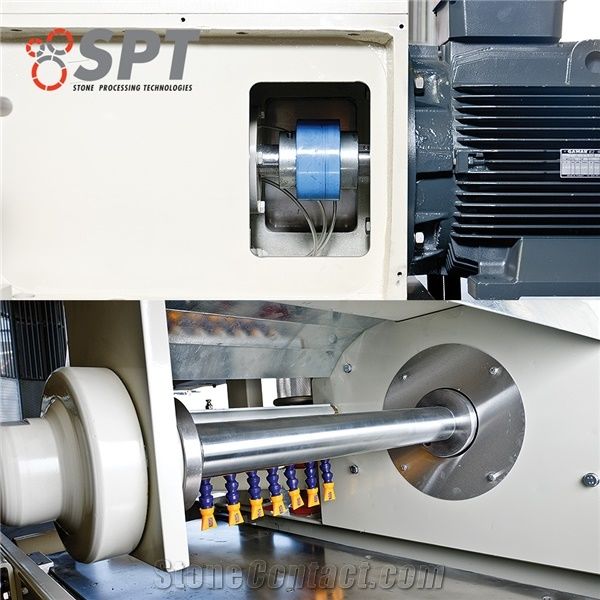

Description: TECHNICAL SPECIFICATIONS - TEKNIK ÖZELLİKLER Outer Covers - Kapak ve Dış Muhafazalar Stainless Inox (ASTM 304) - 304 Kalite Paslanmaz Inoks Maximum Feeding Width - Maksimum çalışma genişliği 480 mm ( Up to 630mm - İsteğe göre 630 mm ) Conveyor Motor Power - Konveyör motor gücü 1.5 hp - 1,1 kw (1500 rpm Double Drive - 1500 d/d Double Tahrik) ALS Pump - Otomatik yağlama pompası Electric powered full automatic - Elektrik motorlu ,debi ayarlı tam otomatik Lift Motor Power - Asansör motoru 0,75 hp - 0,55 kw ( 1500 rpm - 1500 d/d Gamak motor ) Cutting Motor Power - Kesim motor gücü 30 hp - 22 kw ( 3000 rpm - 3000 d/d Gamak motor ) Conveyor Belt - Konveyör Bant 4850 mm x 480 mm x 10 mm ZİLİGEN 10 mm Pvc + Sponge -Pvc + Kauçuk Conveyor Belt Speed - Konveyör Bant Hızı 0,5 – 5,5 meter/min. - metre/dak. Electrical Parts - Elektrik Malzeme Schneider ( Telemecanique ) Electronic Security - Elektrik Güvenlik SICK Brand Security Switch & Emergency Stop Button SICK Marka Güvenlik rölesi ve acil stop butonu Lifting System - Asansör Kaldırma Sistemi Movement made on 4 columns, made out of chrome, sliding on graphite bedding - 4 Kollu Krom Miller Üzerinde Grafit Burçlarla Yataklamalı Lifting Lubricator - Asansör Kaldırma Sistemi Yağlama Full Automatic Lubricator - Tam Otomatik Pompa ile Yağlama Water Tray - Alt Suluk Teknesi Stainless Inox (ASTM 304) - 304 Kalite Paslanmaz Inoks Conveyor Bottom Cover - Konveyör Bant Altı 6 mm Stainless Inox (ASTM 304) extra plate - 304 Kalite Paslanmaz Inoks Conveyor Motor Cover - Konveyör Bant Motoru Koruması Stainless Inox (ASTM 304) Splash Proof 304 Kalite Paslanmaz Inoks 304 Kalite paslanmaz inoks ile suya karşı koruma Lift Group Cover - Asansör Grubu Koruması Stainless Inox (ASTM 304) Splash Proof 304 Kalite inoks ( Paslanmaz )ile suya ve neme karşı tam yalıtım Saw Capacity - Kesim Testere Adet Maximum 24 pcs (Saw Diameter : 300 – 350 mm) Maksimum 24 Adet ( 300 – 350 mm Çap Testere )
