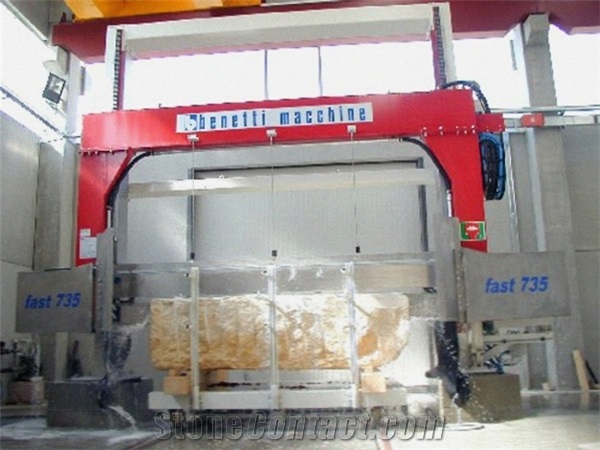

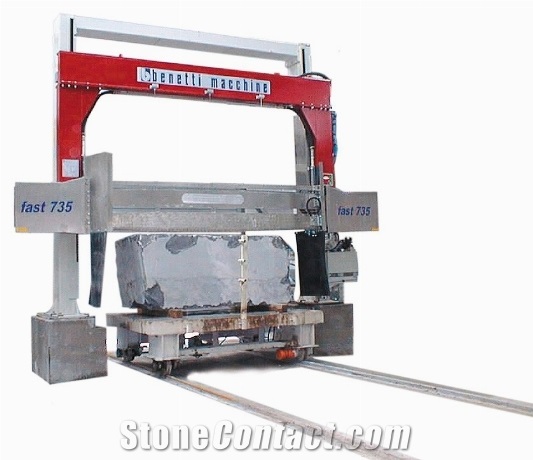

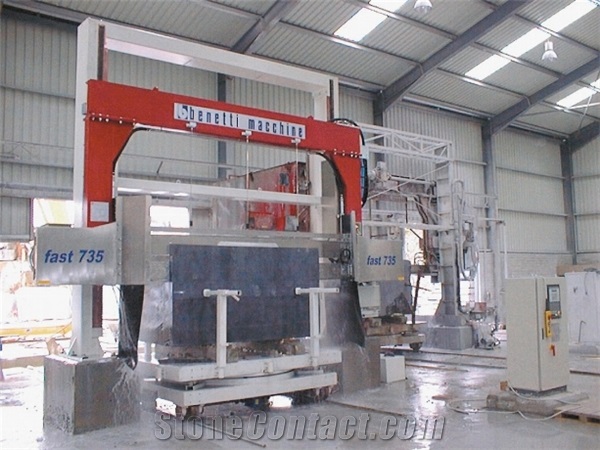

Benetti Fast 735 Diamond Belt Stationary Machine for marble and soft stones
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMonolama Cutting Machine
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
Diamond Belt Stationary Machine
The Diamond Belt Stationary Machine is a patented machine with exceptional quality and speed performance while cutting.
Fast 735
Special stationary machine for marble and soft stones thick slabs cutting and blocks squaring.

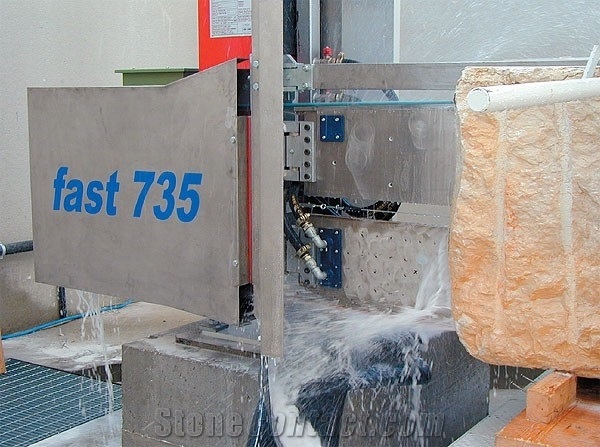

Special stationary machine for marble and soft stones thick slabs cutting and blocks squaring. The tool is a sintered diamond belt that runs without friction on a double guide thanks to a water film (aquaplaning system) and a 45 kW electric motor. All functions and movements are controlled by PLC on the control panel, that allows to make automatic cycle cuts.
The block trolley capacity is 40 tons and the dimension of cm 300 x 220. The rotation control system is interfaced with PLC and visualized on the control panel.
Technical Data
Parameters |
Unit |
Benetti Fast 735 |
Diameter of pulleys for diamond belt |
mm |
620 |
Main Motor Power |
kw |
58 |
Useful Cutting Height |
mm |
2175 |
Electric motor for the hydraulic downfeed unit |
kW |
4 |
Useful Cutting Width |
mm |
3500 |
Electric motor for the block trolley movement |
kW |
1 |
Electric motor for the block trolley rotation |
kW |
0,75 |
Main 3-phase electric motor for the diamond belt rotation |
kW |
45 |
