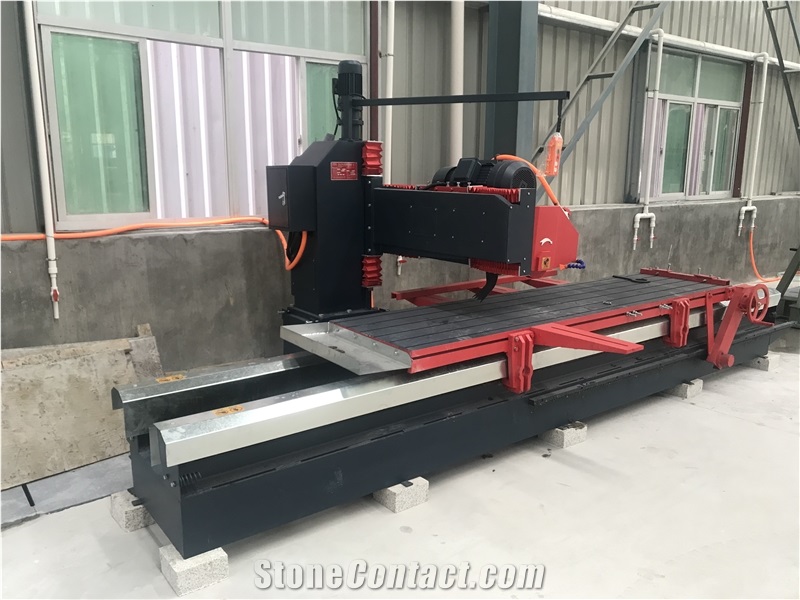

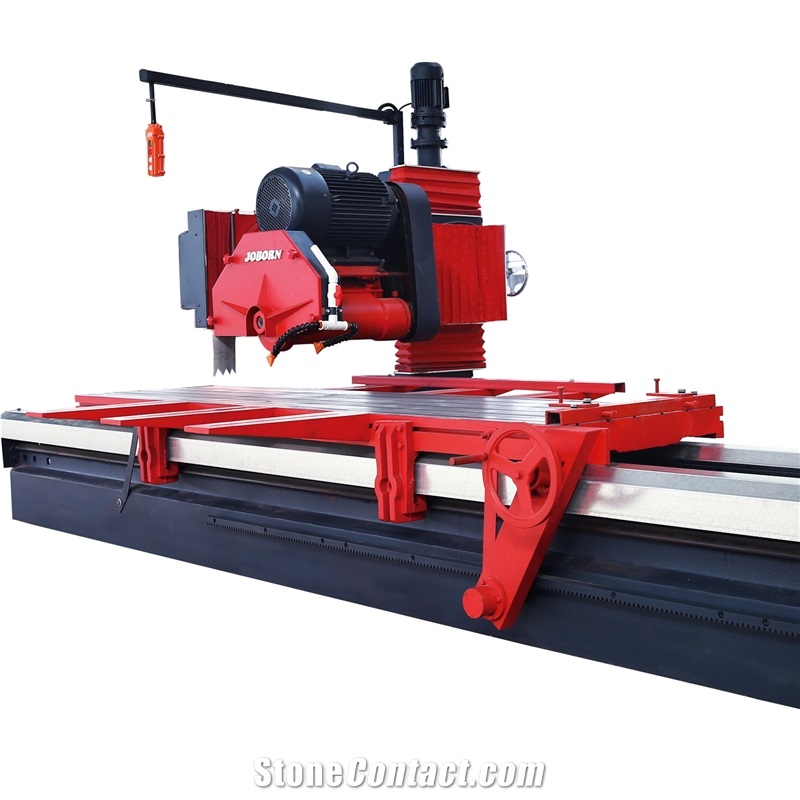

Joborn Manual Cutting Machine SQC-600

Name: Joborn Manual Cutting Machine SQC-600
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 3322
Price: 6000 USD
Availability: InStock

FOB Price:$6000-10000

Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 20 DAYS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Aardwolf Site Saw SSM2000

QXZ-ZD-1800 AUTOMATIC SERIES FOR CUTTING CERAMIC TILE PANELS

Multi-Function Tile Cutting Machine- Mitre Saw

Manual Tile Cutting Machine Mitre Saw, Edge Cutting Machine SQA-600

Ceramic Tile Cutting Series QX-800/1000/1200

Product Detail
Company Profile

Overview

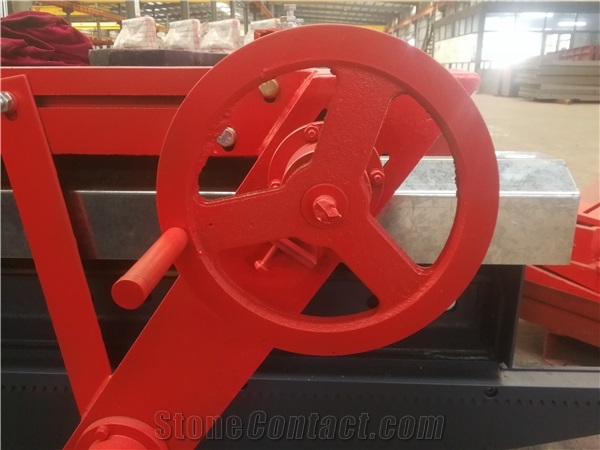

Components

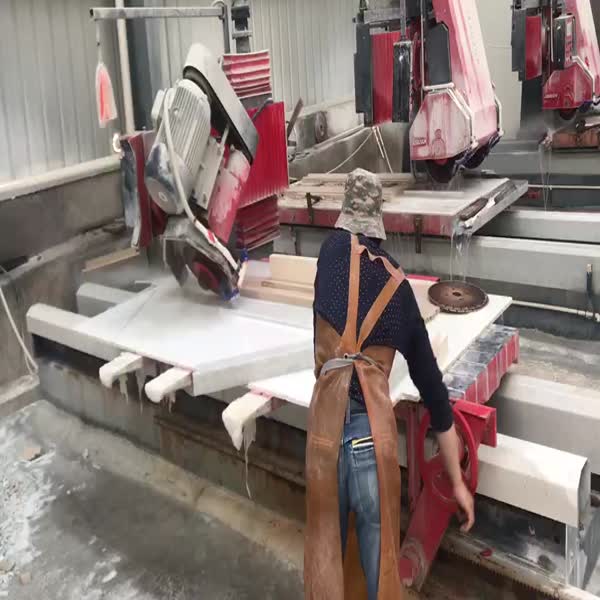

Video

Machinery Function Features

This machine uses combined structure; the main head can rotate 180 degree and be electrically moving up and down. The whole machine has compact structure, fine appearance, stable functions and high processing precision, which suits for edge cutting and milling of small slates, lath and thick tiles.

Technical Data

Parameters	Unit	SQA-600-A	SQA-600-B
Machine height (H)	mm	2250	2250
Cutting table width	mm	1100	1100
Standard frequency	Hz	50	50
Worktable dimensions	mm	3000*750	3000*750
Standard voltage	V	380	380
Machine length (L)	mm	5500	6000
Main motor power	kw	15	18.5
Max stone thickness	mm	180	180
Approximate weight	Kg	2800	3200
Max. cutting width	mm	1100/1200	1100/1200
Machine width (W)	mm	2200	2200
Max. cutting length	mm	2700	3200
Diamond blade diameter	mm	600	600
Cutting table length	mm	3000	3500

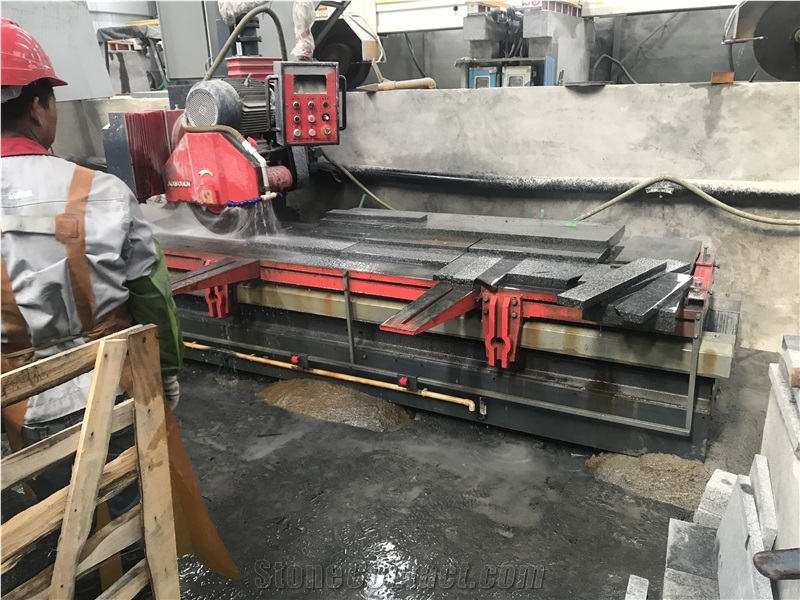

Work Example

Mechanical part: The main machine adopts the screw nut structure to move up and down and left and right, and its maximum stroke is 350 and 1120mm, respectively (standard).

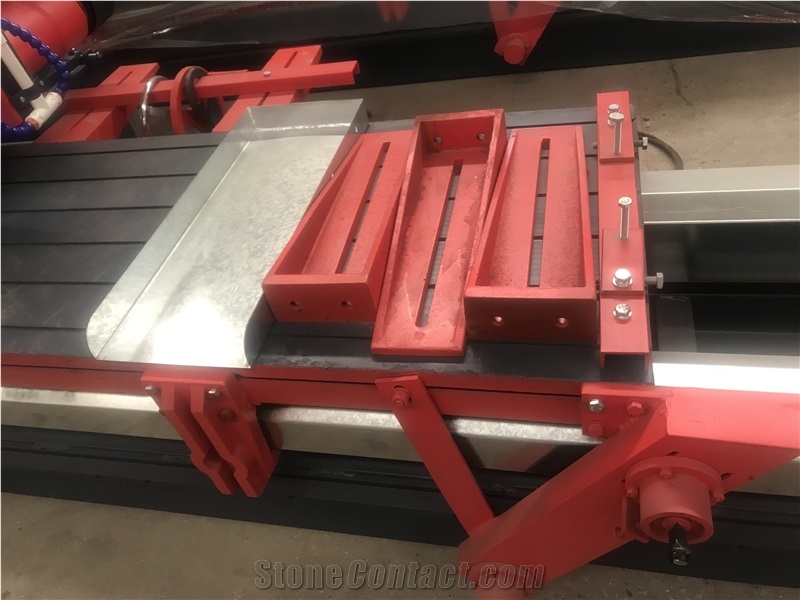

The work table 3000*750mm/3500*750mm is made of integral casting, the work table uses the rack and pinion structure to move back and forth, and its maximum stroke is 3000mm/3500mm.

The maximum saw blade diameter of the main machine is 600mm;

The main motor is 15kW-4P/18.5kW-4P;

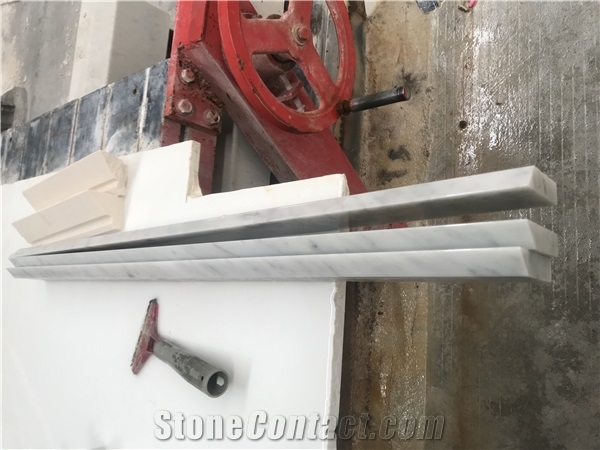

Processed Stone Photos
