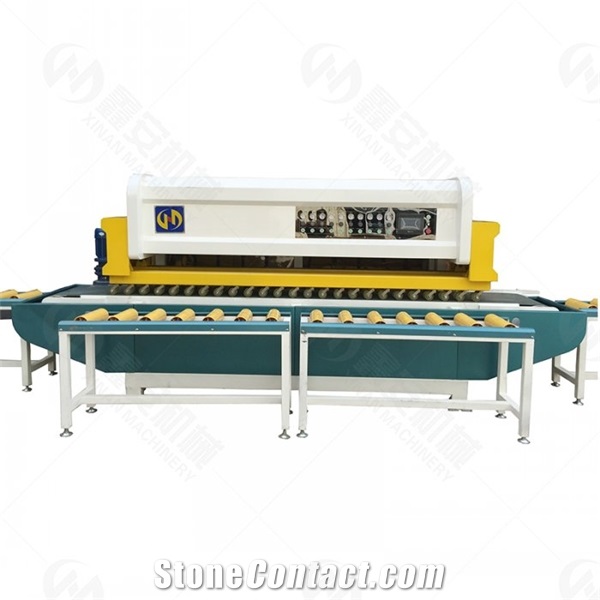

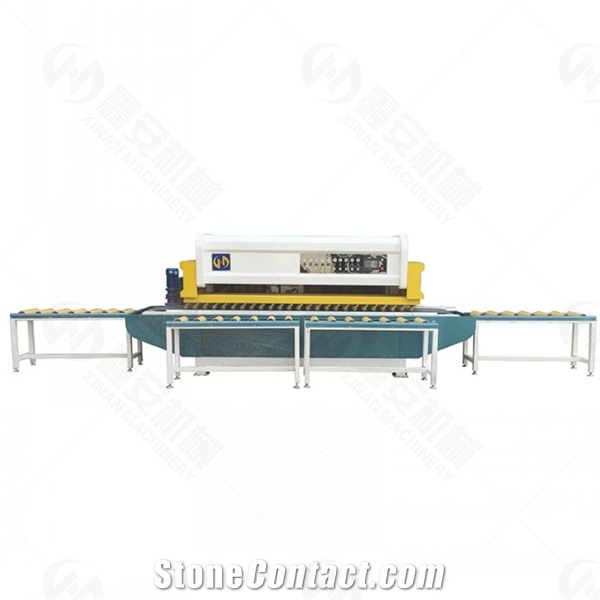

Flat and bevel edge polishing machine polisher for flat edge and bevel edge
FOB Price:$15000-25000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Artificial Stone, Quartzite
After-Sale
Lead Time:
35 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Dec 27,2001
Main Product:
Bridge Saw, Stone Cutting Machine, Stone Polishing Macine, Wire Saw|
You may also like
Machinery Function Features
1). For flat and bevel edge polishing
2). Easy to change pad, saving much time for switch grinding pad.
3). Constant pressure automatic compensation, break the conventional compensation way and keep the surface brightness same.
4). Automatic suspention warning when it runs out of processing stone.
Technical Data
Parameters |
Unit |
XA10P-80 |
Total power |
kw |
15 |
Belt advancement speed |
m/s |
0-5 |
Bevel tools Diameter dimension |
mm |
125 |
Standard diameter of chamfering wheels |
mm |
125 |
Max. processing width |
mm |
800 |
Water consumption |
m3/h |
10 |
Machine overall width |
mm |
1500 |
Machine overall length |
mm |
4300 |
Air consumption |
L/min |
noral |
Diameter of the drip board saw blade |
mm |
125 |
Number of dressing/polishing spindles |
nr |
10 |
Sound pressure level |
dB |
60 |
Max. processing thickness |
mm |
80 |
No. calibrating/shaping/cutting spindles |
nr |
4 |
Standard diameter of polishing wheels |
mm |
125 |
Machine overall height |
mm |
1700 |
Min. Cooling water pressure |
Mpa |
normal |
Grinding tool diameter |
mm |
125 |
Approx. Weight |
Kg |
2500 |
Number of Bevelling/chamfering spindles |
nr |
1 |
Belt advancement power |
kw |
1.1 |
Main motor power |
kw |
1.1 |
Grinding spindle power |
kw |
1.1 |
Processed Stone Photos

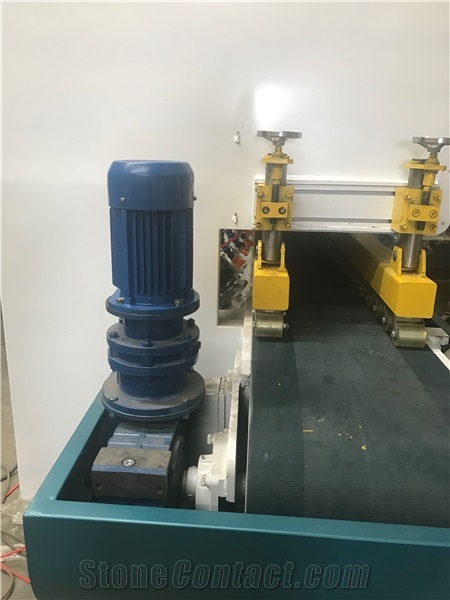

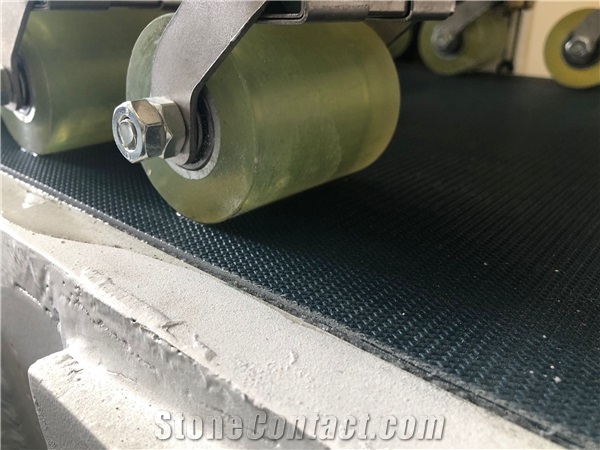

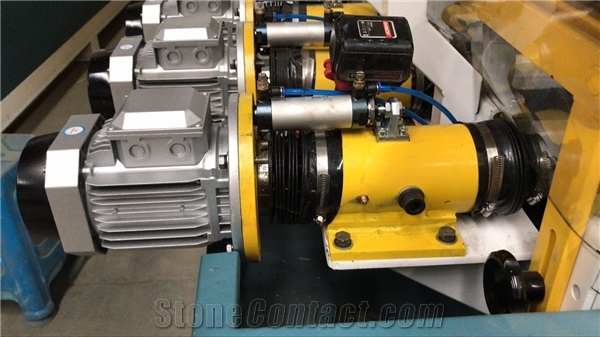

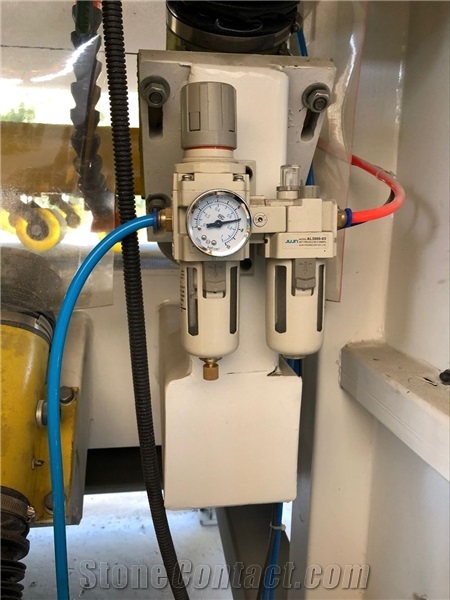

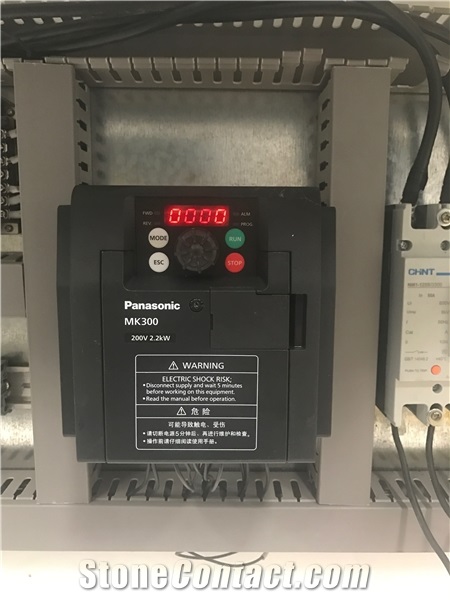

Components
