JOBORN Automatic Profiling Machine

FOB Price:$12800-13600

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Sandstone
After-Sale
Lead Time: WITHIN 30 DAYS AFTER RECEIVING THE DEPOSITS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.
JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like
Automatic Stone Edge Profiling, Polishing Machine- SEG Series
Automatic Stone Edge Profiling, Polishing Machine- SEG Series
EDGE GRINDING MACHINE(M99-B)
EDGE GRINDING MACHINE(M99-B)
Flying Bull Round Edge Polishing Machine
Flying Bull Round Edge Polishing Machine
HLMBJ Line Stone Countertop Sink Hole Profile Edge Polishing Machine
HLMBJ Line Stone Countertop Sink Hole Profile Edge Polishing Machine
Stone Edge Polishing Grinding Machine For Sale
Stone Edge Polishing Grinding Machine For Sale
  • Overview
  • Components
  • Video
Machinery Function Features
This machine using double-blades designing,with high cutting efficiency、high stability、easy-operation to suit for lines,arc-shaped line、Roman column,etc.The work table adopts rack and pinion structure to move back and forth to to greatly reduce power loss, improve transmission efficiency and enhanced service life.The worktable use the inverter to control left-right feeding,adjust the speed according to the stone material，makes the machine is featured as high cutting efficiency.This machine using double-blades designing,with high cutting efficiency、high stability、easy-operation to suit for lines,arc-shaped line、Roman column,etc.
Technical Data
Parameters
Unit
SQ/PC 1300
SQ/PC 1500
Diameter of the drip board saw blade
mm
600
600
Machine overall length
mm
5300
5300
Main motor power
kw
15
15
Water consumption
m3/h
6
6
Approx. Weight
Kg
4300
4500
Machine overall width
mm
2300
2500
Max. processing thickness
mm
550
550
Max. processing width
mm
1300
1500
Total power
kw
19
19
Machine overall height
mm
2520
2520
Max. worktable width with fully extended hydraulic rod
mm
1300
1500

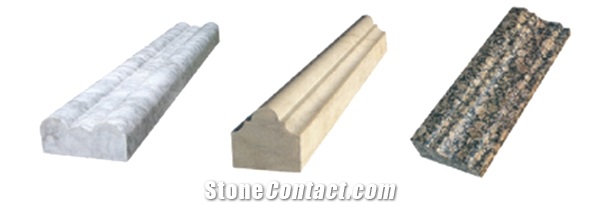

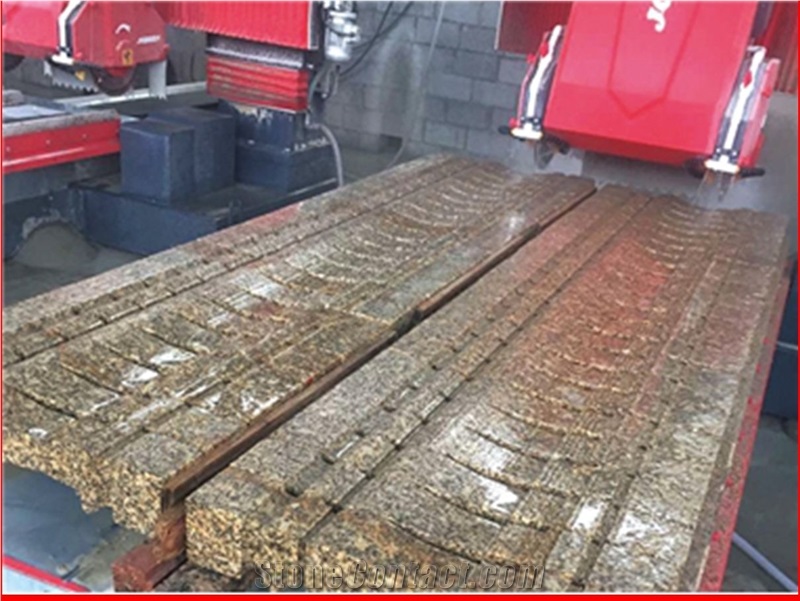

Processed Stone Photos
  • Processed Stone Photos

Components

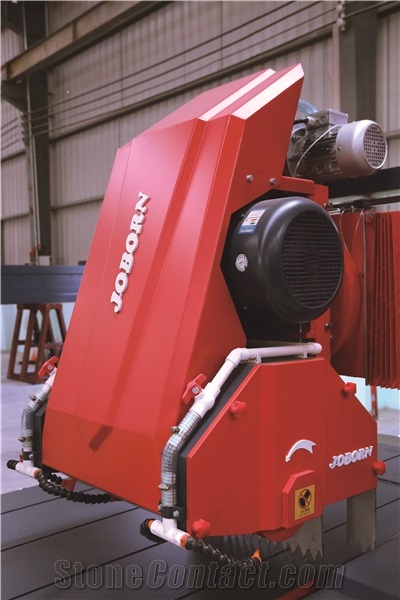

  • cutter

    cutter

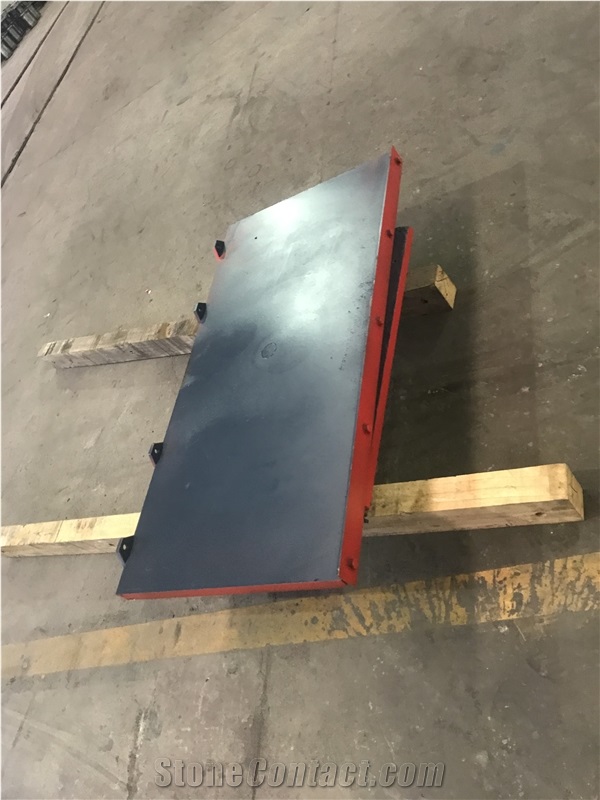

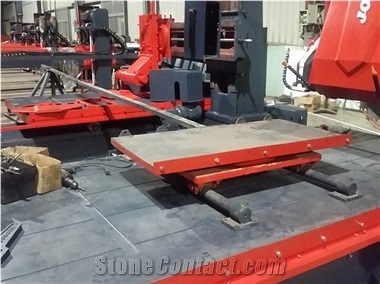

  • feed table

    feed table

Consumables

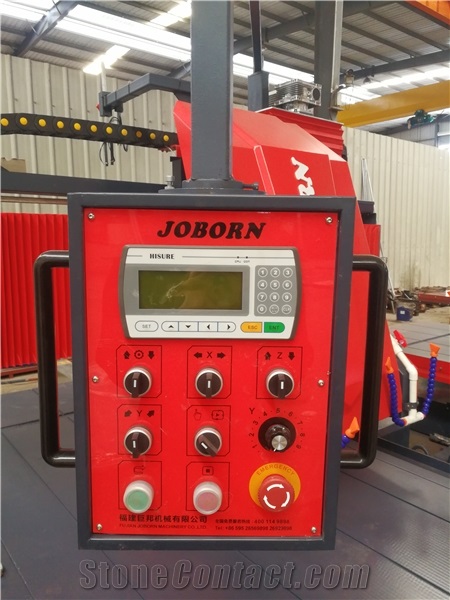

  • control box

    control box

Video
Operation Video Screen.PrimaryScreen.Bounds.Height
