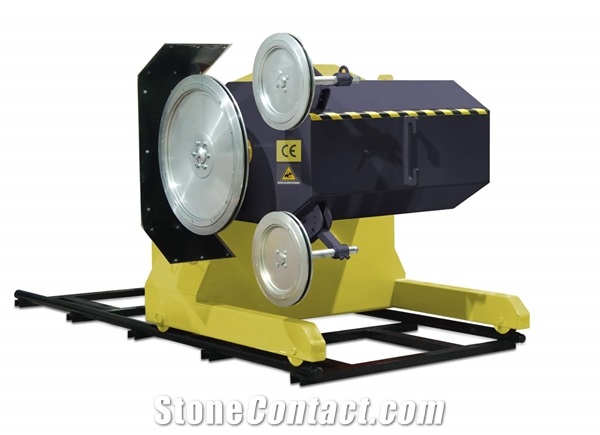

MONSTER SERIE Quarry Wire Saw Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Nov 10,2004
Main Product:
Quarry Machines, Wire Saw Machine, Chain Saw Machine, Drilling Machine, Mobile Drill Machines, Hydrobag|
Machinery Function Features

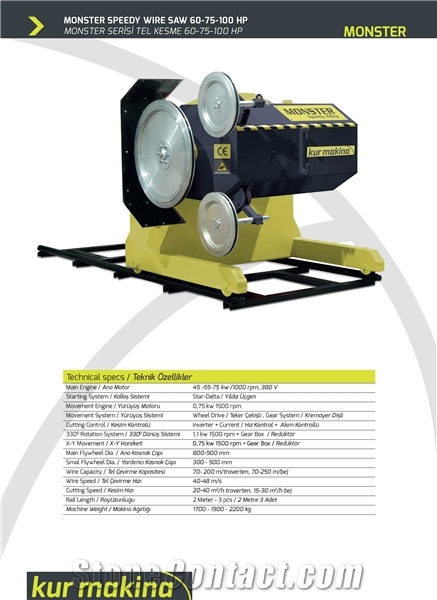

Technical specs /
Main Engine = 45 -55-75 kw /1000 rpm, 380 V
Starting System = Star-Delta / Inverter / Softstarter
Movement Engine = 0,75 kw 1500 rpm
Movement System = Wheel Drive , Gear System
Cutting Control = Inverter + PLC
3300 Rotation System = 1,1 kw 1500 rpm + Gear Box
X-Y Movement = 0,75 kw 1500 rpm + Gear Box
Main Flywheel Dia. = 800-900 mm
Smal Flywheel Dia. = 300 - 500 mm
Wire Capacity = 70- 200 m/travertine, 70-250 m/beige
Wire Speed = 0-48 m/s
Cutting Speed = 20-40 m2/h travertine, 15-30 m2/h beige
Rail Length = 2 Meter - 3 pcs
Machine Weight = 1700 - 1900 - 2200 kg
Technical Data
Parameters |
Unit |
MONSTER |
Total Weight |
Kg |
1700 - 1900 - 2200 |
Feed Motors Power |
kw |
0,75 kw 1500 rpm |
3300 Rotation System Power |
kW |
1,1 kw 1500 rpm + Gear Box |
Power Supply |
V/Hz |
380 |
Length of rails |
m |
2 Meter - 3 pcs |
Cutting Efficiency |
m2/h |
20-40 travertine, 15-30 beige marble |
Main Motor Power |
kw |
45-55-75 1000 rpm |
Main Pulley Revolutions |
r/min |
1000 |
Wire Saw Speed |
m/s |
0-48 |
Main Flywheel Diameter |
mm |
800-900 |
X-Y Movement power |
kW |
0,75 kw 1500 rpm + Gear Box |
Guide Pulley Diameter |
mm |
300 - 500 |
