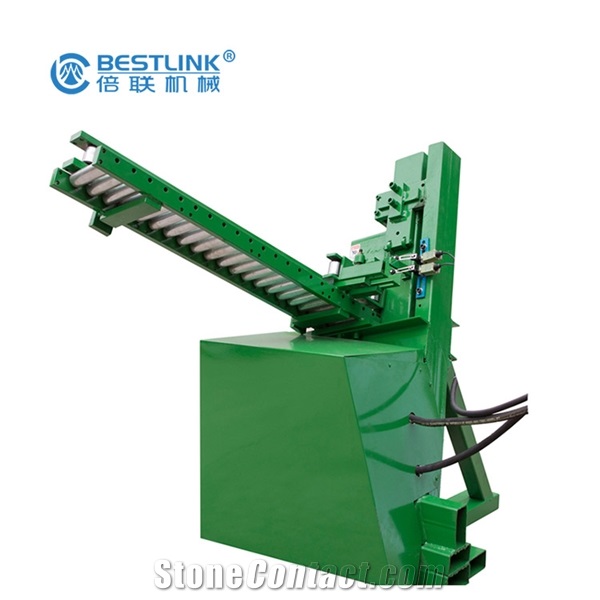

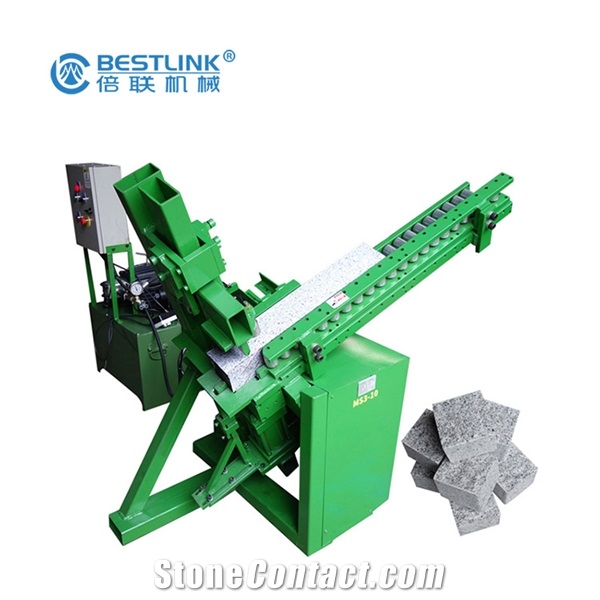

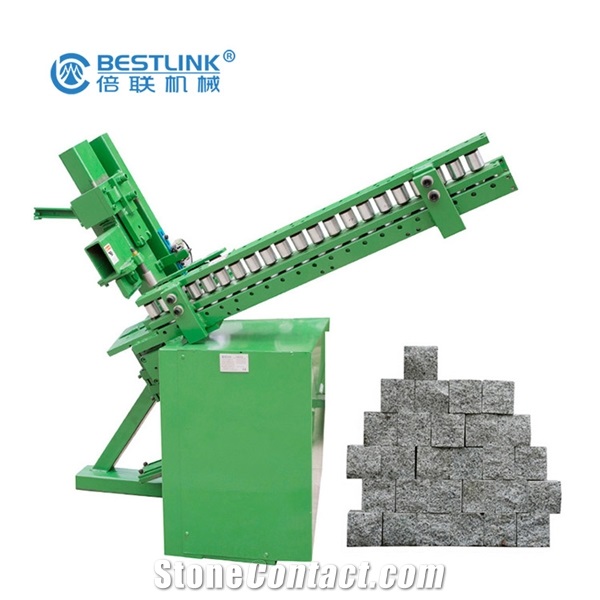

Cube20c Gravity Feeding Stone Brick Paver Splitting Machine
FOB Price:$4000-6000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features
CUBE20C Gravity Feeding Stone Brick Paver Splitting Machine
Automatic feeding and cutting, work fast, for producing stone brick, stone paver, mosaic paver.
Model No. CUBE20C
Splitting force (tons) 20
Power supply (kw) 5
Max.splitting width (mm) 150
Max.splitting height (mm) 150
Hydraulic pressure(Mpa) 20
hydraulic oil flux (L/min.) 31
Oil Tank (L) 100
Overall size (mm) 1600*1000*1300
Net weight (kg) 550
Aplication Stone guilotine,for splitting long stone strips into rustic finish wall stone,bricks, gravity feeding,automatic
Technical Data
Parameters |
Unit |
Cube-20C |
Max. working height |
mm |
150 |
Hydraulic pressure |
MpA |
20 |
Flow rate |
L/min |
31 |
Max. working width |
mm |
150 |
Approximate weight |
Kg |
550 |
Machine height (H) |
mm |
1000 |
Machine length (L) |
mm |
1600 |
Oil tank capacity |
L |
100 |
Main Motor Power |
kw |
5 |
Max. Pressure |
tons |
20 |
Machine width (W) |
mm |
1300 |
Processed Stone Photos

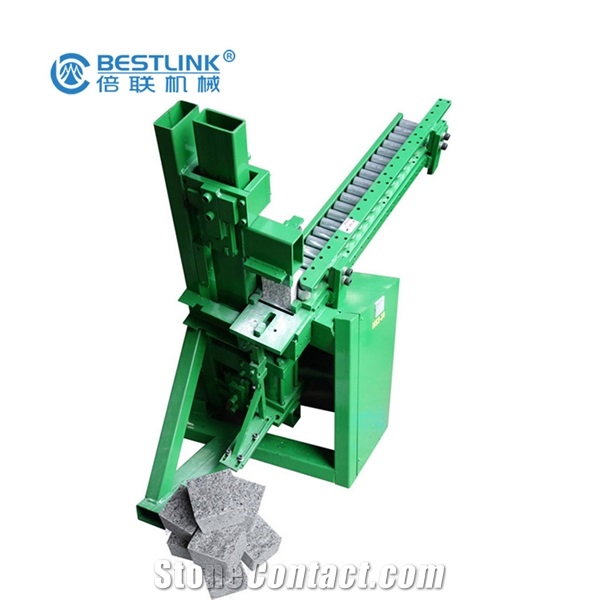

Components
Consumables
-
blade
