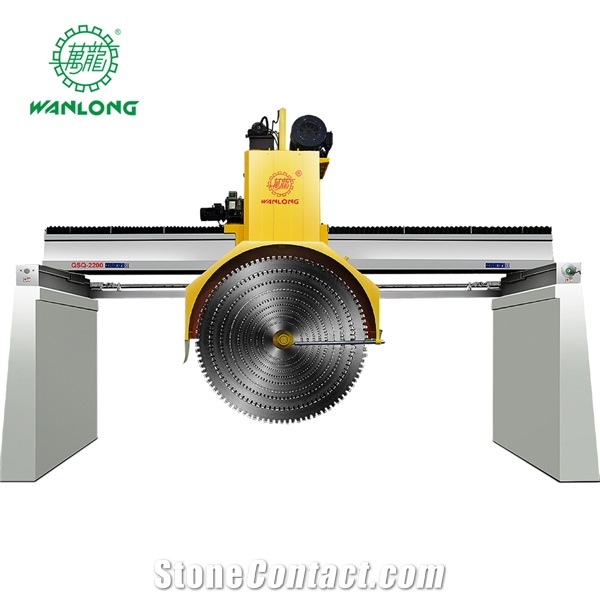

QSQ-2200 Wanlong Stone Bridge Type Multi Blade Block Cutting Machine
FOB Price:$29000-35000
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
40 days since the date to confirm the deposit.
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
You may also like
Machinery Function Features
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
The trolley is not necessary when cutting.
You can lie the block on the ground, and the processing is smooth, reliable and no shaking. You can also cutting several blocks of different sizes together at the same time.
Owing to the special design, the function of slab slicing is achieved by the crossbeam movement on the side beams.
This is totally different from other machines on which the slab slicing is by trolley feeding. There precise cutting and less maintenance are available by this machine.
Feeding trolley with rails is available upon request.

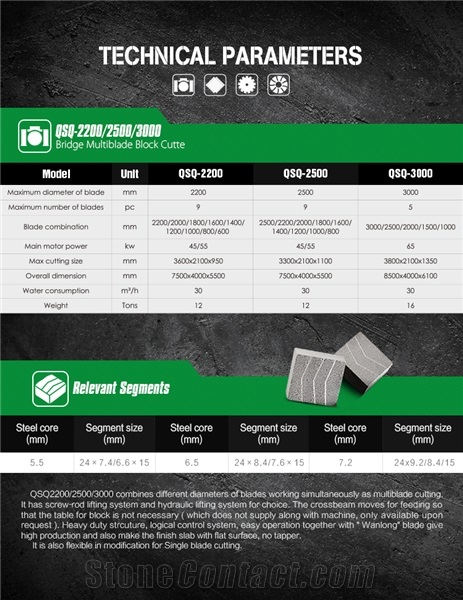

Technical Data
Parameters |
Unit |
QSQ-2200 |
QSQ-2500 |
QSQ-3000 |
Maximum block width |
mm |
2100 |
2100 |
2100 |
Trolley carrying discs power |
kw |
15 |
15 |
15 |
Maximum block height |
mm |
950 |
1100 |
1350 |
Machine length(front) |
mm |
3600 |
3800 |
3800 |
Machine width |
mm |
4350 |
4350 |
5150 |
Installed power |
kw |
45/55 |
45/55 |
37/65 |
Maximum block length |
mm |
3600 |
3800 |
3800 |
Vertical disc diameter |
mm |
2200,2000,1800,1600,1400,1200,1000,800,600 |
2500,2200,2000,1800,1600,1400,1200,1000,800 |
3000,2500,2000,1500,1000 |
Approximate Weight |
Kg |
12000 |
13000 |
14000 |
Disch vertical stroke ( Z axis) |
mm |
1400 |
1400 |
1400 |
Machine height |
mm |
4350 |
4350 |
5150 |
Cooling water (1.5 bar pressure) |
m3/h |
30 |
30 |
30 |

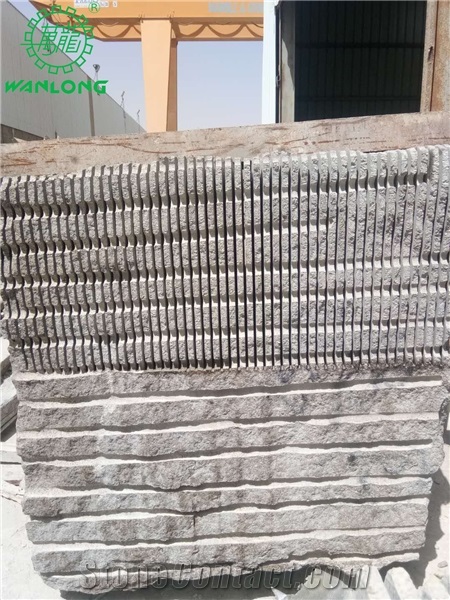

Processed Stone Photos
-
stone slabs

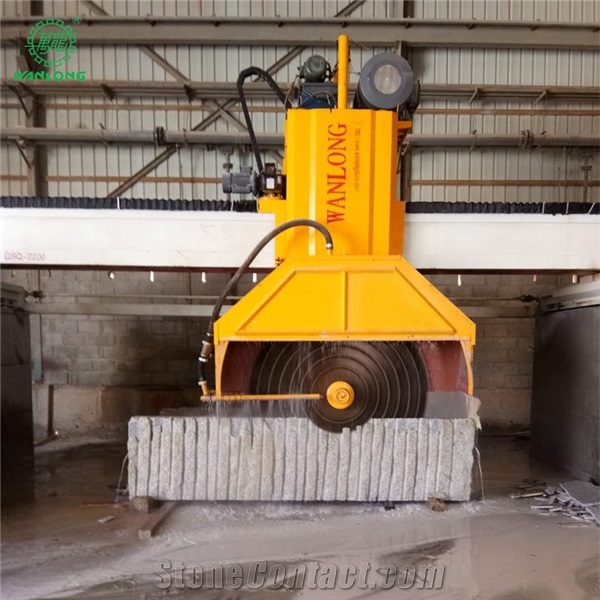

Components
-
main machine

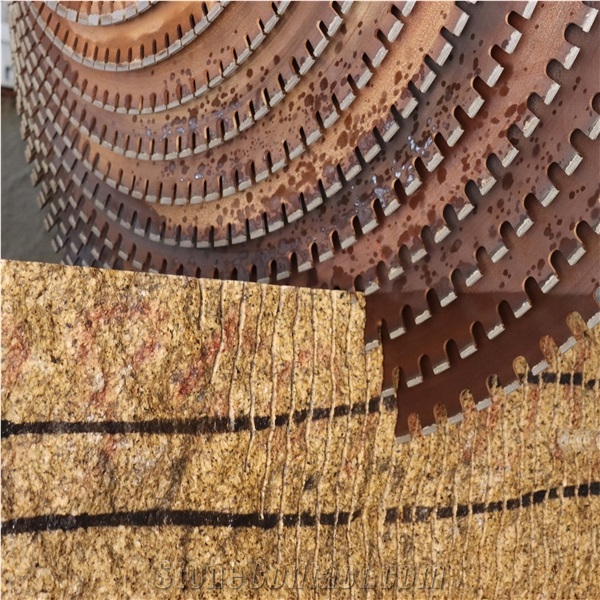

Consumables
-
saw blades
diamond segments
Customer Case
Uzbekistan
2018
Video
Install Video

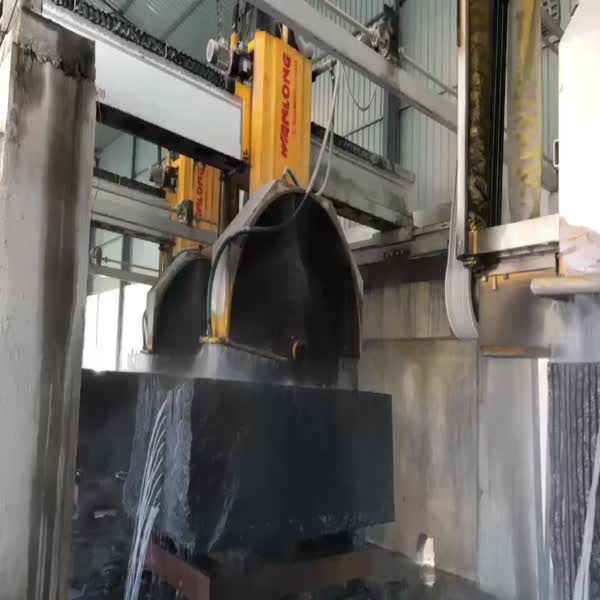

Operation Video
Screen.PrimaryScreen.Bounds.Height
