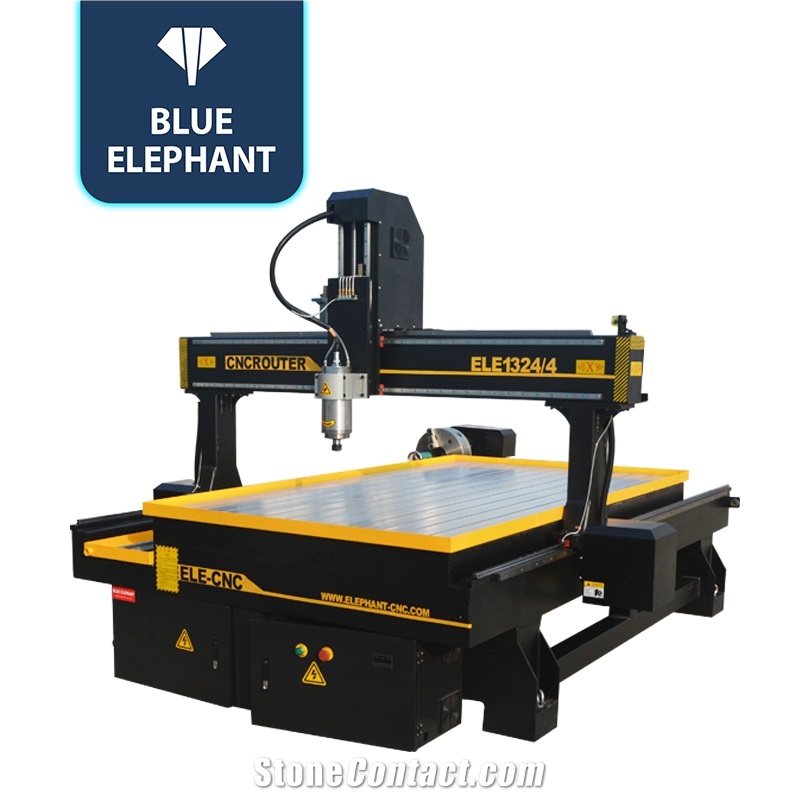

Affordable 1324 Portable Stone Engraving Machine For Marble Carving

Name: Affordable 1324 Portable Stone Engraving Machine For Marble Carving
Brand: Blue Elephant CNC Machinery
SKU: 3416
Price: 6000 USD
Availability: InStock

FOB Price:€6000-9000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25-30 working days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Trade Terms

Port: Qingdao- China

Delivery Details: FOB,CIF,EXW,DDU

Payment :

Supplier

Blue Elephant CNC Machinery

Blue Elephant

China level 5YR

Eatablished :Apr 03,2013

Main Product:

4 Axis Bridge Saw, 5 Axis Bridge Saw, Stone Engraving Machine, CNC Machining Center, 6 Axis Robotic|

Contact supplier

Start Order

You may also like

Stone Engraving Machine

Portable 1228 CNC Engraving Machine With Horizontal Saw Spindle

Stone Carving, Stone Engraving Machine

Stone Tombstone Engraving Machine TEM-1018

High-Speed Stone CNC Engraving Machine

Product Detail
Company Profile

Overview

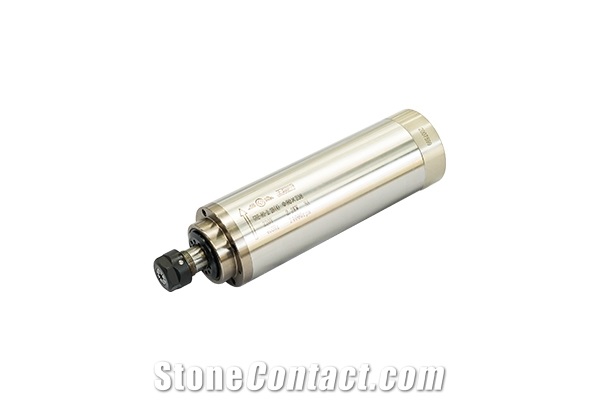

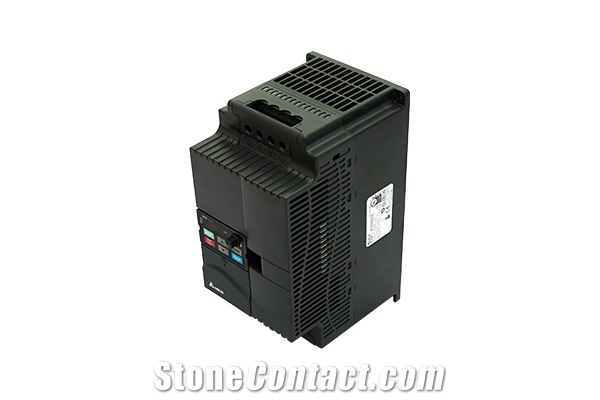

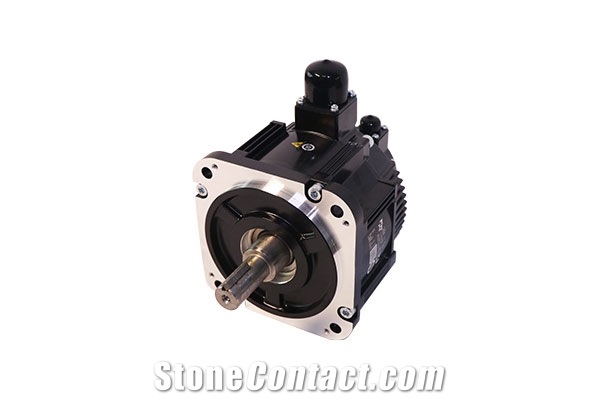

Components
Trade Terms

Machinery Function Features

This is one of the typical features of stone CNC router. Compared with other stone CNC router, this machine was designed with a rotary device on one side of machine, it is very suitable for making cylinder. 1. With heavy duty frame which is made of thicker and bigger welded steel tube, it is stronger and more durable. 2. Be equipped with a 200 mm rotary on one side of machine, it is suitable for making cylinders. 3. DSP A18 control system supports 4 axis CNC router and is very convenient for operation. 4. All components are imported from international famous brands, which greatly extends the service life of the machine.

Technical Data

Parameters	Unit	ELE-1324
Approx. Weight	Kg	1500

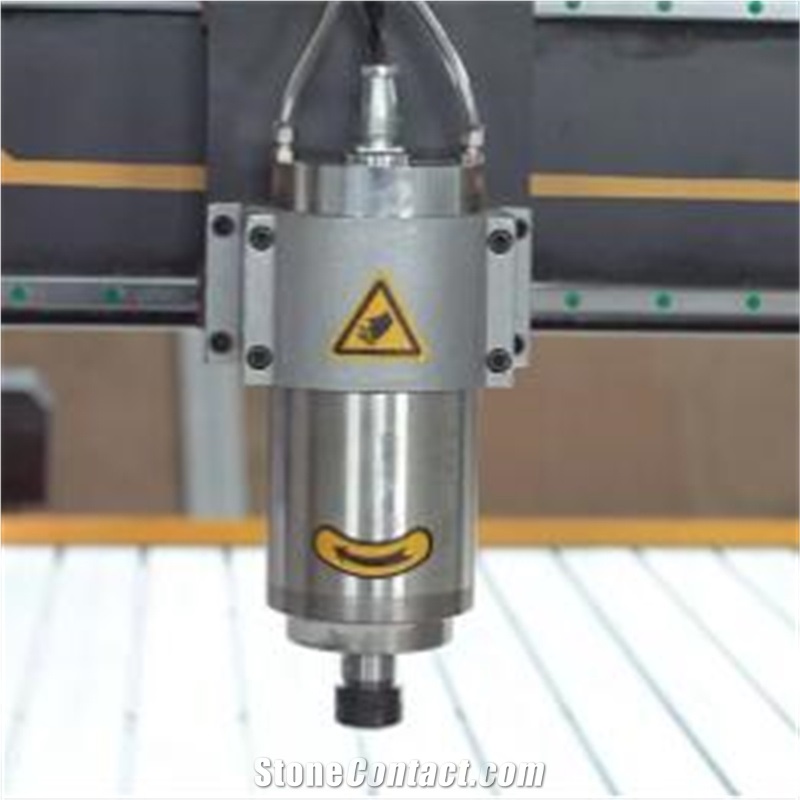

Main spindle speed	r/min	0-24000RPM
Machine overall length	mm	3700
Max. processing length	mm	2400
Control System		DSP A18 Control System
Machine overall height	mm	1850
Total power	kw	5.5
Max. working speed	m/min	25000
Number of engraving head	nr	1
Max. processing thickness	mm	DSP A18 Control System
Max. Processing Width	mm	1300
Max. traveling speed	m/min	33000
Min. Processing Width	mm	x
Repeated positioning/Ball screw precision	mm	±0.03
Main spindle motor power	kw	5.5
Machine overall width	mm	2140

Software

Command Language:G Code

Computer Interface：USB

Software Compatibility:Type3/UcancameV9 Software, (Option: Artcam Software)

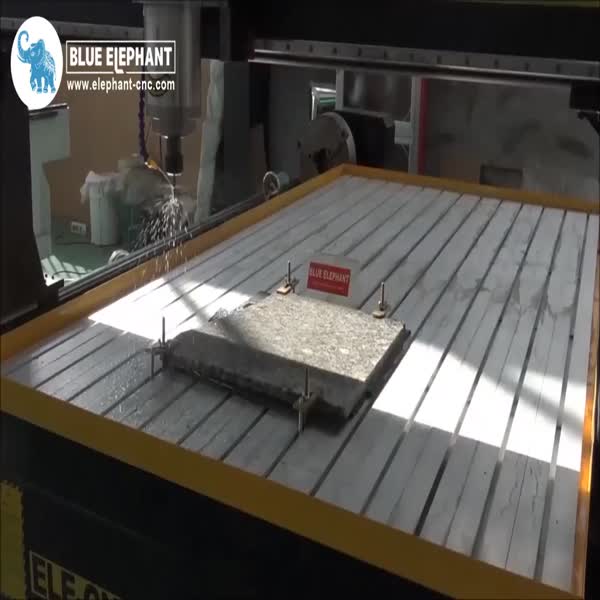

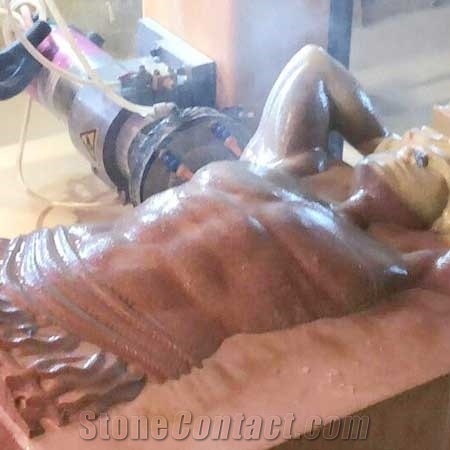

Work Example

Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.
