Pedrini M845LV Chamfering -Grooving Machine for marble and granite
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Stone Grooving Machine
Usage:
Granite, Marble, Limestone, Basalt, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Gs 121 Open Frame Gang Saw, M945 Bridge Saw, B220mv Slabs Polishing Machine For Marble, Wire Saw Machines, Gang Saw Machines, Giant Disc Saw, Bridge Saw, Polishing Line, Slab Scanner, Resin Line, Trimming Machine, Cruss Cutting Machine, Chamfering Machine|
Machinery Function Features

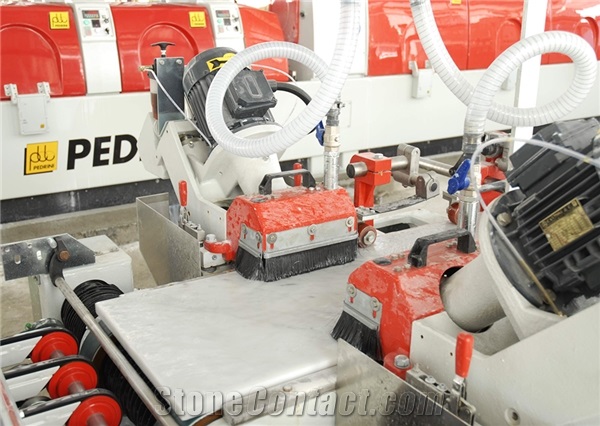

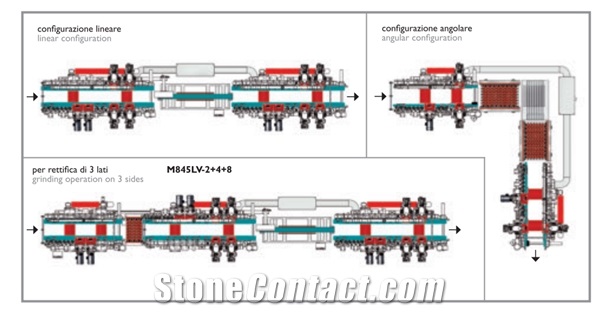

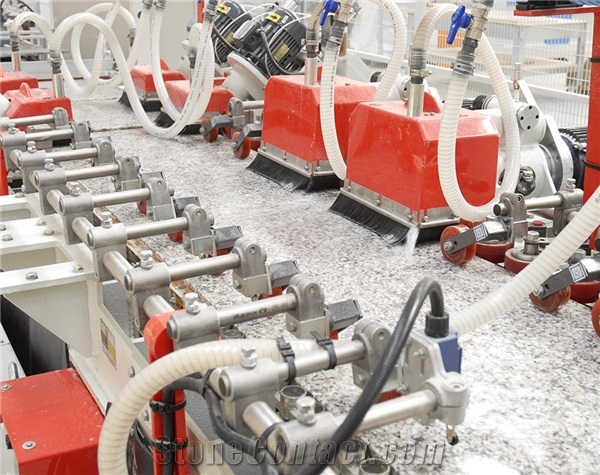

Machine that performs tiles and/or marble and granite elements peripheral finishing through the gauging of the two consecutive sides by means of diamond tools and the chamfering of the four upper edges by means of 45° inclined abrasive tools. The machine comprises two operating units interspersed with a 90° rotator/deviator and it is available with a different number of spindles varying according to the processed material.
Technical Data
Parameters |
Unit |
M845LV2+4 |
M845LV4+8 |
M845LY4+8 |
M845LV-2+4+8 |
Tool holder flange diameter |
mm |
300 |
300 |
300 |
300 |
Chamfering head motor |
kw |
1.1 |
1.1 |
1.1 |
1.1 |
Machine overall width |
mm |
2150 |
2150 |
2700 |
2150 |
Total power |
kw |
15 |
26 |
27 |
32 |
Water consumption |
m3/h |
70 |
140 |
140 |
180 |
Min. Processing Width |
mm |
300 |
300 |
300 |
300 |
Conveyor system motor |
kw |
1.1 |
1.1 |
1.1 |
1.1 |
Calibrating motor power |
kw |
3 |
3 |
3 |
3 |
Machine overall height |
mm |
1600 |
1600 |
1600 |
1750 |
Max. Processing Width |
mm |
650 |
650 |
650 |
650 |
Abrasive diameter |
mm |
130 |
130 |
130 |
130 |
Max. processing length |
mm |
650 |
650 |
650 |
650 |
Min. Cooling water pressure |
bar |
1.5 |
1.5 |
1.5 |
1.5 |
Conveyor belt speed |
m/min |
0.5/8 |
0.5/8 |
0.5/8 |
0.5/8 |
Machine overall length |
mm |
7850 |
9700 |
11360 |
12850 |
Chamfering heads |
nr |
4 |
8 |
8 |
8 |
Calibarting heads |
nr |
2 |
4 |
4 |
6 |
Approx. Weight |
Kg |
5000 |
5700 |
7000 |
8500 |
Max processing thickness |
mm |
8 min/35 max |
8 min/35 max |
8 min/35 max |
8 min/35 max |
