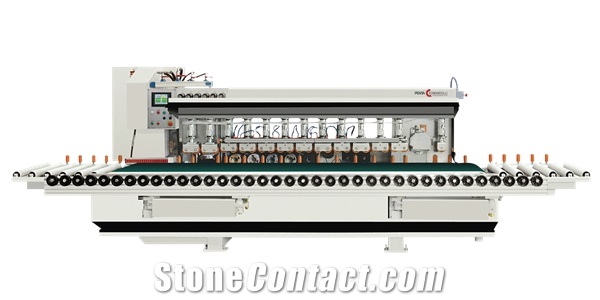

Comandulli PENTA Automatic edge polishing machine- edge profiling machine

So much personality locked up in a compact design Automatic edge polishing machine able to perform all the finishing operations on marble and granite slabs used in the building field, furnishings and monuments. It performs gauging, straight edge, bevels, lower and upper groove through fast and simple procedures. Features THE EXCLUSIVE FEATURES OF A COMANDULLI MACHINE PENTA Steel structure, electrowelded, fully worked by milling machine. All our machines are protected against corrosion through a modern treatment that follows different phases: sandblasting, metallization and painting The painted covers are subject to cataphoresis treatment, cartes in stainless steel. Conveyor belt leaning on a stainless steel plate, driven by specific grooves. Slab locking by pneumatic pistons. Floating edge polishing unit. Electrical spindle working. Possibility of performing straight edges on slabs with different thickness ang shape st the same time. Possibility of partial workings. Water collection tank. Colour touch screen. Possibility to set the belt speed from control panel. Laser to detect the position of the pieces on the belt and their length. EQUIPMENTS Gauging/calibrator tilting to 90°. Floating spindles for the edge (n. 5). Spindles for the bevels (n. 4) Spindle for lower / upper groove tilting to 45°. Extendible bar to support bigger pieces. Rollers for material loading/unloading. OPTIONS Possibility to make partial workings with the drip unit (vertical axis motorized and visualized on the screen) Possibility to polish narrow pieces (5 cm width) and samples (splash backs of 10 mm). N. 6 beveling spindles Possibility to polish slabs with minimum thickness 0,5 cm TMM group: lock device to realize perfect bevels NEW DYNAMIC/SMART BELT SPEED FUNCTION: machine equipped with special software that, during the automatic cycle, varies automatically the belt speed to reduce downtimes according to the kind working and the tools to be utilized.
