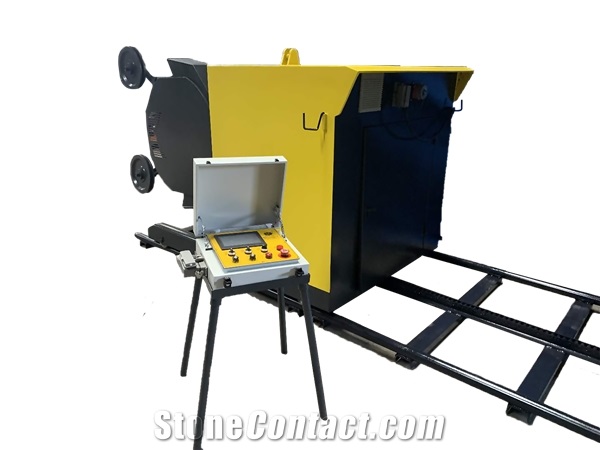

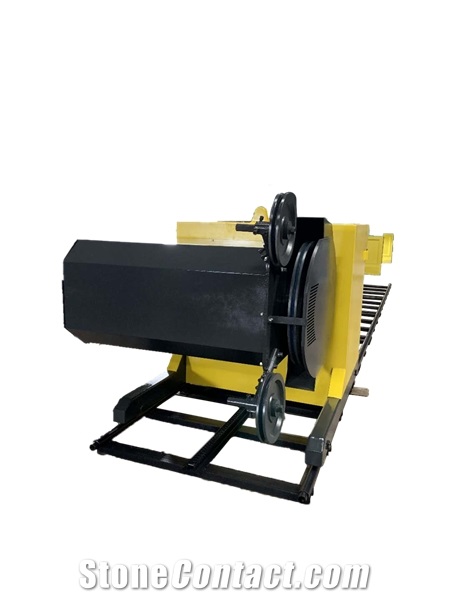

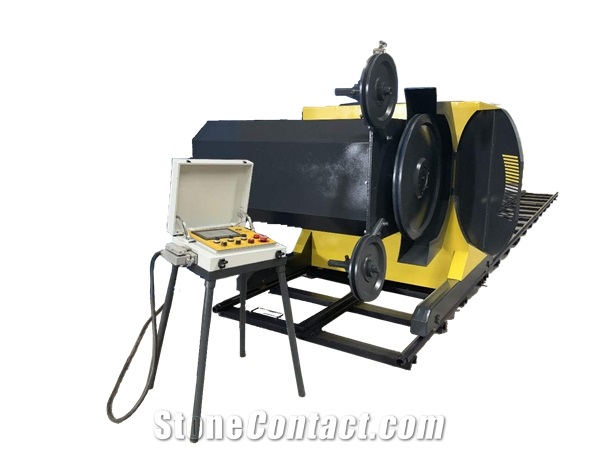

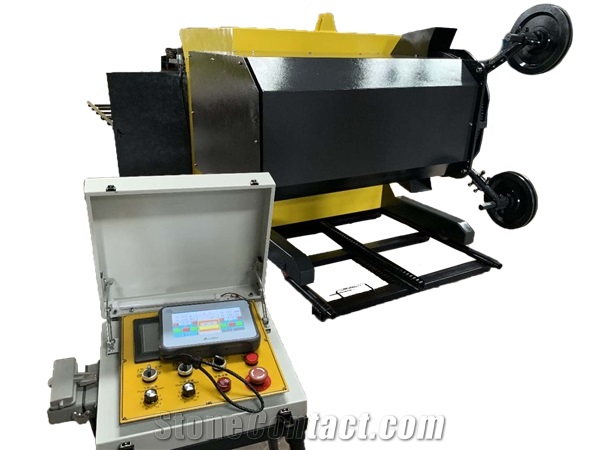

Quarry Wire Saw Machine
FOB Price:$15000-24864
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
within 3 weeks after order confirmed
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Universal Machinery Is A Professional Manufacturer And Exporter Of Stone Machinery，Diamond Tools, Stone Care Products, Concrete Cutting Equipment And Tools As Well As Various Importing And Exporting Stone Blocks And Finished Products. Customize Products Or Solutions Are Available Upon The Customers’ Request To Meet Their Satisfaction.|
Machinery Function Features
Diamond wire saw machine can be used for cutting various stone in quarry, such as marble, granite and sandstone etc. The wire speed controlled by inverter allows variation of the wire speed from 0 to 40m/sec.
Technical Data
Parameters |
Unit |
HQSJ-37A |
HQSJ-55A |
HQSJ-75A |
Motor Flywheel Unit Rotation |
° |
0-360 |
0-360 |
0-360 |
Adjustment Distance |
mm |
0-480 |
0-480 |
0-480 |
Main Flywheel Diameter |
mm |
800 |
800 |
800 |
Feeding Speed/Fixed Speed |
m/s |
0.76 |
0.76 |
0.76 |
Max. Wire Length |
m |
20-80 |
20-120 |
20-120 |
Power Supply |
V/Hz |
380V/ 50HZ |
380V/ 50HZ |
380V/ 50HZ |
Length of rails |
m |
2m*3 |
2m*4 |
2m*5 |
Max. cutting width |
mm |
1.8 |
2 |
2.2 |
Main Pulley Revolutions |
r/min |
0-970 |
0-970 |
0-970 |
Main Motor Power |
kw |
37/50hp |
55/75hp |
75/100hp |
Cutting Distance |
mm |
20-45 |
20-45 |
20-45 |
Wire Saw Speed |
m/s |
0-30 |
0-30 |
0-30 |
Total Weight |
Kg |
2500 |
2900 |
3200 |
Dimension LxWxH |
mm |
1800*1270*1300 |
1800*1370*1300 |
2200*1450*1500 |
Water requirement |
m3/h |
10 |
10 |
10 |
Cutting Efficiency |
m2/h |
6-15 |
6-15 |
6-15 |
Feed Motors Power |
kw |
0.75 |
0.75 |
0.75 |
Guide Pulley Diameter |
mm |
380 |
380 |
380 |

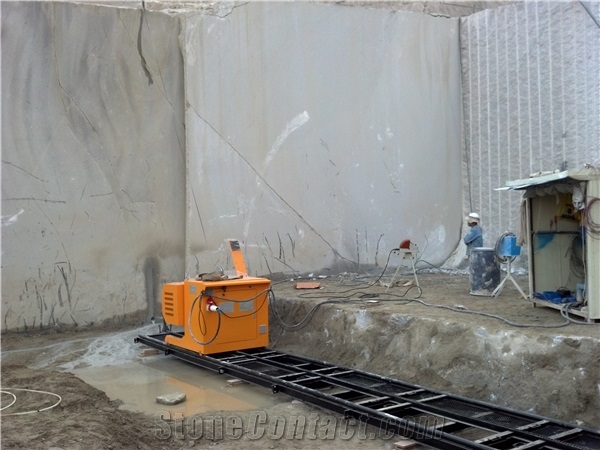

Processed Stone Photos
Components
-

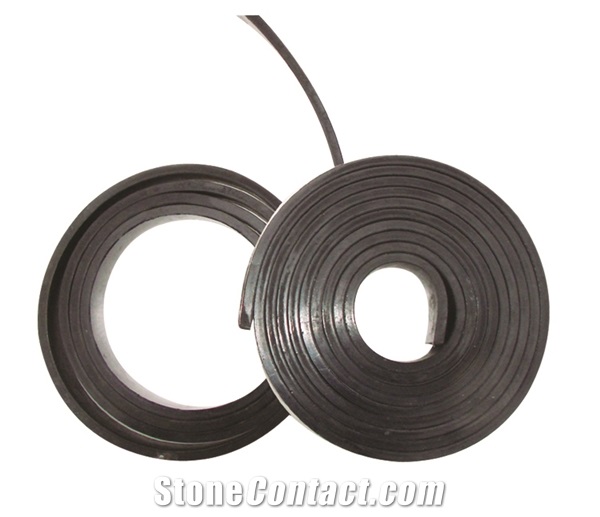

Rubber belt
-

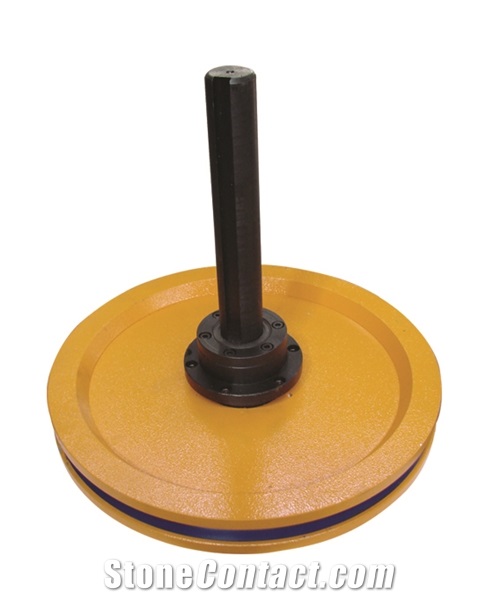

Small Flywheel Size ø380
-

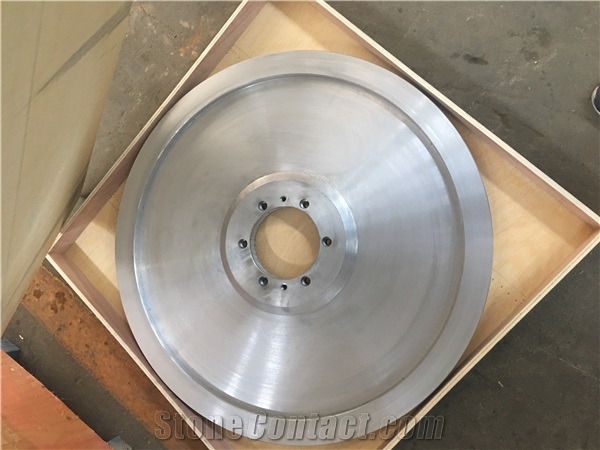

Big Flywheel Size ø800
Consumables
-
Rubber belt
