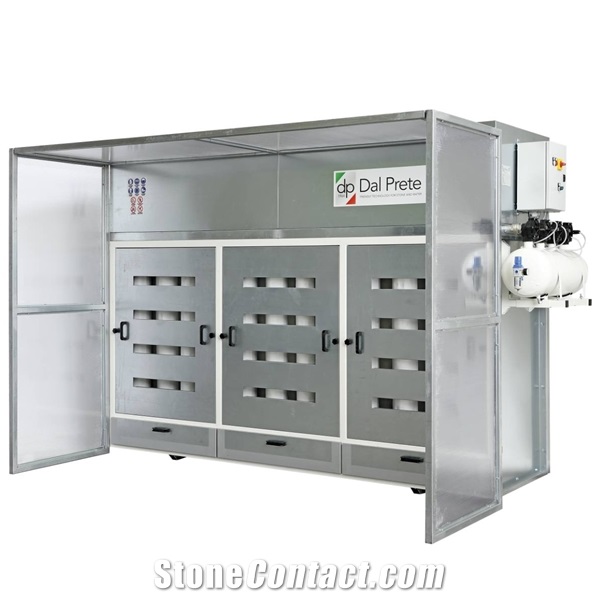

Dal Prete DRY Suction Wall Dry System Air Purifier
FOB Price:
Type:
Stone Factory MachinesStone Factory Cleaning EquipmentsAir Dust Collector
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Machinery Function Features

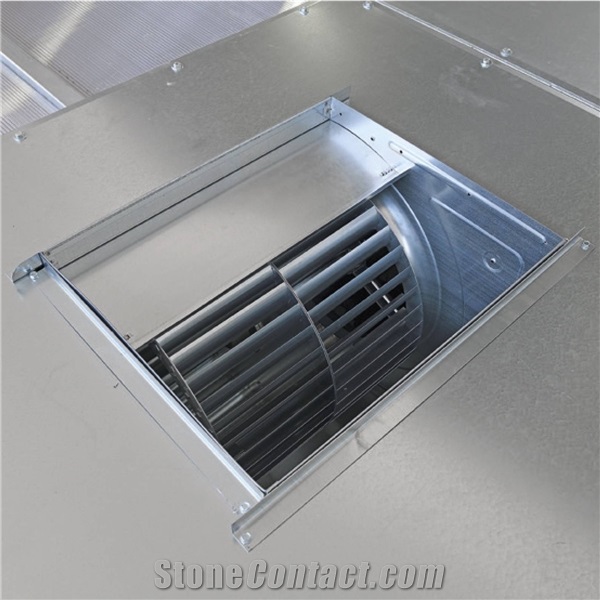

The DRY model wall air purifier works in a simple way: the air charged with dust, sucked in by the internal fans, passes through batteries of sock filters that retain the dust and drop it into the drawers below.
Who we designed it for:
> If you want to reduce the presence of dust from dry processing.
> If you want to maintain high air quality in a moisture-free working environment.
Features and advantages:
- Extremely intuitive and simple maintenance: Save time and reduce human error.

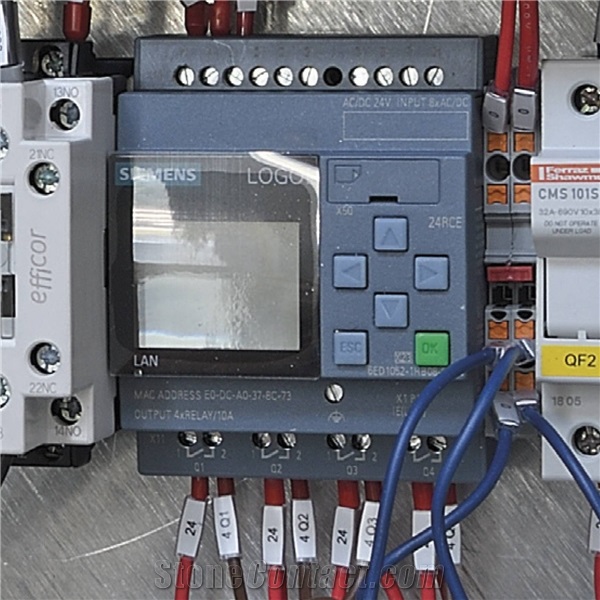

- It has an automatic cleaning cycle: Operator maneuvers reduced to a minimum.
- No water is used: Humidity free environment.
- High level of air filtration: Less risk of silicosis, safeguarding the health of the operators.
- Galvanized sheet metal structure.
- Air filtration efficiency 99.0%.
- Purifier noise 69 dB.
Models:
*DRY 2 m: 2.000 x 2.350 x 1.000 mm / Nr. 1 Fan / 3 HP / 9.000 m3/hour
*DRY 3 m: 3.000 x 2.350 x 1.000 mm / Nr. 1 Fan / 3 HP / 11.000 m3/hour
*DRY 4 m: 4.000 x 2.350 x 1.000 mm / Nr. 2 Fans / 6 HP / 22.000 m3/hour
*DRY 5 m: 5.000 x 2.350 x 1.000 mm / Nr. 2 Fans / 6 HP / 26.000 m3/hour
*DRY 6 m: 6.000 x 2.350 x 1.000 mm / Nr. 2 Fans / 6 HP / 33.000 m3/hour
Customizations:
*Length and width.
*Number of fans.
*Suction from both sides.
Accessories:
*Plenum.
*External box.
*Side extensions.
Technical Data
Parameters |
Unit |
DRY 2 m |
DRY 3 m |
DRY 4 m |
DRY 5 m |
DRY 6 m |
Height |
mm |
2350 |
2350 |
2350 |
2350 |
2350 |
Noise Level |
dB |
69 |
69 |
69 |
69 |
69 |
Total Length |
mm |
2000 |
3000 |
4000 |
5000 |
6000 |
Total air Suction/Aspiration |
m3/h |
9.000 |
11.000 |
22.000 |
26.000 |
33.000 |
Width |
mm |
1000 |
1000 |
1000 |
1000 |
1000 |
Total Power |
kw |
3 |
3 |
6 |
6 |
6 |
No. of Fans/Vacuum Cleaners |
1 |
1 |
2 |
2 |
2 |
|
Abatement-Dust Effeciency |
% |
99.0 |
99.0 |
99.0 |
99.0 |
99.0 |
