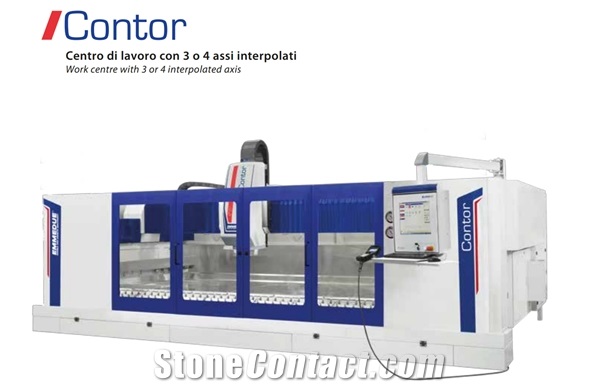

Emmedue Contor 260/360/400 CNC Work Center with 3/4 interpolated axes

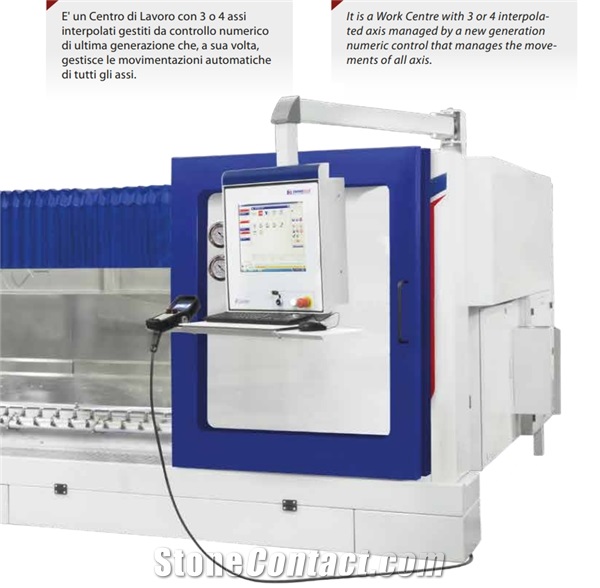

Work centre with 3/4 interpolated axes managed by new generation numeric control that manages the movements of all axis. The high speed movements of the X, Y and Z axis, are obtained with brushless motors and helicoidal racks to guarantee maximum precision, the movement is performed by recirculating roller on linear guideways automatically lubricated. The movement of the vertical Z axis is performed by a recirculating ballscrew, the translational motion of the beam is performed by a motor positioned between two pinions which scroll on a precision racks with helicoidal teeth. The structure of the vertical carriage in the form of a cage, is performed in electro welded steel which ensures the machine more stability and rigidity, minimizing vibrations generated during processing.
