VICTORY Head Rotation bridge saw
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone
After-Sale
Warranty:12 Months
You may also like
Machinery Function Features

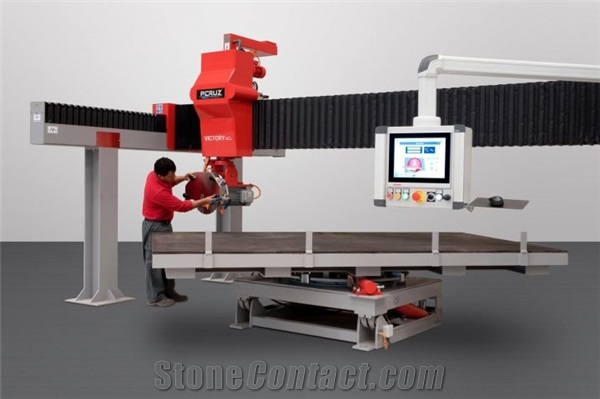

VICTORY Head Rotation bridge saw is supplemented with an automatic system of head rotation to 0° and 90° positions. Coupled with the head’s ability to move simultaneously in 3 axes, this enables the machine to cut slabs with high speed and increases productivity by more than 30% as compared to conventional bridge saws.
With automatic head tilting, 45° miter cutting can be performed with a great speed and simplicity. Due to head rotation and smart programming, some projects such as floorings, can be performed automatically. Automatic setting of tool rotation speed depending on the type of the material allows reducing tool wearing and power consumption.
All this makes VICTORY Head Rotation a very practical solution which offers high productivity and saves space.
Technical Data
Parameters |
Unit |
VICTORY Head Rotation |
Hydraulic station motor power |
kw |
1.5 |
Machine width |
mm |
3730 |
Voltage / Frequency |
V / Hz |
220 or 480 / 60 |
Speed control |
kw |
15 |
Machine height |
mm |
2300 |
Machine weight |
kg |
5200 |
X Axis Stroke |
mm |
3300 |
Blade diameter |
mm |
350-400 |
Z Axis Stroke |
mm |
90 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
20-30 |
Y axis Stroke |
mm |
2000 |
Main motor power |
kw |
15 |
Machine length |
mm |
5800 |
