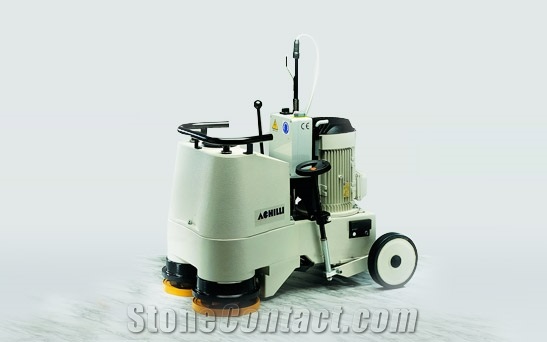

MAX BT 3-Phase 2 Heads Floor grinding and polishing machine for marble, terrazzo, concrete

Name: MAX BT 3-Phase 2 Heads Floor grinding and polishing machine for marble, terrazzo, concrete
Brand: Achilli s.r.l.
SKU: 3619
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Maintenance MachinesFloor Grinding, Polishing Machine

Usage: Marble, Limestone, Artificial Stone, Sandstone

After-Sale

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Achilli s.r.l.

Achilli

Italy

Eatablished :Dec 31,1949

Main Product:

Floor Grinder, Compact Bridge Saw With Turning Head, Mitre Saw Machines, Compact Bridge Saw With Mobile Bridge, Tile Cutting Machines, Bridge Saw With Turning Table For Marble|

Contact supplier

Start Order

You may also like

Pneumatic Chipping Machine

JIN JIAN BRAND STONE AND PAVEMENT CHIPPING MACHINE

Vertika Grinding And Polishing Machine For Walls And Vertical Surfaces With Built-In Vacuum System

Klindex Ufo 290-330 Portable Floor Grinding & Polishing Machine

Marble and Mosaic Polishing Machine

Product Detail
Company Profile

Overview

Machinery Function Features

Floor grinding and polishing machine, three phase with 2 heads, ideal for large surfaces. Sturdy and compact structure suitable for marble, terrazzo, concrete and similar floors. ADVANTAGES MAX BT is designed to speed up and optimize the grinding of large surfaces: 2 heads to improve machine output. Machine level adjustment by handwheel. Machine lift by manual hydraulic pump.

Technical Data

Parameters	Unit	MAX BT
Water tank capacity	lt	48
Motor rpm	rpm	960
Machine overall height	mm	1200
Machine overall length	mm	615
Motor power	kw	5.5
Ø Abrasive holding plate	mm	2 x 300
Approx. Weight	Kg	192-234
Plate rpm and peripheral speed		515 rpm – 485 m/min
Rated voltage/current	V/A	400 V (230 V trifase su richiesta)
Machine overall width	mm	1085
