Automatic bench saw TFR A Motorized Stone Saw for Large Slabs
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Artificial Stone, Basalt
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1949
Main Product:
Floor Grinder, Compact Bridge Saw With Turning Head, Mitre Saw Machines, Compact Bridge Saw With Mobile Bridge, Tile Cutting Machines, Bridge Saw With Turning Table For Marble|
Machinery Function Features

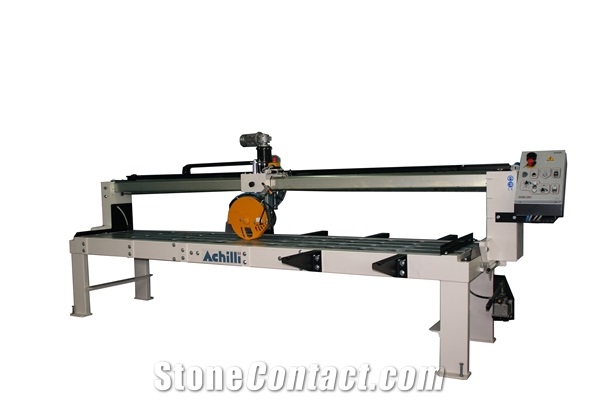

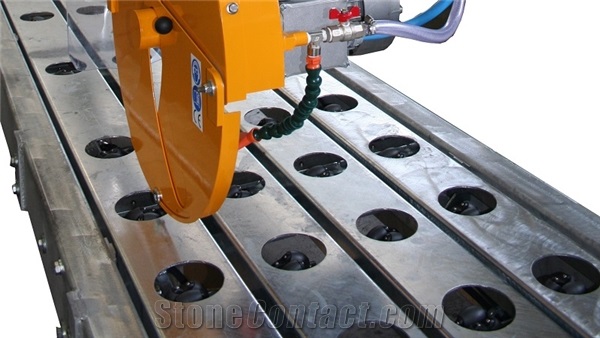

TFR-A is born from the specific needs of our customers. This motorized bridge saw combines the essentiality of a basic saw with the sturdiness of a massive frame allowing to feature pop-up rollers on the worktable for easy slab positioning.
ADVANTAGES
TFR-A is a sturdy and compact bridge saw ideal for cutting large stone slabs:
Customizable according to customer requirements;
Maximum cutting precision guaranteed by a special beam design;
Suitable for ceramic and sintered material slabs;
Massive frame for processing large stone slabs;
Motorized head feed with variable speed in both directions;
Also available with manual head feed (TFR-C).
Technical Data
Parameters |
Unit |
TFR - A |
TFR-A HT |
Blade diameter |
mm |
250-300-350 |
400-450-500 |
Main motor rotation speed |
rpm |
2800 / 50Hz – 3400 / 60Hz |
1400 / 50Hz – 1700 / 60Hz |
Blade bore size |
mm |
25.4 |
25.4 |
Main motor power |
kw |
5kW = 7HP (3ph.) |
4kW = 5.5HP (3ph.) |
Working table dimensions(L×W) |
mm |
1510x865 |
1510x865 |
Blade tilting angle |
° |
45 / 90 |
45 / 90 |
Standard voltage/ frequency |
V/Hz |
400V-50/60Hz /230V-60Hz 3ph. |
400V-50/60Hz /230V-60Hz 3ph. |
Useful cut |
mm |
3300 |
3300 |
