Flow Waterjet- The Mach 100 Series
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Machinery Function Features
The Mach 100 Series
Start now

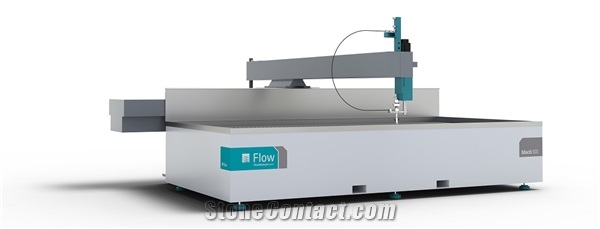

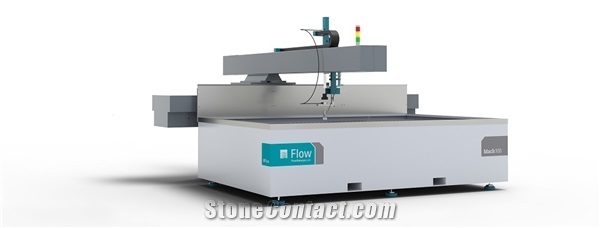

The Mach 100 is the essential waterjet that gives you the fundamental versatility of waterjet cutting with no frills. Engineered with the same components as Flow's premium cutting solutions, the Mach 100 features robust cutting capabilities and a programmable Z-axis for added flexibility. Everything you want, exactly what you need.
Pump Technology
Industry-leading Flow pump technology is fully integrated into the Mach 100 system.
HyPlex® Prime
4,150 bar [60,000 psi]
The highest pressure, most advanced direct drive pump available today, with pressures rated at 4,150 bar [60,000 psi].

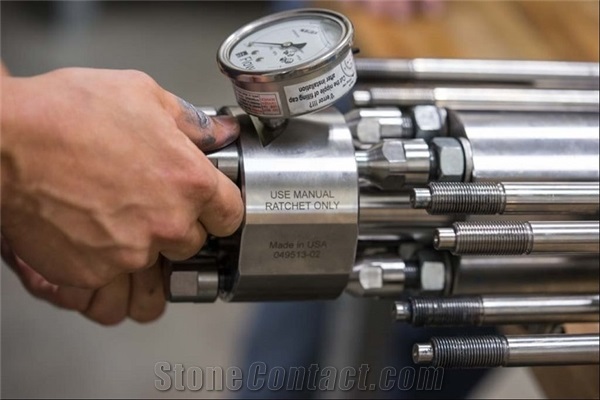

Intensifier
4,150 bar [60,000 PSI]
The longest lasting, lowest maintenance ultrahigh-pressure pump in the industry with continuous operating pressure at 4,150 bar [60,000 psi].
Technical Data
Parameters |
Unit |
Mach 100- 1313 |
Mach 100-3020 |
Mach 100-4020 |
Z-axes travel |
mm |
178 |
178 |
178 |
Table Size-Bridge/Base |
mm |
1300x1300 |
3000x2000 |
4000x2000 |
Linear Straightness Accuracy |
mm/m |
±0.13 |
±0.13 |
±0.13 |
Repeatability |
mm |
0.064 |
0.064 |
0.064 |
Intensifier pump pressure |
bar |
4,150 |
4,150 |
4,150 |
Waterjet pump power |
hp |
30 , 50 |
30 , 50 |
30 , 50 |
Intensifier pump power |
hp |
30 , 50 |
30 , 50 |
30 , 50 |
Rapid Traverse Maximum |
m/min |
10 |
10 |
10 |
Waterjet max pressure |
bar |
4,150 |
4,150 |
4,150 |
Software
Software Suites
Easy to use Flow software suites allow you to program a part quickly—any material, any thickness.
FlowPath™
Simply enter basic cutting parameters, such as material type, thickness, and desired edge finish, and FlowPath does the rest.
FlowXpert®
Elite software module that allows you to work more effectively in 3D, with less complexity.
FlowNest®
A powerful geometric nesting module that allows for small parts to be placed within larger parts.
FlowCut™
The control system for Flow waterjet systems that integrates the operation of the ultrahigh-pressure pump, cutting head, and XY cutting table.
