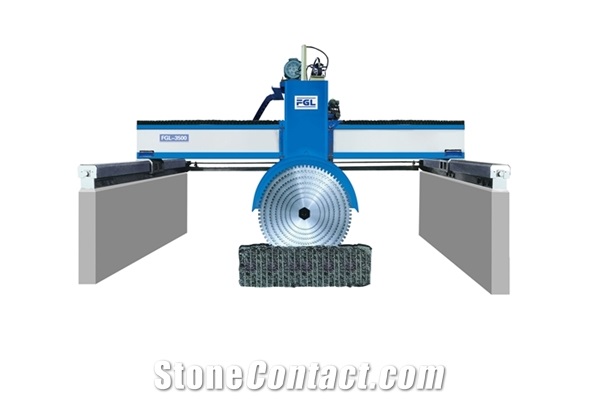

Bridge Block Cutting Machine

Name: Bridge Block Cutting Machine
Brand: Fujian Frugoli Machinery Development Co.,Ltd.
SKU: 3858
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine

Usage: Granite, Marble, Limestone, Onyx, Sandstone

After-Sale

Warranty:12 Months

Supplier

Fujian Frugoli Machinery Development Co.,Ltd.

Frugoli

China

Main Product:

Diamond Gang Saw For Marble Series, Automatic Polishing Line Series, Automatic Level Ovens Resin Line Etc.|

Contact supplier

Start Order

You may also like

Heavy Duty Bridge Type Medium Block Cutting Machine

SQC/MAX-1600-4D 4 Post Guide Combined Block Cutting Machine

JOBORN Giant Disc Bridge Type Block Cutting Machine

QQJ-2200/2500/3000 Multi Blade Block Cutting Granite Disc Bridge Saw

Complete Line For Curbstone Cutting And Chamfering

Product Detail
Company Profile

Overview

Technical Data

Parameters	Unit	FGL 2800	FGL 3200	FGL 3500	FGL 3600
Installed power	kw	42.2	50.2	50.2	50.2
Maximum block height	mm	2500	2500	3000	3000
Machine height	mm	2800	3000	3000	3500
Maximum block width	mm	2200	2700	2700	2700
Main motor power	kw	30/37	37/45	37/45	45/55
Maximum block length	mm	4300	4300	4300	4300
Slicing stroke	mm	2200	2200	2200	2200
Diameter of saw blade	mm	1600-2500	1600-2800	1600-3000	1600-3000
Saw the number	nr	1-12	1-12	1-12	1-12
Machine width	mm	3500	4000	4000	4200
Elevation travel of motor	mm	1300	1400	1400	1450
Machine length(front)	mm	7500	7500	7500	7500
Cut/return stroke ( X axis)	mm	4500	4500	4500	4500
